23800kg Hydraulic Crawler Dual Power Electrical Diesel Engine Wood Grabber Material Handling Equipment Supplier

23800kg Hydraulic Crawler Dual Power Electrical Diesel Engine Wood Grabber Material Handling Equipment Supplier
    • Enquiry Now!

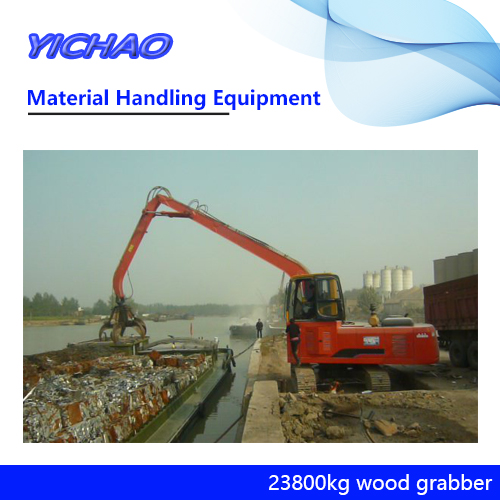

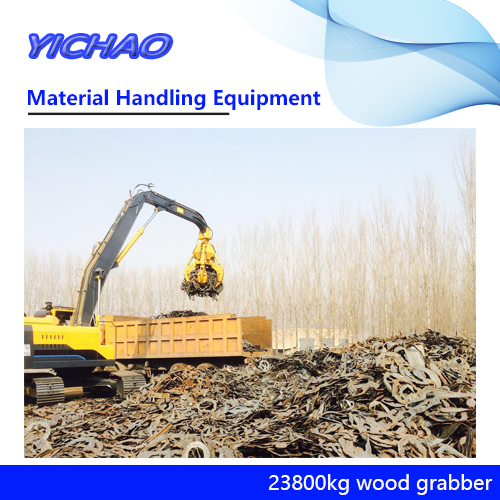

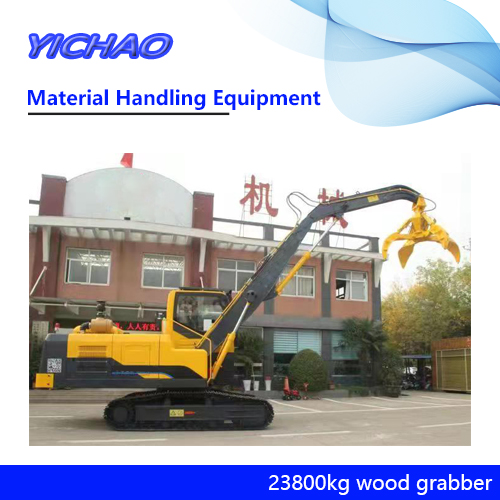

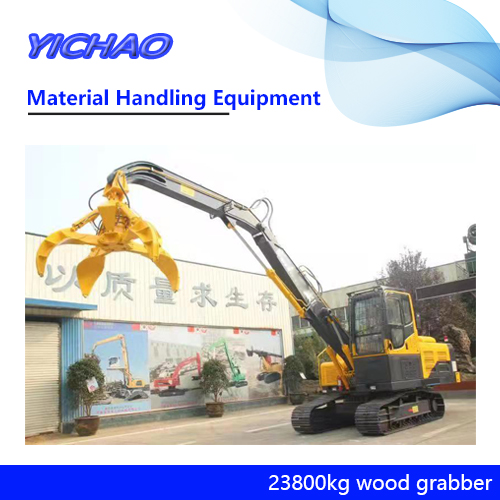

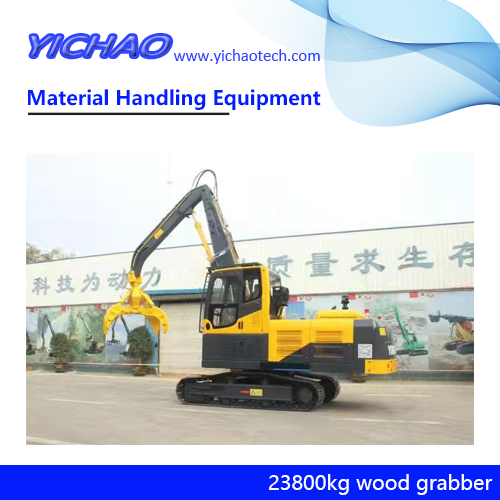

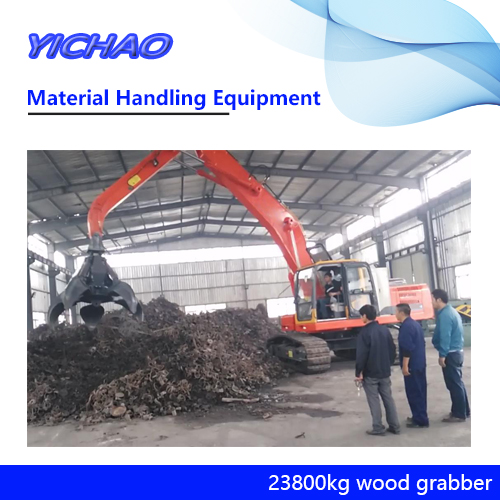

    China Material Handling Equipment supplier,with 23800kg hydraulic crawler Dual Power Electrical Diesel Engine,Rotational Wood/Log/Timber/Scrap Grabber.

    1.Basic Configuration

    Item Unit YCYGSZ240
    Working Weight kg 23800
    Engine model Yuchai YC6B125Z
    power Kw 92
    Rotating speed rpm 2200
    Maximum torque N.m 460
    Displacement L 6.871
    Rated fuel consumption rate g/km.h 210
    Fuel tank capacity L 160
    Electric motor model Yineng YX3-250M-4
    power kw 55
    Rotating speed rpm 1480
    Voltage V 380
    frequency HZ 50
    power consumption degree/h 40
    protect Phase sequence, leakage, overload, overheating
    Hydraulic System Main valve Parker Korea AV-170
    Main pump Doosan Korea T5V80DPP
    Limited Data L/min 2×160+30
    Work pressure Mpa 32
    Hydraulic oil tank capacity L 200
    Hydraulic motor Rotary motor Kawasaki, Japan M2X63
    Swing speed rpm 0-9.5
    Walking motor Doosan Korea TM40
    Slewing support track center mm 1000
    Exterior dimensions of the cab mm 1800x1000x1620
    Cylinder Import seal
    Whole car hose Gates/Eton
    Four rounds DH series
    Electrical System Embedded color screen digital
    Ground pressure 38.2kpa
    Walking speed 0-4km/h
    Largest traction 76kn
    Gradeability 35%
    Lubrication system Centralized lubrication
    air conditioner 24V heating and cooling air conditioner
    Cab interior With protective net, aviation seat, hydraulic pilot
    Conductive slip ring 250A

    2.Dimensions

    Item Unit Size
    Full width of upper part mm 2610
    Cab size mm 1800x1000x1620
    Radius of tail gyration mm 3300
    Lifting height of cab mm 1900
    Driver’s horizontal line of sight height mm 2350–4250
    Height of counterweight mm 920
    Minimum ground clearance mm 440
    Boom length mm 6300
    Length of two arms mm 4200
    Dou Rong m³ 1.5
    Center distance of guide wheel and driving wheel mm 3180
    Track length mm 4200
    Track shoe width mm 600
    With pitch mm 2390
    Total width of lower frame mm 2990

    3.Hydraulic System

    Hydraulic System YCYGSZ360
    Main Pump type Plunger pump
    Maximum flow (L/min) 2×160
    quantity 2
    Pilot pump type Gear pump
    Maximum flow (L/min) 30
    quantity 1
    Rotary motor Overflow valve (Mpa) 28
    working equipment Overflow valve (Mpa) 32
    Walking device Overflow valve (Mpa) 35
    Grab part Grab opening and closing (Mpa) 28
    Grab rotation (Mpa) 12

    4.Grab Parameters

    Item Unit YCYGZM-1.5
    Grab weight kg 1957
    Dou Rong m3 1.5
    Maximum opening distance of attachment mm 3000
    Attachment with minimum closed inner space mm 900
    Attachment grab tooth length mm 1350
    Attachment closed total height mm 3498
    Total width mm 1100
    Rotating part Slewing support Maanshan Jingwei QWB500.20
    Rotary motor Zhenjiang Dali MBT-1000-4-M
    Rotary joint Jiangsu Teng Xuan MW2-22HH
    Cylinder Shandong Longyuan Φ110/80-400-760

    23800kg Material Handling Equipment grab parameters

    5.Working Range

    (calculated according to the grab center)

    Maximum snatch height mm 6740
    Snatch radius at maximum snatch height mm 5620
    Maximum snatch depth mm 8060
    Snatch radius at maximum snatch depth mm 6000
    Maximum snatch radius mm 10000
    Maximum ground snatch radius mm 9920

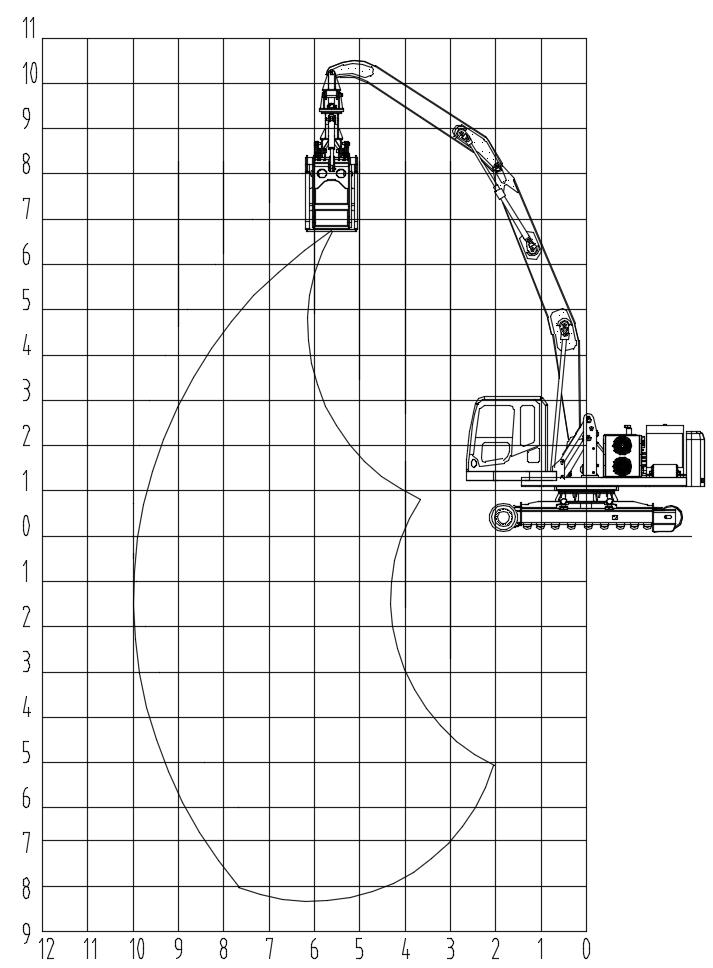

    23800kg Material Handling Equipment working range
