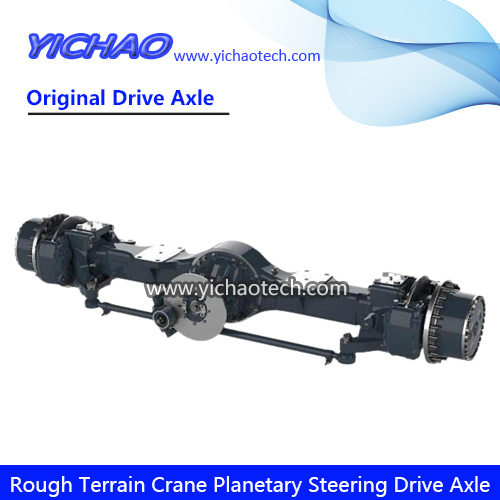

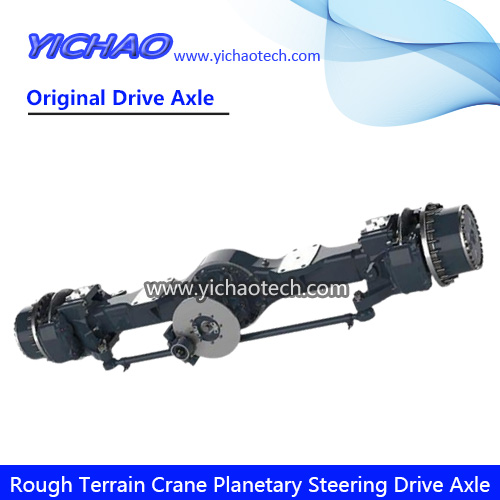

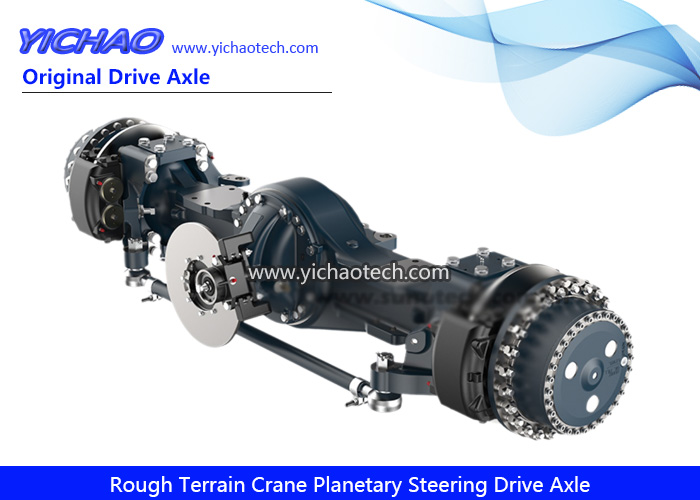

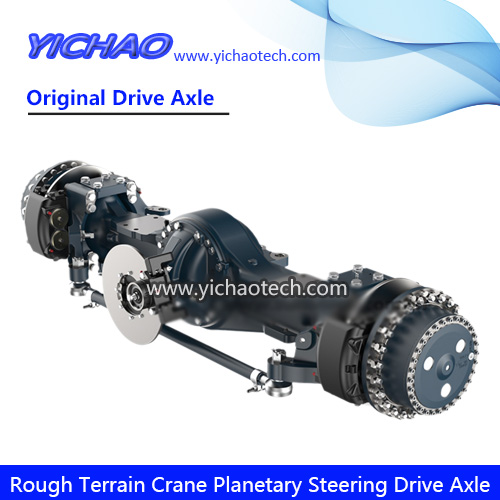

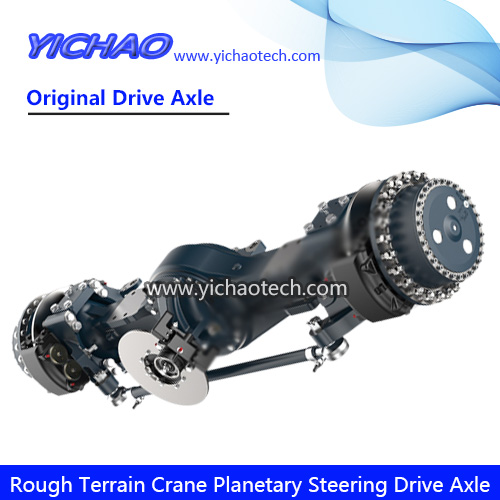

Rough Terrain Crane/Tow Tractors/Snow Removal Heavy Planetary Steering Drive Axle
Heavy-duty Planetary Steering Drive Axle with payloads from 30t to 125t.
The axles are designed for high reliability, built on years of design experience. Our flexible modular system enables customized solutions while utilizing series components from highly efficient production.
Features
•Available in multiple configurations
•Robust design
•Lightweight construction
•Maximum service life
•Delivers maximum performance and offers easy, low-cost service
•Interchangeable with Dana, Comer, Carraro and Kessler solutions
The AxleTech PSC1764 planetary steerable axle has an axle capacity of up to 55,000 lbs (24,900 kg) in RT cranes. This axle covers a broad range of demanding vocational applications, and the actual capacity will depend on the specific vocation.
DCDL (driver-controlled differential lock) and NoSPIN® differential options are also available for improved traction vocational requirements.
A standard input pinion unitized seal reduces the likelihood of oil leaks.
Permanently lubricated steering axle shafts are standard.
Optional extra axle housing magnets.
Wheel-mounted single or dual 4-piston hydraulic caliper/wheel end dry disc is standard.
Carrier input spring apply/hydraulic release pinion mounted park brake options
