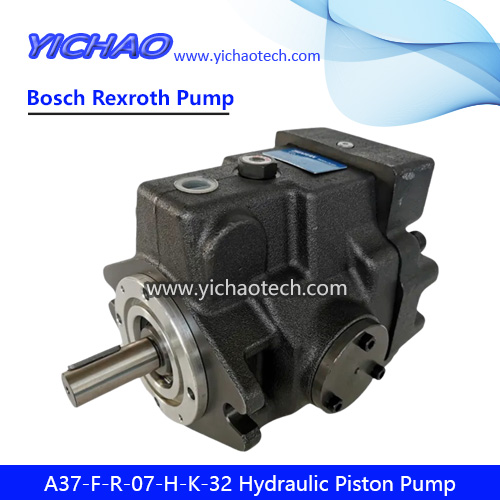

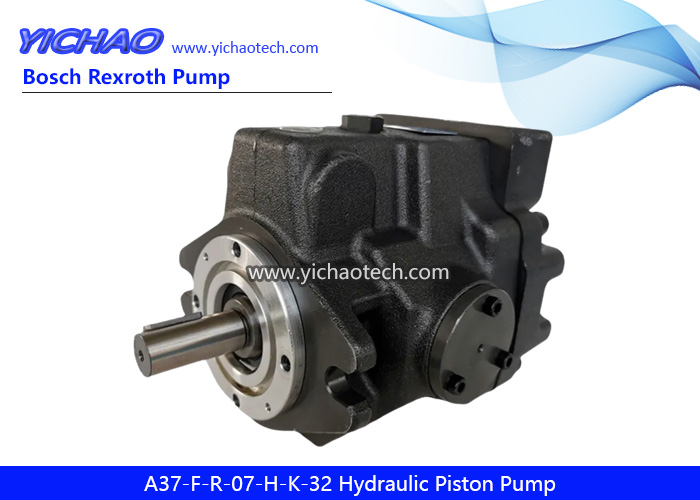

Yuken A37-F-R-07-H-K-32 Variable Displacement Pilot Piston Oil Pump
Variable Displacement Piston Pump , Oil Pump , A37-L-R-05-CC-S-K-32 , A37-F-R-01-H-K-32 , A37-F-R-07-K-32
Precautions for Starting the Oil Pump:
1. Before starting the oil pump, first fill the pump body with clean hydraulic oil until it is completely full.
2. Verify that the pump’s rotation direction matches the rotation direction arrow indicated on the motor.
3. During initial after prolonged shutdown, the pump may experience suction difficulties. Install a bleed valve at the pump outlet or loosen the outlet pipe fitting to expel air. Initiate in short bursts under no-load conditions whenever possible.
4. Air ingress within the pump or piping causes noise and vibration. During startup, repeatedly start and stop the pump with its outlet unloaded to expel trapped air.
5. For servo motor-driven pumps: First adjust the motor to low speed via the servo drive (switch from pressure mode to speed mode). Run the motor at low speed for 3-5 minutes to purge air. Once pump noise returns to normal, switch back to pressure mode.
For Kalmar Reach stacker
DRG420-450/DRF400-450/DRT450
For Konecranes Reach stacker
SMV 108 TC6 / SMV 2115 TC3 / SMV 2518 TC3 / SMV 4127 TC5 (TC6) / SMV 4527 TC5 (TC6) / SMV 4531 TC5 (TC6) / SMV 4535 TC5 (TC6) / SMV 4535 TCX5 / SMV 4537 TC5 / SMV 4537 TCX5 / SMV 4542 TC5 / SMV 4542 TCX5 / SMV 4543 TC5 / SMV 4543 TCX5 / SMV 4545 TC5 / SMV 4545 TCX5
Sany Reach Stacker Port Machinery Container Handling Equipment Parts
Volve or Cummins Engine, 334HP
Max Hosting Hieght: 15100mm (49′ 6″)
Reach Stacker
Packing and shipping
