Automatic Bottle Lifting Cap Feeder System Sorting Placing Capping Feeding Machine

Automatic Bottle Lifting Cap Feeder System Sorting Placing Capping Feeding Machine
  • Enquiry Now!

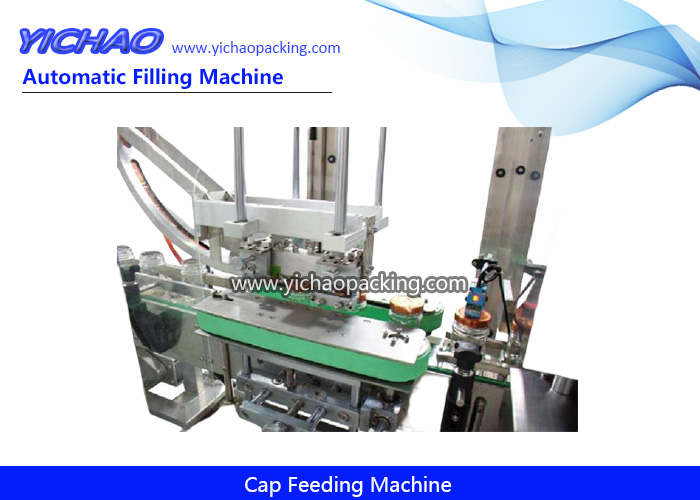

    Cap-feeding-machine-04
    Lifting cap sorting machine, also called automatic cap sorting machine, cap sorting and placing machine, is a special equipment for automatic cap sorting and capping. It is mainly used in the supporting equipment of filling line. The main function is to automatically sort and place caps. cover.
    Component
    The cap sorting system mainly adopts a straight-line belt conveying device to realize the purpose of cap sorting; the support system supports the vertical cap lifting system, and can adjust the inclination of the cap lifting system belt, so as to adapt to the bottle caps of different heights. The need for cap sorting; the cap dropping system makes the bottle cap accurately fall on the bottle mouth through the arc-shaped guide rail, so as to achieve the perfect combination with the fully automatic crawler capping machine. This equipment has the characteristics of simple and reasonable structure, good automation, no need to climb for replenishment and capping, and convenient operation.
    Technical Parameter
    1. Adapt to cover diameter: 30-60mm
    2. Working pressure: 0.5-0.8Mpa
    3. Weight: 85kg
    4. Output: 25~65 pcs/min
    5. Overall dimensions (L×W×H): about 800*800*2100mm
