2-in-1 Automatic Carbonated Drinks/Beer/Juice/Beverage/Soda/Water Can Capping Filling Sealing Line

2-in-1 Automatic Carbonated Drinks/Beer/Juice/Beverage/Soda/Water Can Capping Filling Sealing Line
Enquiry Now!

2-in-1 Automatic Carbonated Drinks/Beer/Juice/Beverage/Soda/Water Can Capping Filling Sealing Machine
Capacity:3000BPH 330ML

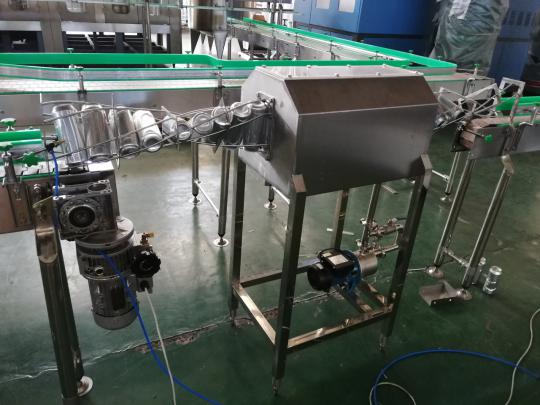

1. Auto can washing machine

carbonated drinks can filling line auto can washing machine
The empty cans are by conveyor into can turning, turning about 180°to make can head down, then entrance into washing part, which is adopting high water to washing it. After that, turn it back and go into next step.
Washing part: 600*500*1270mm
Overturn tunnel: 2m
Washing pump power: 0.37kw (CNP)

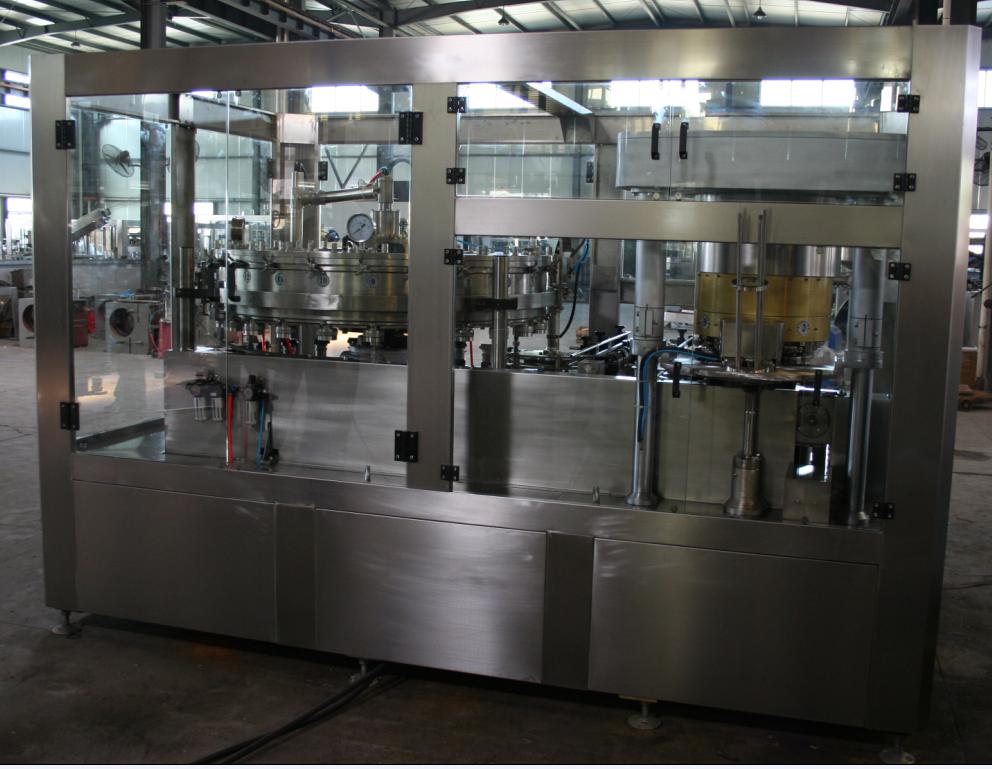

2. 2-in-1 Filling capping machine

This machine is suitable for cans and cans (CSD) industry with cans of carbon cans filling and sealing, filling and sealing cans for the overall design, using isobaric filling principle:
1. The empty tank is driven by the dial into the pneumatic tank holder. The indexing block of the filling valve is opened and opened by the action of the first cylinder, and the CO2 gas in the filling cylinder is filled into the empty tank for pre-filling and set Pre-exhaust device;
2. Compressed air into the cylinder through the pneumatic triplet, under the action of the canister cam, the canister is raised and the conical seal under the filling valve is sealed;
3. Filling valve indexing block in the second cylinder under the action of translocation open the valve to the canister inflated and the formation of equal pressure, filling valve open, beer from the cans through the filling valve to the empty cans, empty cans Within the liquid level rise to block the return air port, stop filling;
4. Filling valve indexing block in the role of closing the cam, filling valve closed;
5. Foam valve in the foam cam began to slowly deflate pressure relief;
6. Care tank cylinder continues to decline, after the tank is synchronized operation of the hook chain sent to the sealing machine sealing;
7. Sealing when the seal wheel pre-seal and then seal, the canister is sealed after the beginning of the opening body cover, dial the dial to the conveyor belt sent.
The main electrical components using Siemens PLC, touch screen and analog output and South Korea’s solenoid valve, Omron proximity switches and other high-quality configuration, the company’s senior electrical engineer designed the most reasonable configuration, the entire production speed can be as required Touch screen to set their own, all common faults automatically alarm and give the location of the corresponding fault reason, according to the severity of the fault, PLC automatically determine whether the host can continue to run or stop.
carbonated drinks can filling line 2in1 auto filling & capping
The main technical parameters:
◆ Sealing head: 4 ; Filling head :24
◆ Output: 3000CPH 330ML
◆ Power: About 4kw
◆ Dimensions: 3000*1700*2100mm
◆ Weight: 3000KG
Filling method: Isobaric filling for carbonated energy drink
Filling temperature: about 5℃
Filling pressure: 0.25-0.3MPa (fluctuation is less than 0.03MPa)
Filling material loss rate: ≤1.5%
Qualification rate of sealing: ≥99%
Compressed air: Supplied pressure is less than 0.5MPa
CO2 gas: Supplied pressure is less than 1.2MPa
Applicable can diameter: Φ52.3~98.9mm
Applicable can height: 39~160mm
Main configurations:

PLC  1pc 2 in 1 Filling capping machine Main configurationsGermany
Touch screen  1pc 2 in 1 Filling capping machine Main configurationsTaiwan, China
Proximity switch  9pcs 2 in 1 Filling capping machine Main configurationsJapan
Variable-frequency Drive  1pc 2 in 1 Filling capping machine Main configurationsTaiwan, China
Solenoid valve  2pcs 2 in 1 Filling capping machine Main configurationsTaiwan, China

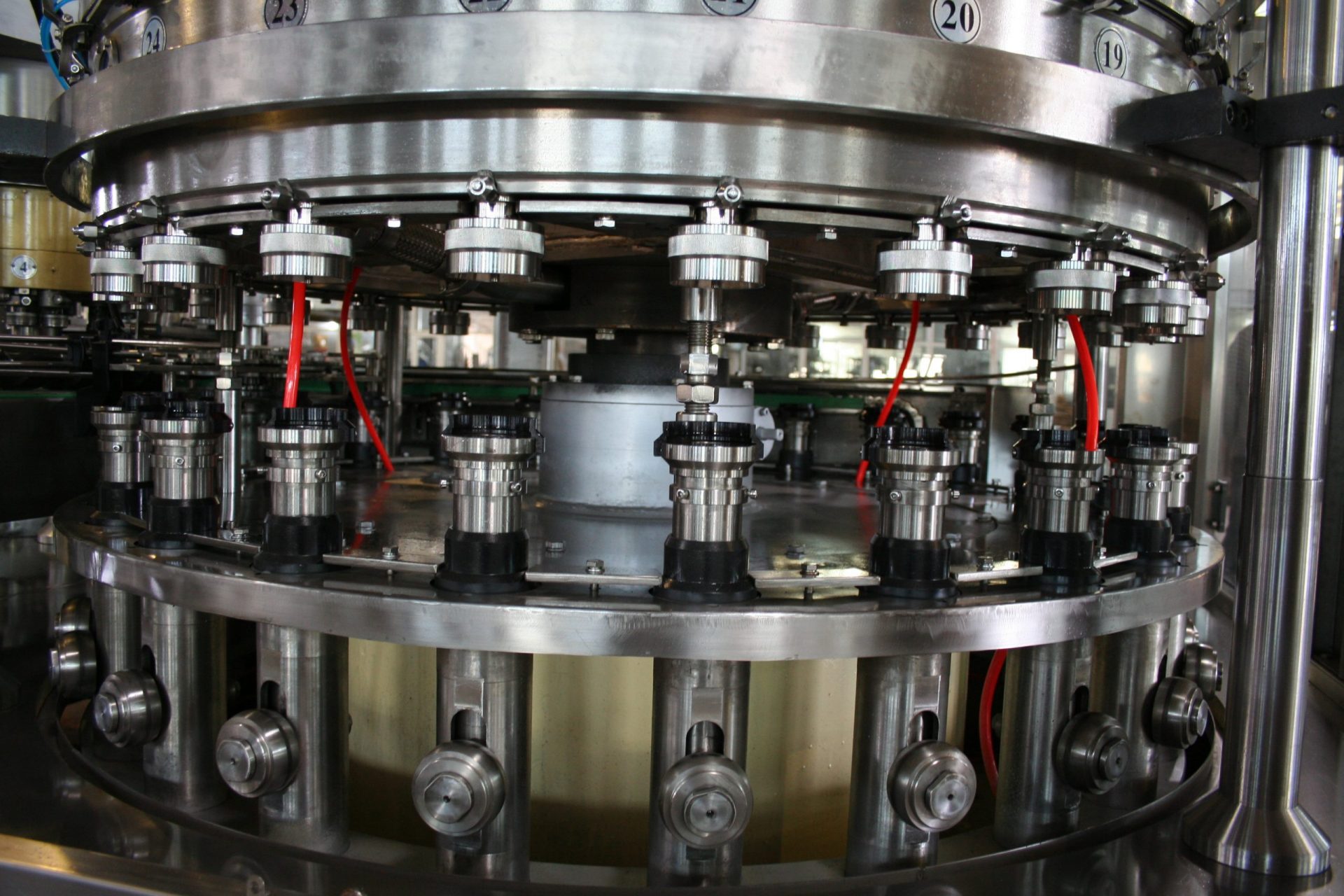

Filling Part
carbonated drinks can filling line Filling part

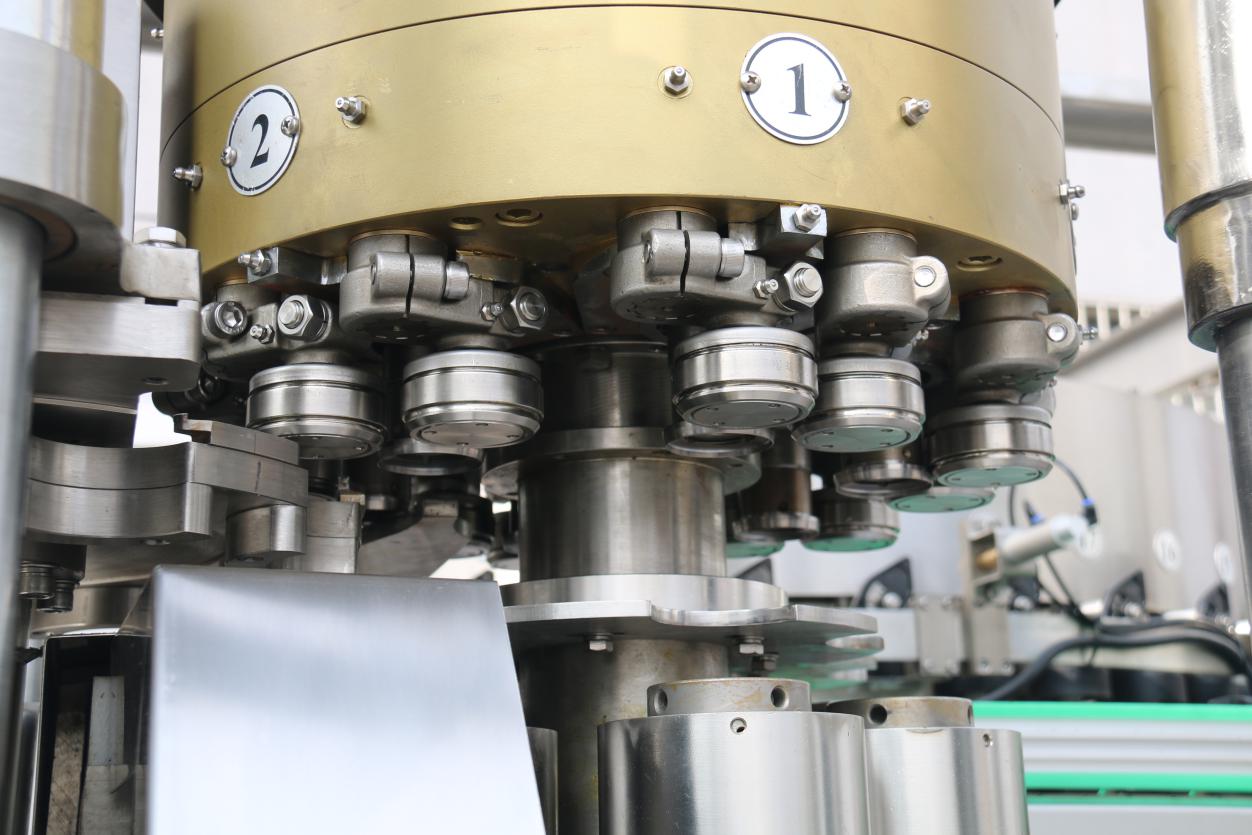

Capping part
carbonated drinks can filling line Capping part

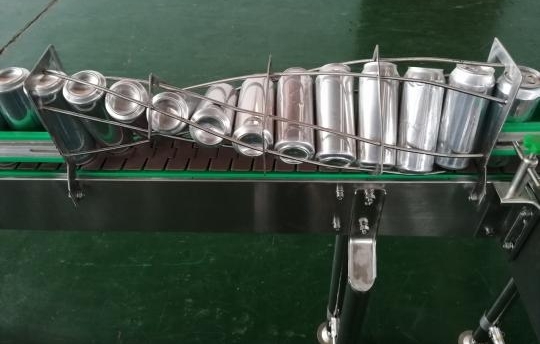

3. Overturn tunnel

carbonated drinks can filling line Overturn tunnel
First is used after warming machine, to make the bottom turn upwards. Making preparation for printing date onto bottom.
Second is used after date printing. Then go on packaging.

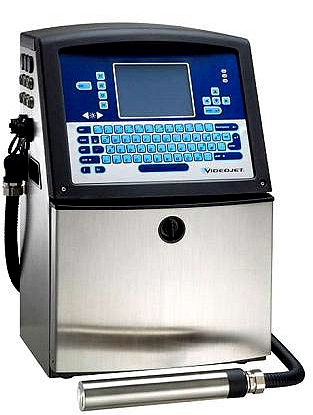

4. Auto ink-jet code printing machine

carbonated drinks can filling line Auto ink-jet code printing machine
Brand: America VIDEOJET
Required capacity: 4000CPH
Font matrix configuration:
Single-line: 5×5/5×7/7×9/11×16/17×24
Two-line: 5×5/5×7/7×9
Three-line: 5×5/5×7
Ink jet distance:
best distance: 12mm;
available range: 5~15mm
Character set: American English, Arabic, Bulgarian, eastern European, European, Greek, Hebrew, Hungarian, Italian, Japanese, Japanese/kanji, Japanese/katakana, Korean, Russian, Chinese (simplified), Scandinavian, Thai, Chinese (traditional), Turkish, Vietnamese
Language and interface options: English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, polish, Portuguese, Russian, Chinese (simplified), Spanish,Swedish, Thai, Chinese (traditional), Turkish and Vietnamese.
Information storage: 100 complex messages; USB storage is not restricted.
Electrical requirement: AC100~120/200-240V(based on 50/60Hz, 120W)
Main machine dimensions: 345*285*541mm

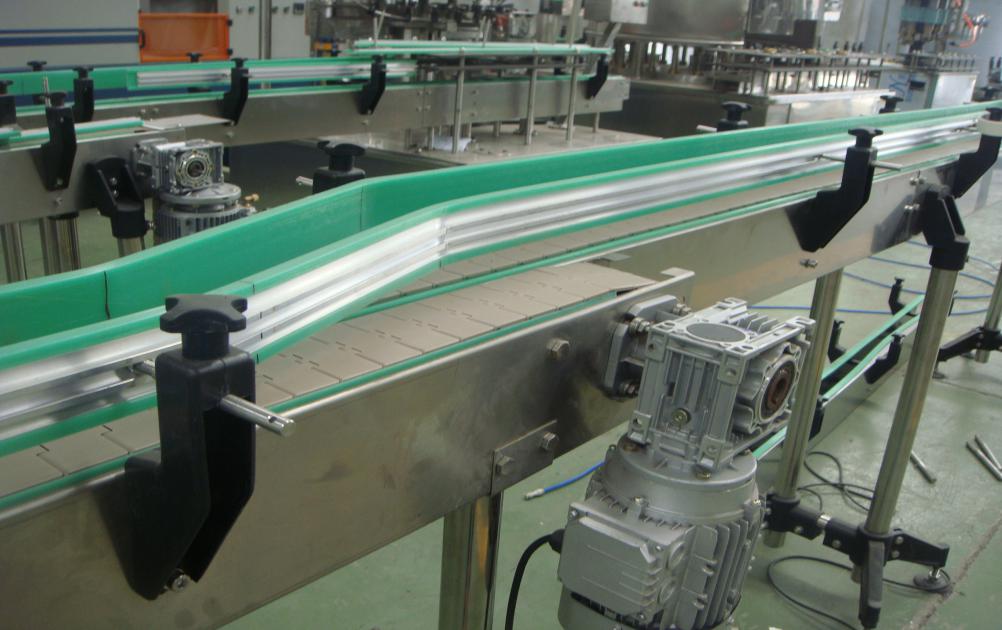

5. Flat Conveyor

carbonated drinks can filling line Flat Conveyor
It is mainly used to transport bottled water, and makes the finished water through light checker , ink-jet printer , shrink sleeve labeling machine , PE film packing machine.

  • Material of conveyor plate:plastic
  • Number of motors:determined by the conveyor length
  • Motor power:1.1KW

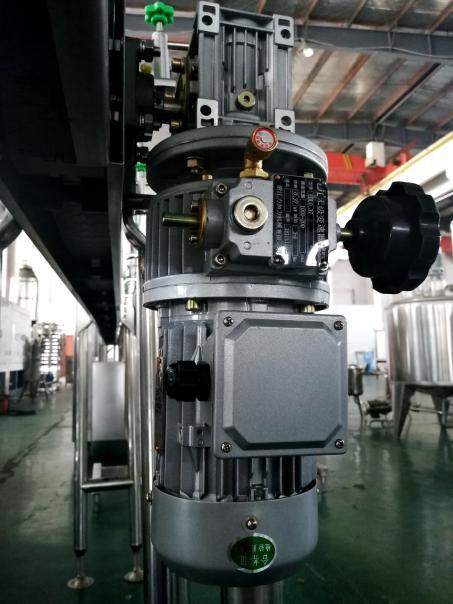

6. Flat conveyor

carbonated drinks can filling line Flat Conveyor
Conveyor motor
Power: 0.37kw
