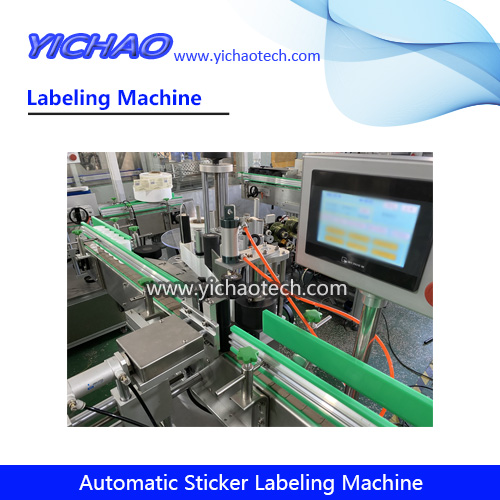

Automatic High Speed Vertical Positioning Round Bottle Sticker Labeling Machine

Automatic High Speed Vertical Positioning Round Bottle Sticker Labeling Machine
  • Enquiry Now!

    Using self-adhesive web labeling paper, labeling using cylinder bottle clamping, the preparation of automatic bottle division, one time to complete the bottle placement and labeling; Suitable for medicine bottles, glass bottles, beverage bottles, plastic bottles, cans and other round bottles.
    Automatic High Speed Vertical Positioning Round Bottle Sticker Labeling Machine

    Product Introduction

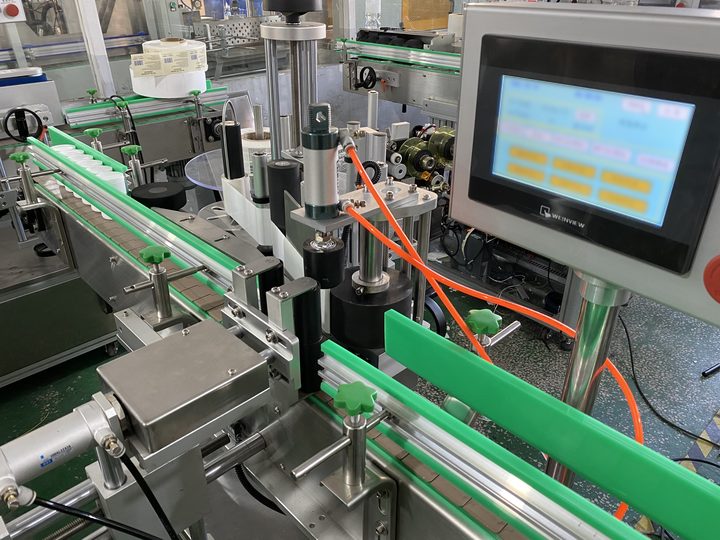

    Body Label
    Automatic High Speed Vertical Positioning Round Bottle Sticker Labeling Machine-body label
    1. Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equiment speeds.
    2. Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.
    3. Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.
    4. Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular
    Top Label
    1.The machine adopt the touching display operation, easy and intuitive, fully function.
    2.Adopted Siemens control system, make machine more stable reliable in operation and long working time.
    3.Adopt flat-belt convey, stable、reliable, labeling precision is more exactly.
    4.Whole machine all compose by stainless steel and aluminium profile, well-formed.

    Product Features

    Because the labeling machine adopts electromechanical integration technology, the selection of large torque stepper motor drive, photoelectric control device, power protection device and other advanced systems, so it has the starting buffer function, the overall sensitivity of high, low speed torque, stable speed, stable working voltage, strong anti-dry ability and other technical characteristics. To ensure that the paste standard is accurate, stable, reliable and efficient.
    Self-adhesive labeling machine is suitable for labeling circular plastic bottles, glass bottles or similar objects in pharmaceutical, food, light industry, daily chemical industry and other industries. This machine can automatically separate bottles, send labels and separate labels synchronously, label and print batch number and date automatically, writing clearly.
    O1CN01jINXu41hqjK5nr4

    Product Parameters

    No Item Parameter Date
    2 Dimension    L 2500mm * W 900mm * H 1300mm
    3 Voltage    220V/50Hz
    4 Power    1200 W
    5 Production Capacity 800BPH
    7 Label Roll Core   76 mm
    8 Label Roll Diameter    350 mm
    9 Label Width   10~110 mm (special size can be customized)
    10 Label Length    20~360 mm (special size can be customized)
    11 Bottle Diameter  30~90 mm (special size can be customized)
    12 Bottle Height 30~200 mm (special size can be customized)

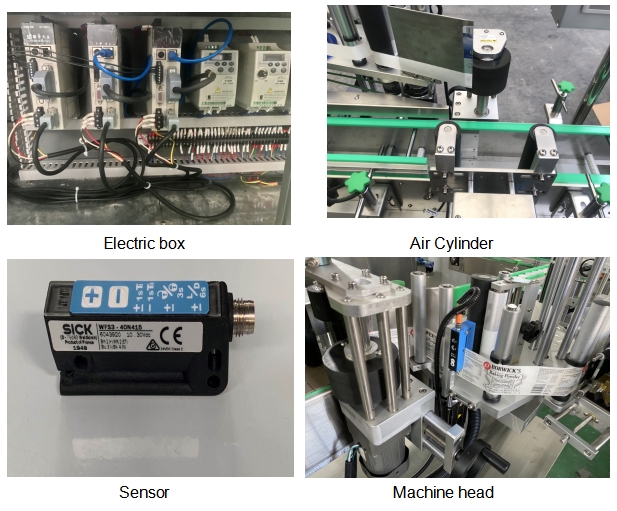

    Detail Photos

    Automatic High Speed Vertical Positioning Round Bottle Sticker Labeling Machine-detail photos
