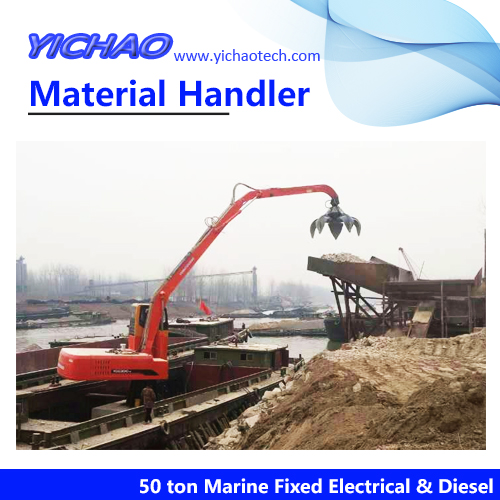

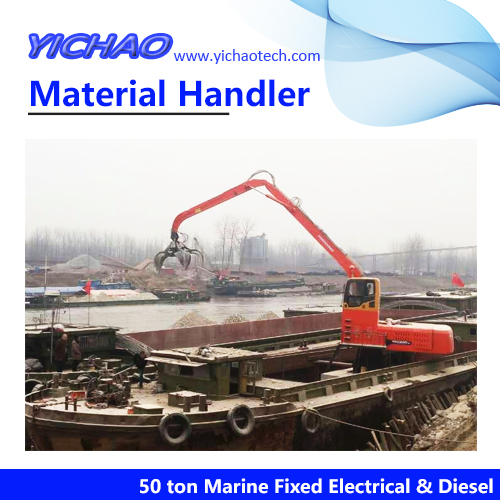

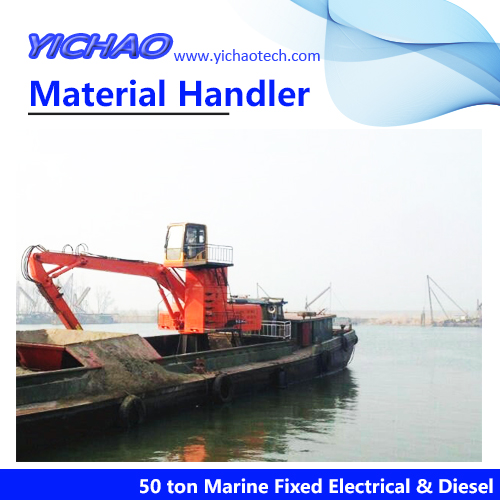

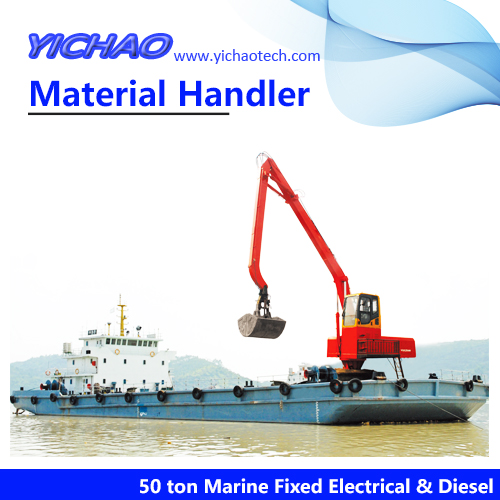

50 ton Marine Dual Power Material Handling Equipment YGSGZ500
Enquiry Now!1.Product Introduction
1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation;
2. The electrical system has protection functions such as overcurrent, overload and leakage;
3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power;
4. Double pump combined flow and multi-action compound to improve work efficiency;
5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect;
6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep;
7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers;
8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure;
9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms;
10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system;
11. Fixedly increased streamlined appearance driver’s cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment;
12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.
2.Parameter
Item | Unit | YGSGZ500 | |
---|---|---|---|
Work weight | kg | 49800 | |
Shipping size | mm | 21000x9500x4550 | |
Engine | Model | Cummins | 6LTAA8.9-C325 |
Power | kw | 239 | |
Speed | rpm | 2200 | |
Max.torque | n.m | 1350 | |
Dispiacement | L | 8.9 | |
Specific fuel consumption | g/kw.h | 222 | |
Fuel tank capacity | L | 390 | |
Motor | Model | / | Y315M-4 |
Power | kw | 132 | |
Speed | rpm | 1480 | |
Hydraulic system | Main pump | Kawasaki | K3V180DT |
Rated flow | L/min | 2×320 | |
Working pressure | Mpa | 31.5 | |
Main valve | Parker | UX32-18 | |
Hydraulic tank capacity | L | 504 | |
Hydraulic motor | Swing motor | SUNJIN | SH360 |
Performance parameter | Swing speed | rpm | 0-12 |
The cab | Overall dimensions | mm | 1800x1000x1620 |
swing ring | Orbital diameter | mm | 1465 |
Hull | Overall dimensions | mm | 21000x9500x1500 |
Slip ring | 400A | ||
Cylinder | Korean technology imported seal |
3.Main Dimensions
Main dimensions | Unit | YGSGZ500 |
---|---|---|
Upper full width | mm | 3300 |
Cab High Level | mm | 1200 |
Tail swing radius | mm | 4600 |
Boom length | mm | 9600 |
Stick length | mm | 5000 |
Capacity | m³ | 0.7-3 |
Max. grabbing radius | mm | 13865 |
Min.grabbing radius | mm | 3200 |
Max. weight in the snatch snatch radius | kg | 2000 |
4.Product Features
1).Full hydraulic operation
The entire operating system is hydraulically controlled, not mechanically controlled.
2).Fully imported configuration
Main pump main valve rotary reducer assembly, travel reducer assembly, pilot handle, the whole vehicle hose is Italian.
3).High safety factor
4).High working efficiency
5).Air conditioning and air seat
6).Long lasting
7).Centralized lubrication system, easy maintenance
