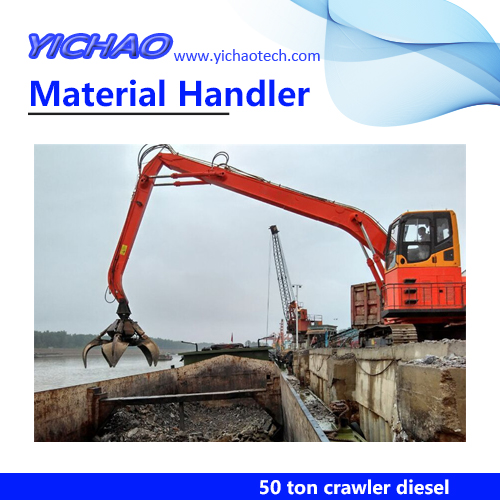

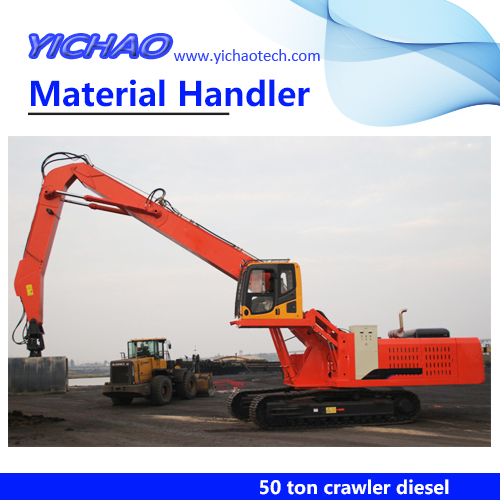

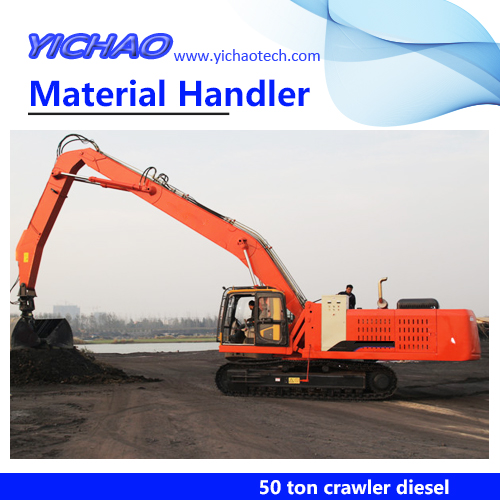

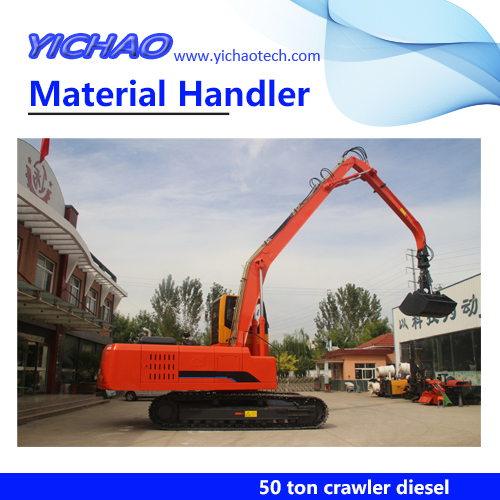

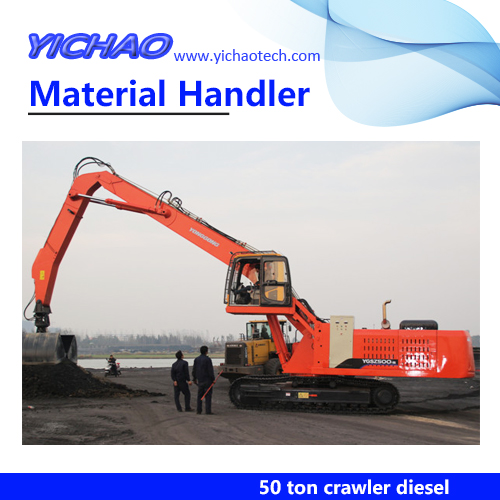

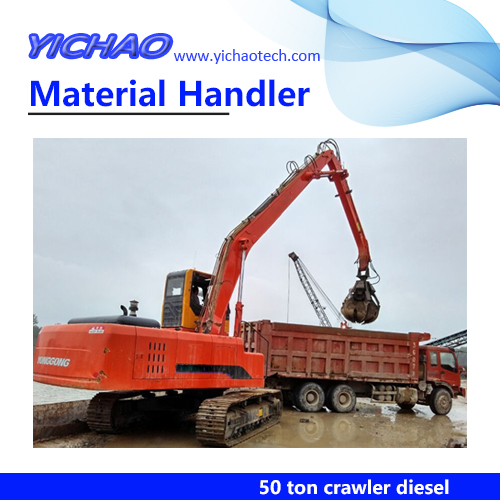

50 ton Hydraulic Steel Grab Wheel Material Handling Machine YGSZ500

50 ton Hydraulic Steel Grab Wheel Material Handling Machine YGSZ500
  • Enquiry Now!

    1.Product Introduction

    1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation;
    2. The electrical system has protection functions such as overcurrent, overload and leakage;
    3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power;
    4. Double pump combined flow and multi-action compound to improve work efficiency;
    5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect;
    6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep;

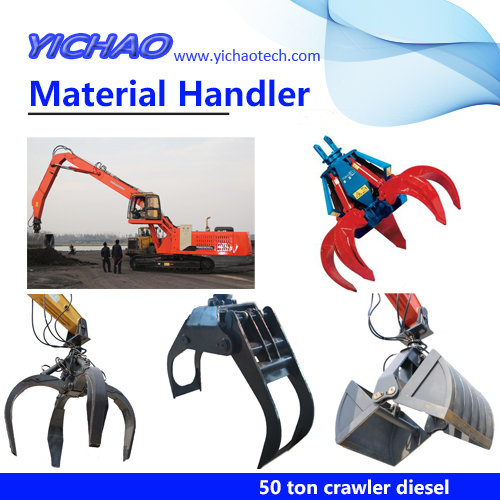

    7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers;
    8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure;
    9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms;
    10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system;
    11. Fixedly increased streamlined appearance driver’s cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment;
    12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.


    Operating weightkg48600
    Transporting dimensionmm15800x3400x3350
    fuel consumptiong/kw.h222
    Fuel tank capacityL390
    Hydraulic system Main pumpKawasakiK3V180DT
    Rated flowL/min2×320
    Working pressureMpa31.5
    Main valvePARKERUX32-18
    Hydraulic tank capacityL504
    Hydraulic motorSwing motorSUNJINSH360
    Traveling motorDOOSANTM70
    Performance parameterSwing speedrpm0-12
    Travel speedKm/h0-5
    Max. pulling forcekn260
    Ground pressurekpa93
    CabinOverall dimensionsmm1800x1000x1620
    swing supportOrbital diametermm1465
    Slip ring400A
    Four wheels and trackKomatsu PC400 same
    CylinderKorean technology imported seal


    Main dimensions UnitYGSZ500
    Upper full widthmm3300
    Cab moving heightmm1795
    Tail swing radiusmm4600
    Min.clearance to the groundmm400
    Balance weight distance from groundmm1190
    Distance from guide pulley to driving wheelmm4260
    Track lengthmm5200
    Track inner distancemm2800
    Track pads widthmm600
    Under the frame full widthmm3400
    Boom lengthmm9600
    Stick lengthmm5000
    CapacityMulti-tine grabm 31.5-3 Bulk density ≤2.0 tons
    orange peel grab Clamshell1
    Max. grabbing heightmm10350
    Grabbing radius at max grabbing heightmm8390
    Max. grabbing depthmm8550
    Grabbing radius at max grabbing depthmm9247
    Max. grabbing radiusmm13865
    Min. grabbing radiusmm3200
     The radius of snatch snatch weightkg2000
