RO Salt Water to Drinking Treatment System Seawater Desalination Equipment Watermaker Machinery Plant

Product Description

Seawater Desalination Plant Factory RO Equipment Seawater/Water Treatment Unit

Seawater desalination process and parameters
①Seawater desalination process:
Raw water tank→bactericide→two-stage quartz sand filter→scale inhibitor/reductant→precision filter→high pressure pump→reverse osmosis membrane→product water sterilization→product water tank
②Production water quality:
Product water TDS＜500, turbidity＜0.1

Seawater Desalination Equipment Design Scope

①Sea water intake system
②Seawater desalination pretreatment system (self-cleaning + multi-media filter)

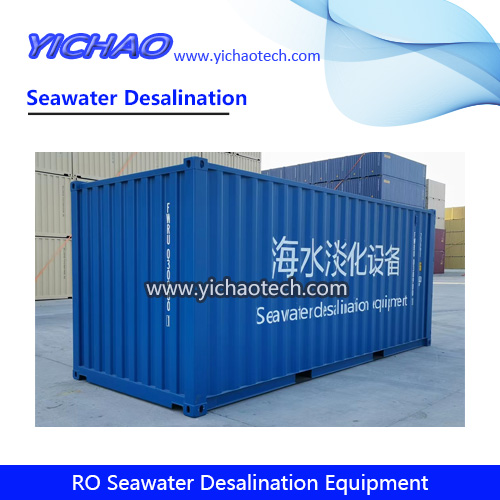

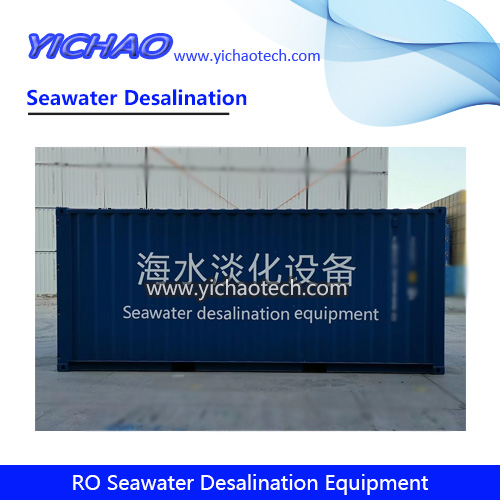

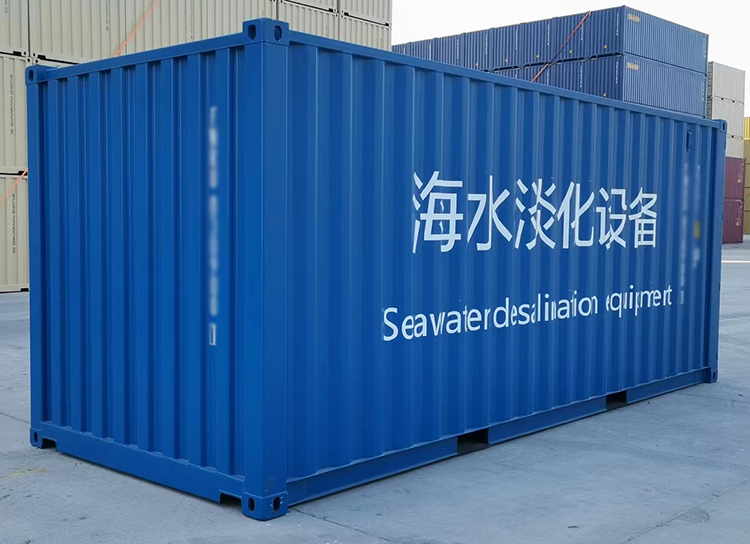

③Seawater desalination equipment, the water quality of the produced water can meet the water quality standard of the project. Seawater desalination equipment is in the form of containers, and its electrical, instrumentation and control systems are controlled by PLC, which greatly reduces the cost of on-site civil construction. The technological process is simple and smooth, automatic/manual operation can be realized, and the effluent water quality is reliable and stable.

Seawater desalination equipment technical parameters

Water production: 1m3/H (20°C)
Influent salt content: ≤40000ppm
Inlet water temperature: 5～36oC
Water intake: ≈4m3/h
Influent PH range: 3.0～10.0
Water inlet pressure range: -0.1～6kg/cm2
Salt content of effluent: ≤900PPM
System desalination rate: ≥98%
Outlet water quality: in line with GB5749-06 drinking water quality standard
PH value of effluent 6.5～8.5
Outlet pressure: ＞0.15Mpa
System recovery rate: ≈28% (depending on temperature and water quality)
Power supply: AC220V/50Hz/3ф
Installed capacity: ≈6.3KW (including water supply pump)
Electrical control: refer to GJB4000-2000 “General Specifications for Ships”, the main components are Schneider’s products
Electric control box: Control voltage: 220VAC
Protection class: IP55
Each pair of running indication passive normally open contacts and comprehensive alarm passive normally closed contacts is provided for external connection.
Motor: Protection class: IP55
Insulation class: “B”
Temperature rise grade: B grade
Maximum dimensions: can be customized according to the site
Weight: ≈350Kg (dry weight)
≤450Kg (wet weight)
Service life: 15 years
