Proportional Pressure Reducing Pilot Solenoid Valve ER52 12V RSQ240 25Bar TM68502

Crane Excavator Proportional Pressure Reducing Pilot Solenoid Valve ER52 12V RSQ240 25Bar TM68502
Machine Type
Crane, Crane, Lift, Excavator, Backhoe-charger, Crusher, Charger, Grader, Asphalt spreader, Bulldozer, Roller, Dump truck, Compactor
For
Atlas, Bobcat, Bomag, Case, Caterpillar/Cat, Doosan, Fadroma, Hitachi, Hyundai, Jcb, John Deere, Komatsu, Kubota, Liebherr, New. Holland, O&k, Terex, Volvo, Wacker, Yanmar, Zeppelin, Inna
Part Number
2230-282517
Fuel Inlet Metering Valve
Work pressure: ≤0.75MPa;
Flow: See characteristic curve;
Internal leak: ≤20ml/min;
Temperature Range: -40 ° C to 120 ° C using high
temperature resistant fluororubber seal;
Coil voltage range: Continuous operation during
85% to 115% of rated voltage;
Coil rated voltage: 24V;
Coil resistance: 2.8±0.2Ω;
Insulation Resistance:>50MΩ;
Voltage resistance:< 1.5mA
50Hz, 60S>;
PWM frequency: 165~195HZ;
Response time: Power-on response≤50ms; Power-off
response≤30ms;
Medium: diesel, particulate matter≤3um;
Installation method: Screw fastening;
Protective performance: Waterproof, explosion-proof,
anti-corrosion;
Control Method: Normally open.

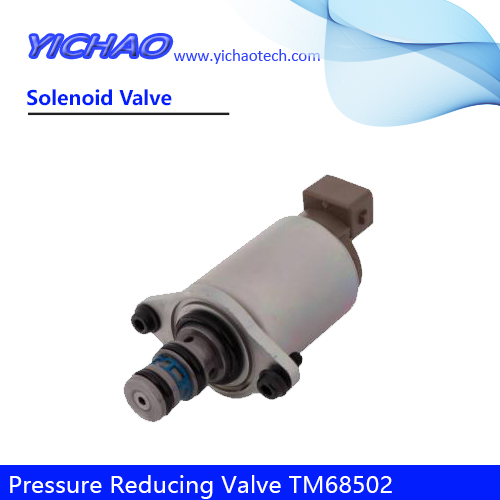

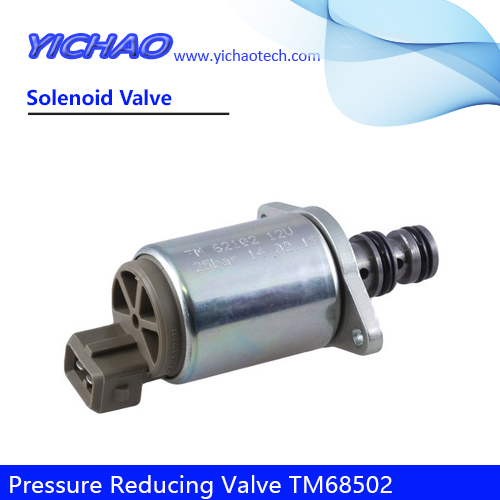

Product Photos

Inlet Metering Valve Production

Inlet Metering Valve Package

Quality Assurance
