YC3.0 mini spider crawler crane
PRODUCT INTRODUCTION

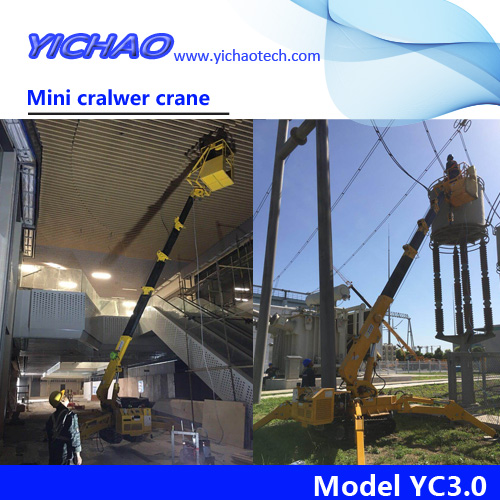

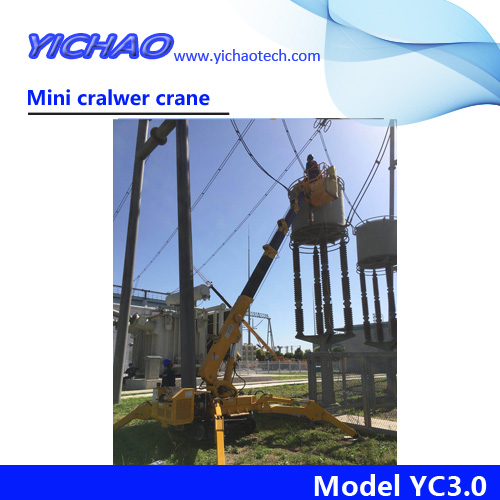

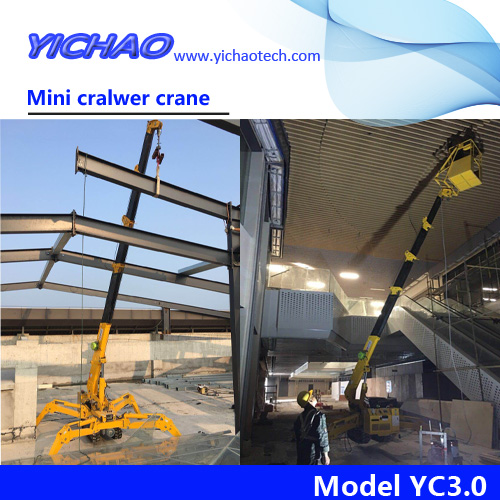

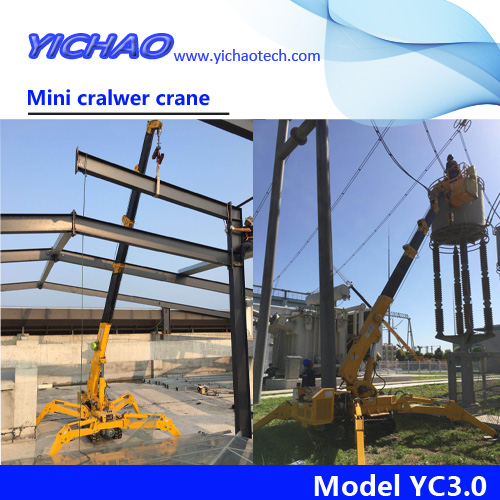

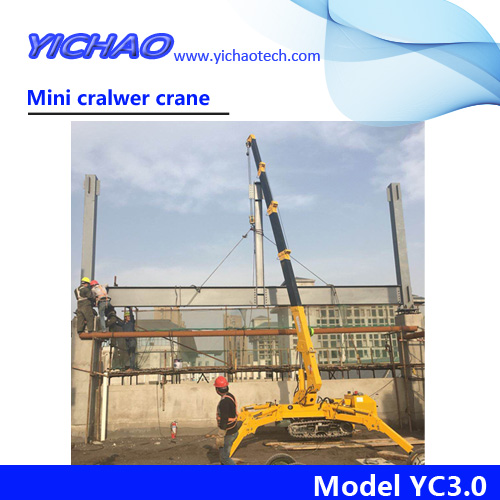

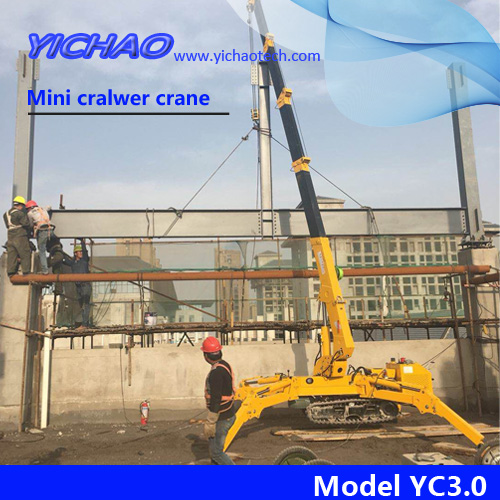

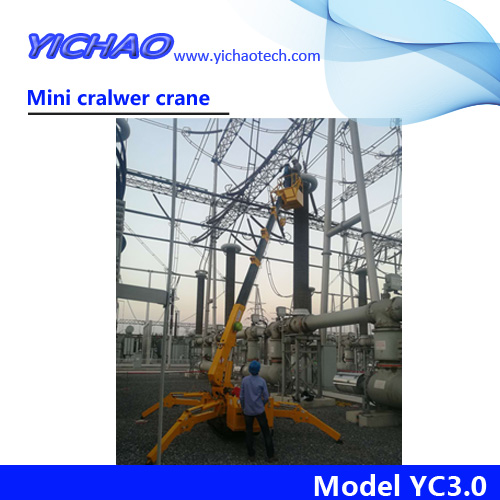

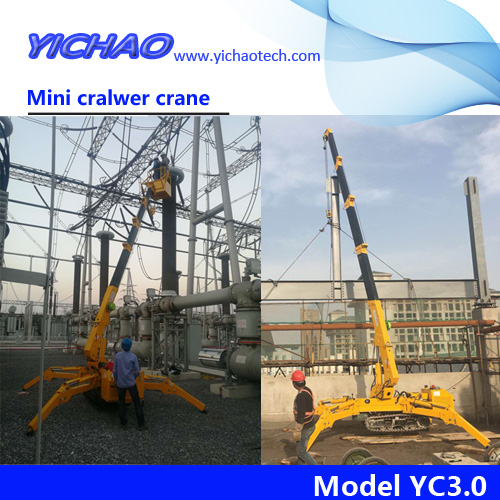

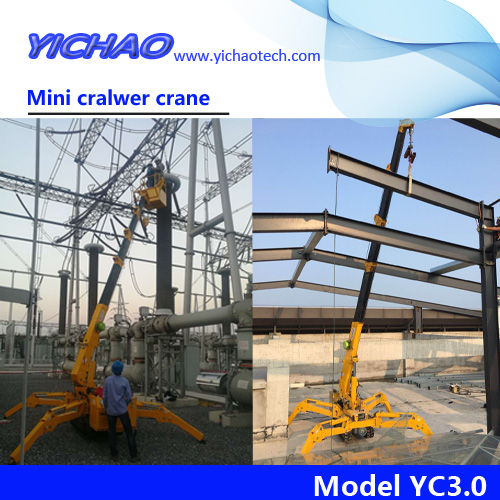

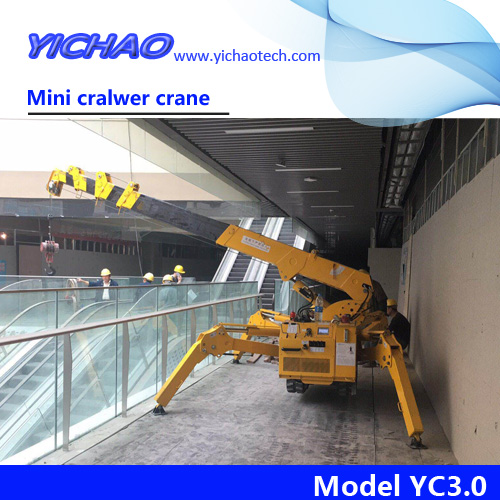

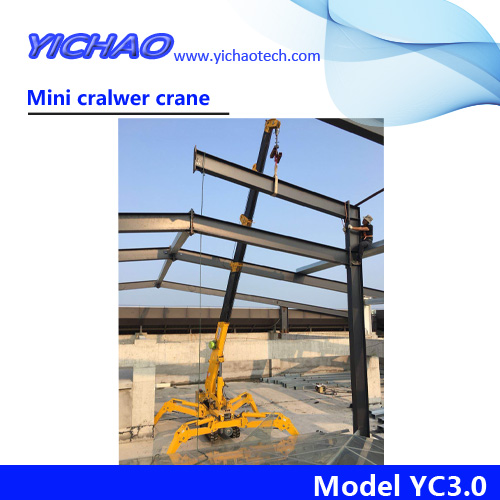

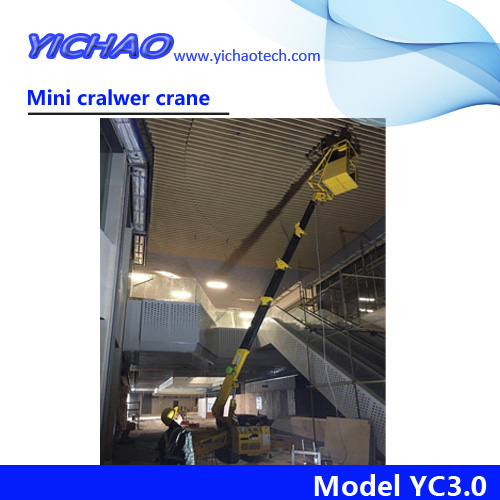

KB3.0 micro crawler crane is widely used in the maintenance and installation of electrical equipment in substation, maintenance and installation of mechanical chemical workshop equipment, glass curtain wall, etc.
At present, has been the state grid and southern grid widely use, have been used for the Shanghai world expo, general motors, lanzhou petrochemical, techsport petrochemical, wuhan day ling and Beijing netcom building construction engineering, etc., products have been exported to USA, Australia, Canada, Britain, Brazil, Vietnam, united Arab emirates and other countries.
In crane rated load has a surplus, but can work for a long time. Crane durable, even in a harsh environment can easily finish the homework. Prevent wrong operation safety design, convenient for the operator easy to complete the lifting operations.
PRODUCT FEATURES
Compact, hydraulic walking.
Safe design prevents error handling.
Adapt to rugged outdoor Spaces.
Pentagon telescopic boom.
The remote control device is energy-saving and durable.
Torque limiter to prevent overload operation.

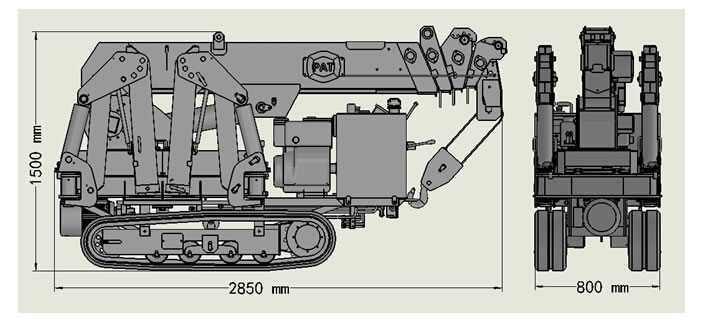

PRODUCT SCHEMATIC
Machine parameter
| Model | YC3.0 mini crawler crane | |
| specifications | 2.95T*1.3M | |
| Maximum radius of homework | 8.3M*0.14T | |
| The largest ground lift | 9.2M | |
| The largest underground head | ~ | |
| Winding device | Hook up speed: | 6.5 m/min (4) |
| Steel wire rope | Diameter of 7.7 mm * 45 m | |
| Telescopic device | Crane jib form | Five blocks of fully automatic |
| Crane arm length | 2.56m-8.92m | |
| Telescopic crane
boom length/time |
6.36m / 26sec | |
| Rolling device | Boom Angle/time | 0°-75°/ 14sec0°-75°/ 14sec |
| Rotary device | Turning Angle/time | Continuous / 0 ° ~ 360 ° 40 SEC |
| Leg | Leg action form | The first paragraph automatically,
high centralized section of the manual regulation |

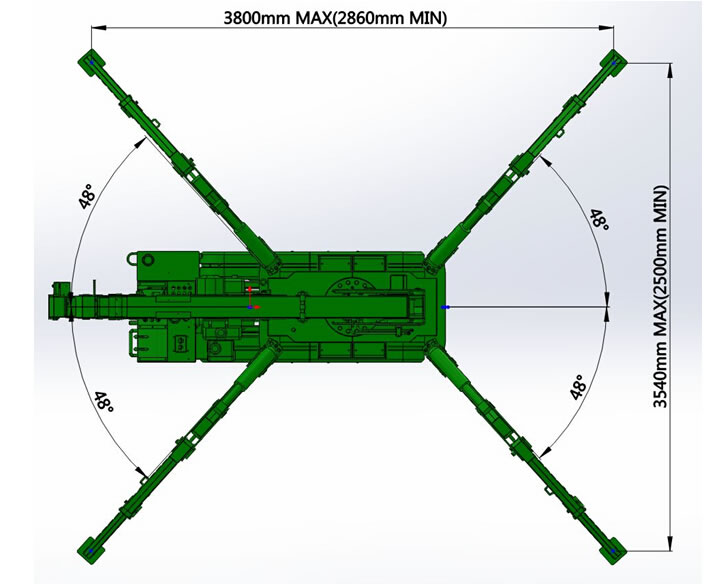

| Maximum out of range | 3900mm*3750mm | |
| Walking device | Walk way | Hydraulic motor drive, two speed |
| Walking speed | 0-2.9Km / h | |
| Climbing ability | 20 degree | |
| Crane earthing length * width * 2 | 1010mm*200mm*2 | |
| Ground pressure | 51kpa | |
| Diesel engine (optional) | Model | 2TNV70-PYU |
| displacement | 570ml | |
| The rated power output | 77.5Kw | |
| Start the way | Electric start | |
| Use fuel/volume | 11L | |
| The aerodynamic performance | 5°C-40°C | |
| Battery capacity | 12V 45Ah | |
| Gasoline engine | Model | GX390 |
| displacement | 389.2ml | |
| The rated power output | 6.6Kw | |
| Start the way | Manual recoil start/electric start | |
| Use fuel/volume | Gasoline / 6 l | |
| The aerodynamic performance | -5°C-40°C | |
| Battery capacity | 12V 36Ah | |
| The motor | Voltage power supply | The standard AC380V |
| power | 4KW | |
| The wireless remote control | Model | BOX1.1 (optional) |
| The effective distance | M100M | |
| Waterproof standard | IP67IP67 | |
| Safety device | Level, alarm device, abrupt stop button, torque limiter (height limiter) | |
| System voltage | DC12V | |
| The vehicle size | Length * width * height | 2900mm*800mm*1450mm |
| The weight of the | The vehicle weight | 2050Kg |
Lifting cable parameter
| The biggest location leg hoisting table | |||||||
| 2.56/4.18 meters boom | 5.8 meters
boom |
7.34 meters boom | 5.5 meters boom | ||||
| Radius of
homework |
Total rated
lifting weight |
Radius of
homework |
Total rated
lifting weight |
Radius of
homework |
Total rated
lifting weight |
Radius of
homework |
Total rated
lifting weight |
| (m) | (t) | (m) | (t) | (m) | (t) | (m) | (t) |
| < 1.3 | 3 | < 2.90 | 1.25 | < 3.60 | 0.83 | < 4.0 | 0.55 |
| 1.5 | 2.58 | 3 | 1.22 | 4 | 0.72 | 4.5 | 0.44 |
| 2 | 2.2 | 3.5 | 0.97 | 4.5 | 0.58 | 5 | 0.34 |
| 2.5 | 1.65 | 4 | 0.77 | 5 | 0.48 | 5.5 | 0.3 |
| 3 | 1.23 | 4.5 | 0.61 | 5.5 | 0.43 | 6 | 0.27 |
| 3.5 | 0.97 | 5 | 0.53 | 6 | 0.37 | 6.5 | 0.23 |
| 3.64 | 0.9 | 5.2 | 0.5 | 6.5 | 0.32 | 7 | 0.2 |
| 6.75 | 0.29 | 7.5 | 0.18 | ||||
| 8 | 0.15 | ||||||
| 8.3 | 0.14 | ||||||
