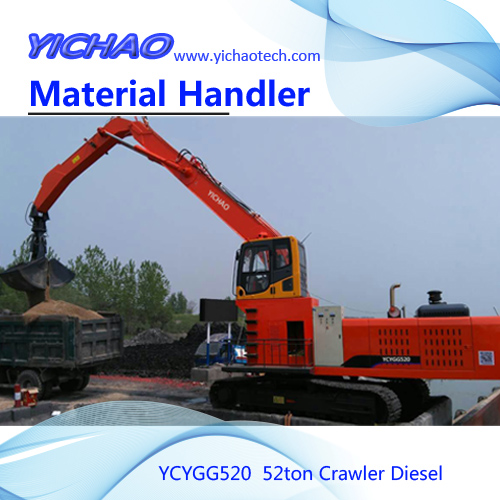

Crawler Diesel Material Handling Machine YCYGG520

Crawler Diesel Material Handling Machine YCYGG520
  • Enquiry Now!

    1.Basic parameter

    item unit YCYGG520
    Operating weight kg 51600
    Transporting size mm 15800x3400x3350
    Engine Model Cummins 6LTAA8.9-C325
    Power kw 239
    Ratio rpm 2200
    Max torque n.m 1350
    Displacement L 8.9
    Fuel consumption g/kw.h 222
    Fuel tank volume L 390
    Hydraulic system Main pump Kawasaki K5V200DT
    Rated flow L/min 2×400
    Working pressure Mpa 31.5
    Main valve Korea Parker MVG-400
    Hydraulic oil volume L 504
    Hydraulic motor Swing motor Korea Sunjin SH360
    Walking motor Korea Doosan TM70
    Parameter Swing speed rpm 0-12
    Walking speed Km/h 0-5
    Max torque kn 260
    Grade ability % 35
    Ground pressure kpa 93
    Cabin Overall size mm 1800x1000x1620
    Swing support Rail diameter mm 1465
    Four wheel,one track PC400
    Cylinder Korea technology,Imported seals

    2.Main size

    Main size unit YCYG520
    Upper width mm 3300
    Cabin lifting height mm 1795
    Tail swing radius mm 4600
    Min clearance mm 400
    Balance weight clearance mm 1190
    Distance from Guide wheel to driving wheel mm 4260
    Track length mm 5200
    Track distance mm 2800
    Track width mm 600
    Max width mm 3400
    Arm length mm 9600
    Stick length mm 5000
    Clamshell volume m3 3.0   weight≤2.ton
    Max grabbing height mm 10350
    Radius at mas grabbing height mm 8390
    Max grabbing depth mm 8550
    Radius at max grabbing depth mm 9247
    Max grabbing radius mm 13865
    Min grabbing radius mm 3200
    Grabbing weight at max grabbing radius kg 2000

    3.Working radius
