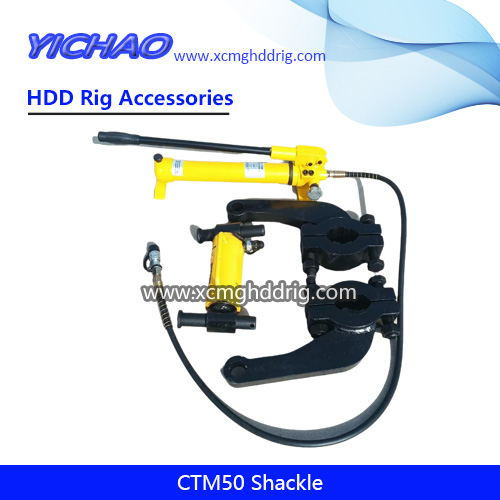

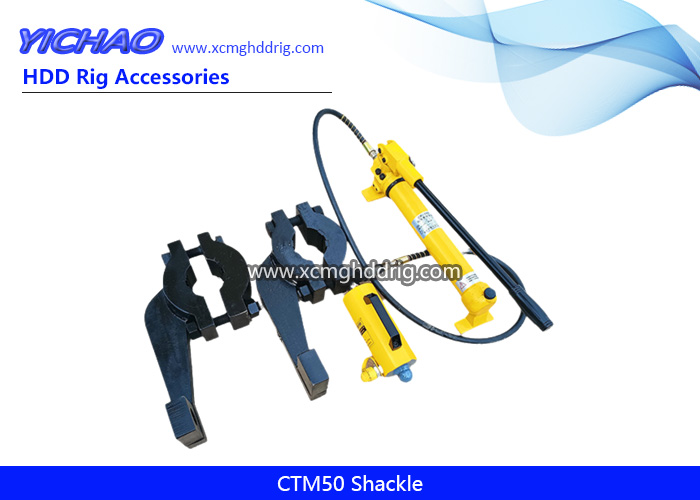

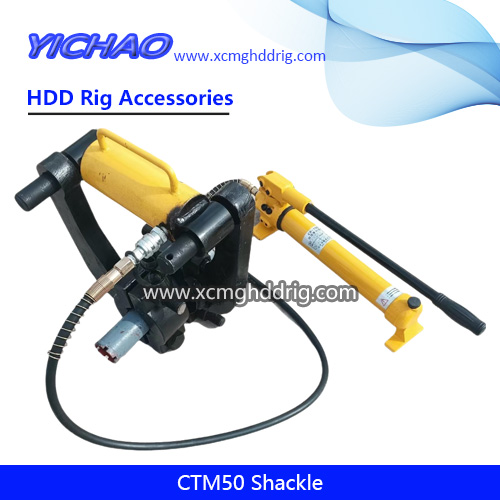

CTM50 Manaul Hydraulic Shackle Pipe Wrench Kit Breakout Tool for HDD Drilling Rig
CTM50 Manual Hydraulic Shackle Pliers Technical Parameters
1. Clamping diameter: 50~90mm
2. Shackle torque: 50KN.m
3. Hand pump pressure/weight/oil storage tank: 70MPA/5kg/1L
4. Oil cylinder thrust/stroke/weight: 200KN/150mm/9kg
5. Weight of shackle pliers handle: 25kg x 2
6. Size of shackle pliers handle: 480x300x120mm
