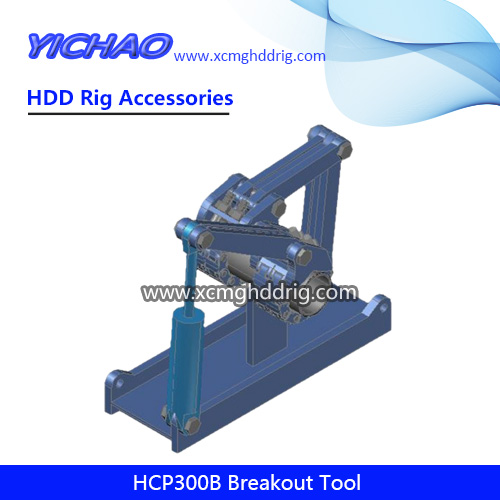

HCP300B Portable/Manual Hydraulic Chain Tong Wrench Kit Drilling Rig/Rods Breakout Tool
HCP300B Portable/Manual Hydraulic Chain Tong Main Technical Data
1. Chain tong clamping diameter: 25.4 x (number of chain links – 0.5) mm
2. Maximum shackle on/off torque: 300KN.M
3. Clamping diameter: 100-320mm (increase the diameter by adding chain links)
4. The maximum pressure of the electric hydraulic pump is 63 MPa
5. Weight of hydraulic pump: 40KG
6. Electric pump oil tank capacity: 16L
7. Power supply/power: 380V/1500W
8. Maximum tensile force of oil cylinder: 450KN
9. Maximum pressure of oil cylinder: 63MPA
10. Cylinder stroke: 300mm
11. Weight of oil cylinder: 42KG
12. Oil pipe length: 3000mm x 2
13. Working dimensions of chain tongs: 1200x550x1000mm
