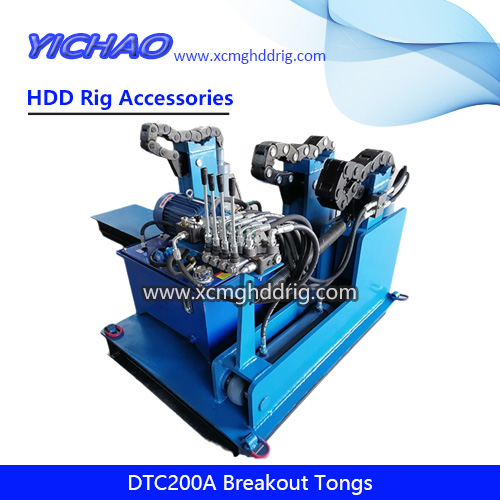

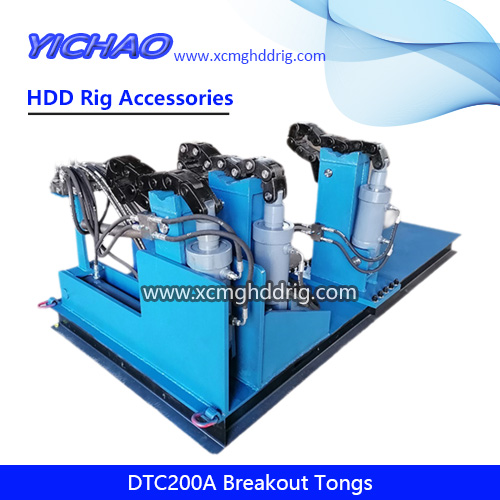

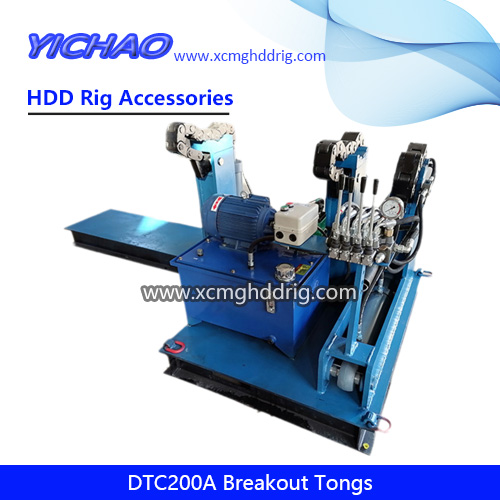

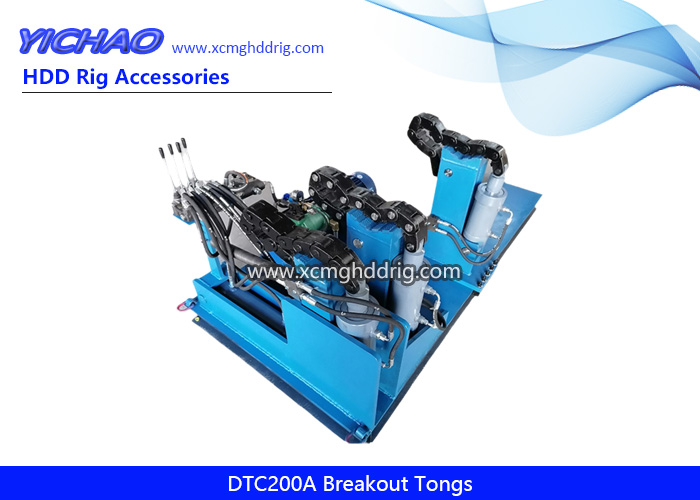

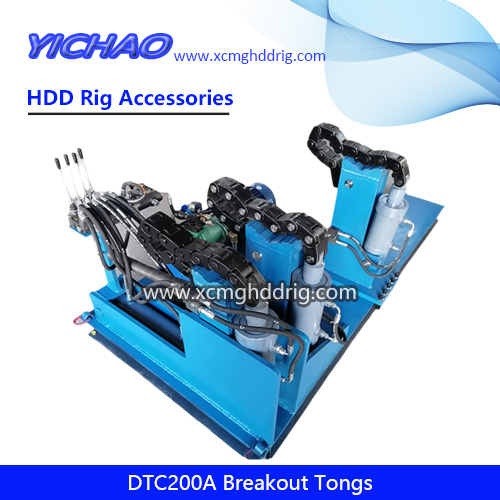

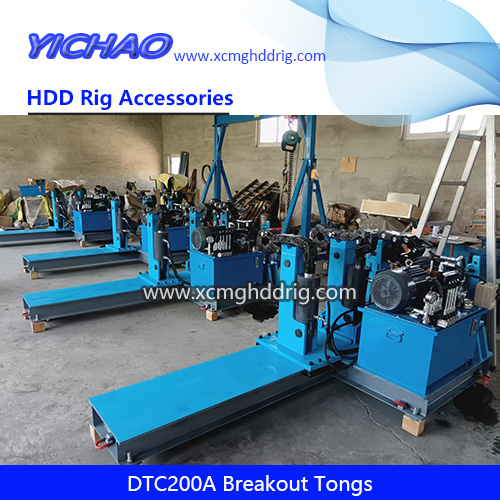

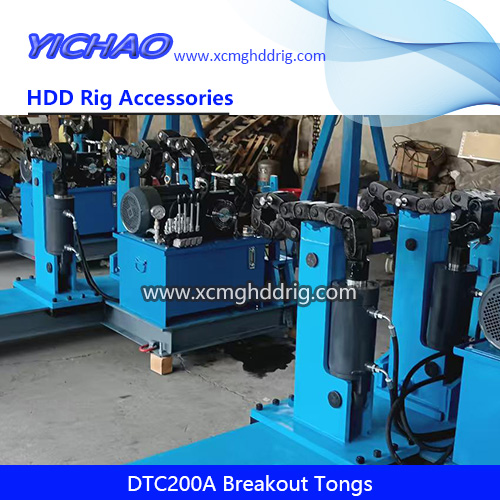

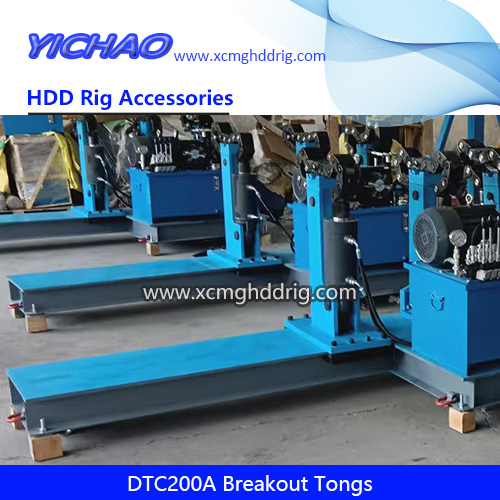

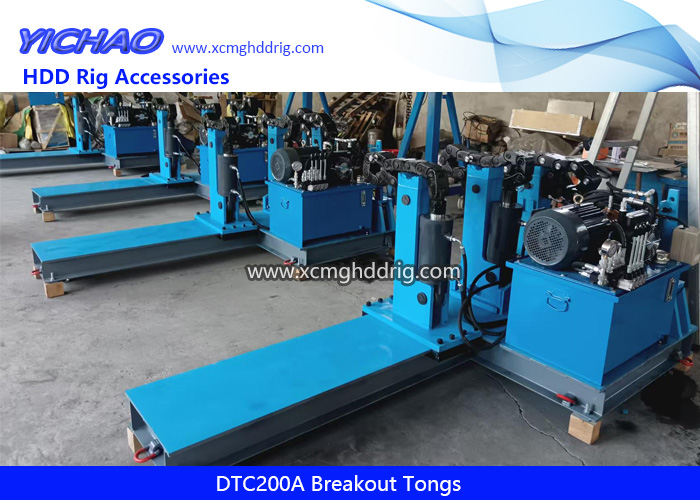

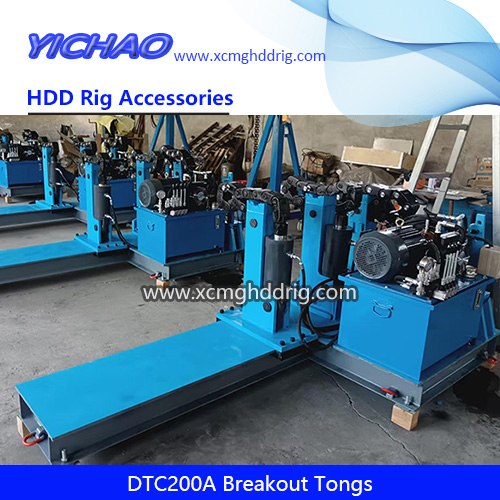

DTC200A HDD Drill Pipe/Rods Hydraulic Power Wrenches Breakout Tongs
DTC200A Main Parameters
1. Applicable drill diameter: 100-300mm or larger diameter, simply add a chain.
2. Chain links: 11 links x 3
3. Hydraulic pump flow rate: 15L/min
4. Working pressure: 20 MPa
5. Main tong cylinder thrust: 200KN
6. Tension of main tong oil cylinder: 140KN
7. Clamping cylinder force: 140KN
8. Motor power: 4kW
9. Three-phase power supply: 380V
10. Shackle torque: 200KN.m
11. Make-up torque: 130kN.m
12. Approximate weight: 1200kg
