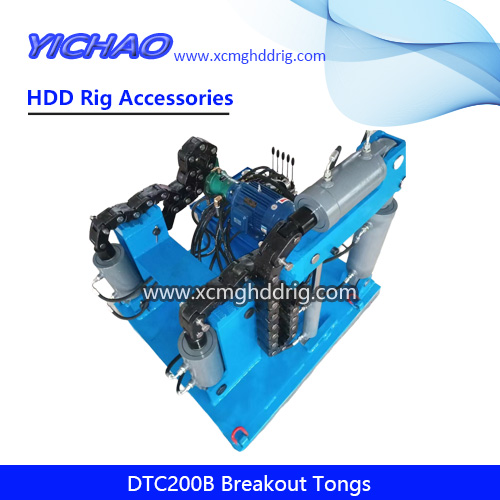

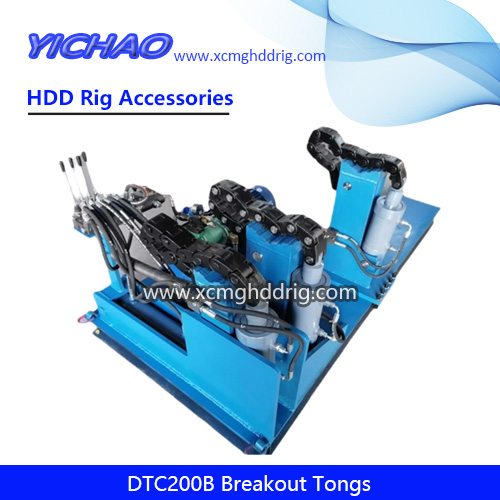

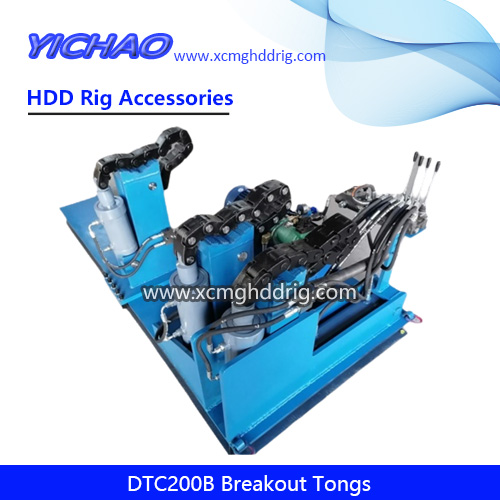

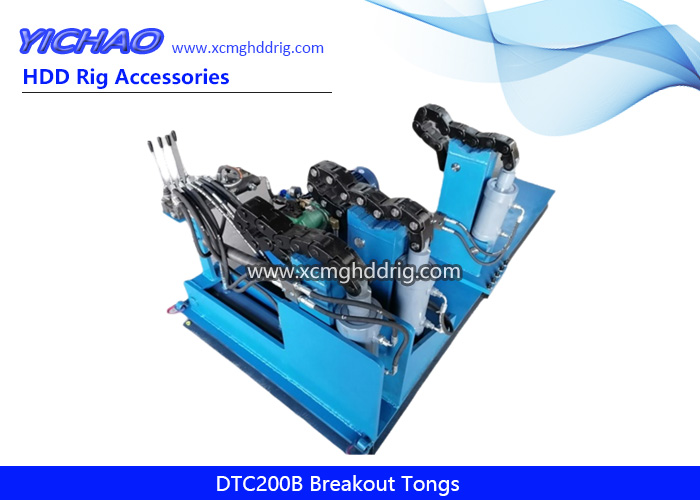

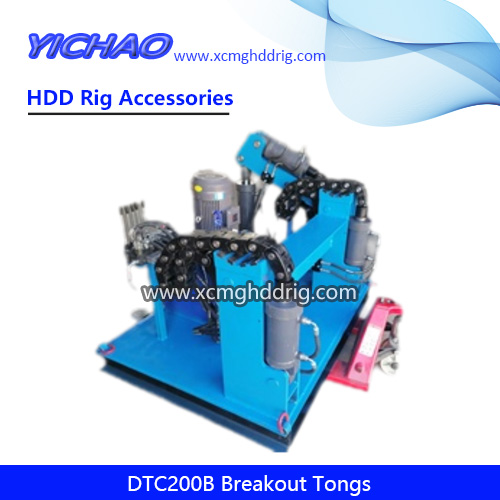

DTC200B Breakout Tongs Wrench Kit for Drilling Pipe and Drill Rod Tools
DTC200B Main Parameters
1. Applicable drill tool diameter: 3-14 in (increasing the number of chain links can clamp larger pipe diameters)
2. Chain links: 13 links x 3
3. Shackle torque: 200KN.m
4. Hydraulic pump flow rate: 15L/min
5. Working pressure: 20 MPa
6. Thrust of main tong cylinder: 250KN
7. Tension of main tong cylinder: 170KN
8. Clamping cylinder force: 170KN
9. Hydraulic pump station power: 4Kw/178F
10. Shackle torque: 200KN.m
11. Make-up torque: 130kN.m
12. Dimensions: 1300x1000x1200mm
13. Approximate weight: 1100kg
