HCP200 Electric Hydraulic Chain Shackle HDD Drilling Rig/Rods Breakout Tong

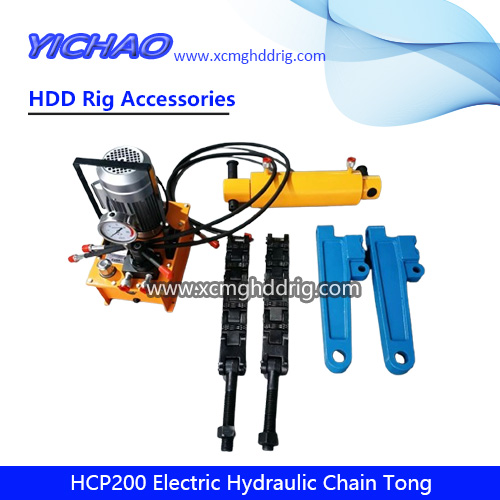

HCP200 Electric hydraulic chain tong
1. Clamping diameter: 25.4 x (Number of chain links-0.5)mm
2. Max. screwing/shackling torque: 200 kN.m
3. Clamping diameter: 70-300 mm or larger
4. Weight per chain link: 2.5 kg/link
5. Weight of tong body: 23 kg/pc
6. Overall dimension: 560×180×80 mm
7. Electric hydraulic pump max.pressure: 63 MPa
8. Hydraulic pump weight: 30 kg
9. Electric pump oil tank capacity: 16 L
10. Power: 220 V (380 V) /1500 W (750 W)
11. Cylinder max. thrust force: 500 kN
12. Cylinder max. pressure: 63 MPa
13. Cylinder stroke: 250 mm
14. Cylinder weight: 38 kg
15. Cylinder dimension : 130×200×600 mm
16. Oil tube length: 2000 mm x 2
17. Working dimension: 800x650x300 mm
