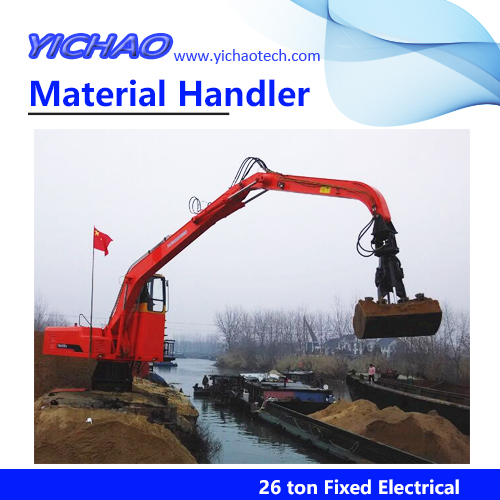

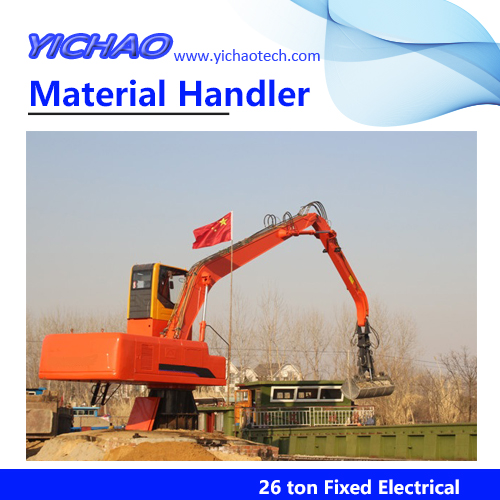

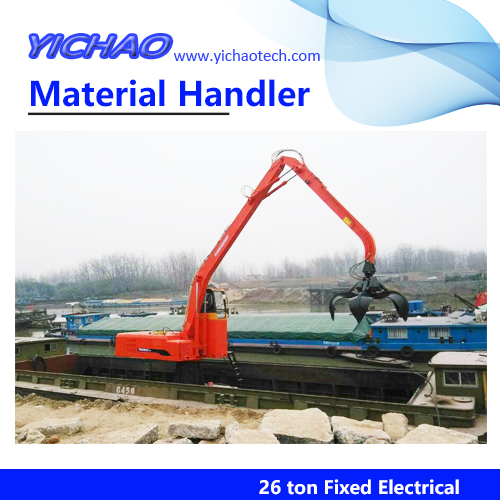

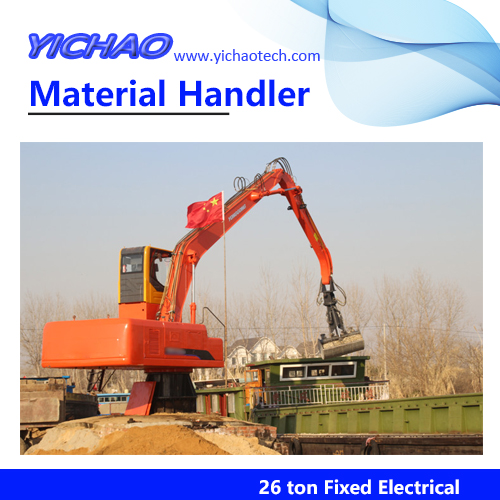

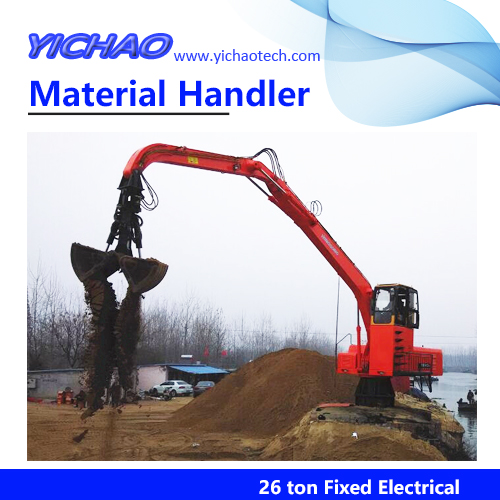

26 ton Fixed Material Handling Equipment YGG260

26 ton Fixed Material Handling Equipment YGG260
  • Enquiry Now!

    1.Product Introduction

    1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation;
    2. The electrical system has protection functions such as overcurrent, overload and leakage;
    3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power;
    4. Double pump combined flow and multi-action compound to improve work efficiency;
    5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect;
    6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep;
    7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers;
    8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure;
    9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms;
    10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system;
    11. Fixedly increased streamlined appearance driver’s cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment;
    12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.


    Operating weightkg21300
    Specific fuel consumptiong/kw.h≤227
    Fuel tank capacityL240
    Hydraulic systemMain pumpKawasakiK3V112DT
    Rated flowL/min2X165+20
    Working pressureMpa31.5
    Main valveParkerAV-280
    Hydraulic tank capacityL340
    Hydraulic motorSwingSUNJINSJB220
    Performance parameterSwing speedrpm0-9
    CabinOverall dimensionsmm1800x1000x1620
    swing ringOrbital diametermm1250
    Slip ring250A
    CylinderZhucheng longyuan oil cylinder, the south Korean technology import seal


    Main dimensions(mm)YGG260
    Upper full width (not including body foot pedal)3000
    Cabin width1000
    Cabin height4050
    Tail swing radius4010
    Boom length9600
    Stick length5000
    Grapple capacity1.5.-2.5m³Multi-tine grab Bulk density ≤2.0 tons
    1.0m³Clamshell Scrap job
    Counter balance clearance1000
    Max. grabbing height9050
    Max. grabbing radius13480
    Max.grasping distance at max height9165
    Max. grabbing depth9335
    grasping distance at max grabbing depth8940
