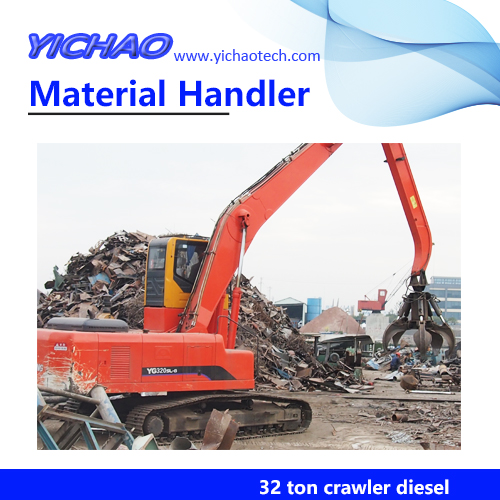

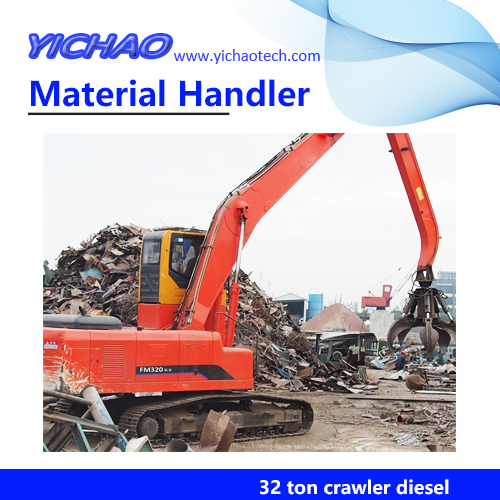

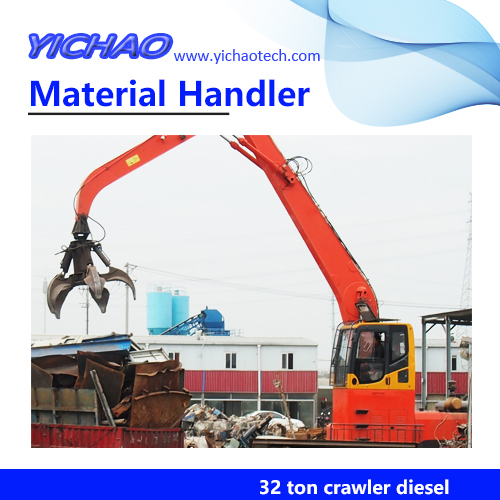

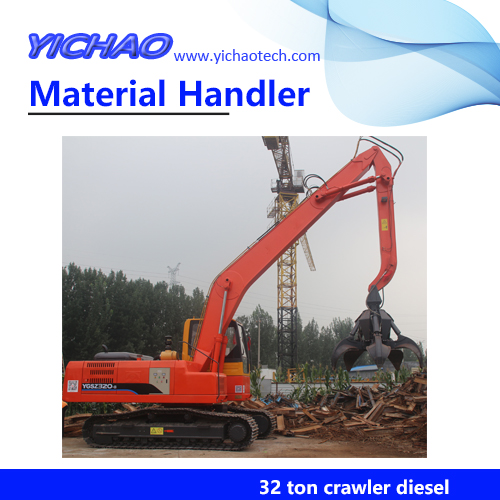

32 ton Crawler Diesel Hydraulic Metal Scrap Grapple YGSZ320

32 ton Crawler Diesel Hydraulic Metal Scrap Grapple YGSZ320
  • Enquiry Now!

    1.Product Introduction

    1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation;
    2. The electrical system has protection functions such as overcurrent, overload and leakage;
    3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power;
    4. Double pump combined flow and multi-action compound to improve work efficiency;
    5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect;
    6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep;
    7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers;
    8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure;
    9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms;
    10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system;
    11. Fixedly increased streamlined appearance driver’s cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment;

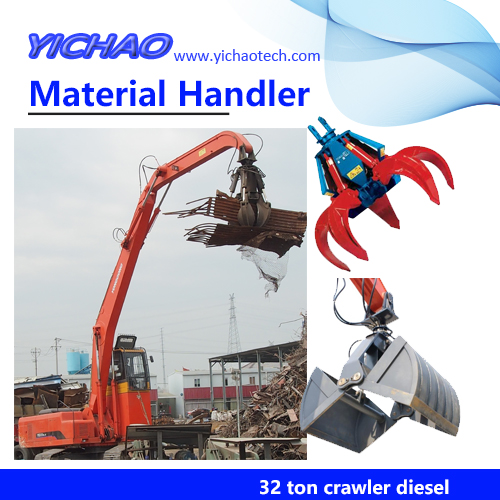

    12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.


    Item UnitYGSZ320
    Operating weightkg30600
     fuel consumptiong/kw.h≤204
    Fuel tank capacityL240
    Hydraulic system Main pumpKawasakiK3V112DT
    Rated flowL/min2X240+30
    Working pressureMpa31.5
    Main valvePARKERAV-280
    Hydraulic tank capacityL340
    Hydraulic motorTravelDOOSANTM40
    Performance parameterSwing speedrpm0-12
    Max. pulling forcekn180
    Travel speedKm/h0-4.5
    Max Gradient°28
    Ground pressurekpa44.6
    CabinOverall dimensionsmm1800x1000x1620
    swing supportOrbital diametermm1250
    Four wheels and trackAdopts DH series With DH series
    CylinderZhucheng longyuan oil cylinder, the south Korean technology import seal


    Main dimensions(mm)YGSZ320
      Upper full width (not including body foot pedal)3000
      Cabin width1000
      Cabin height3030
      Tail swing radius2840
    Balance weight distance from ground1105
    Min.clearance to the ground480
    Distance from guide pulley to driving wheel3645
    Track length4440
    Track inner distance2390
    Track pads width600
    Track outer distance with 600mm track2990
    Boom length6000
    Stick length4500
    Bucket capacity0.5m³ orange peel grab steel crap dealing
    0.5m³Clamshell Scrap job
    1.8m³Clamshell bucket capacity≤2
    1.8m³Multi-tine grabBulk density ≤2.0 tons
    Max. grabbing height7610
    Max. grabbing radius10193
    Grabbing radius at max grabbing height4980
    Max. grabbing depth5190
    Grabbing radius at max grabbing depth6260
