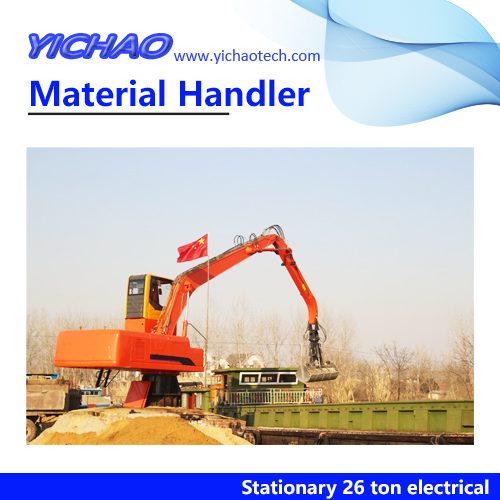

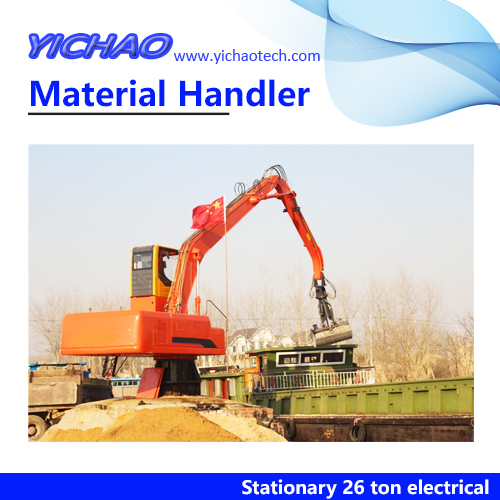

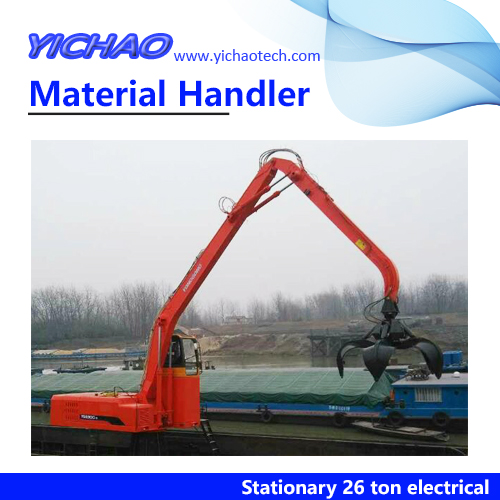

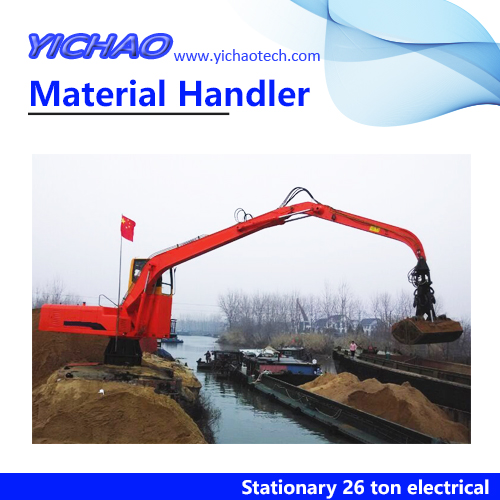

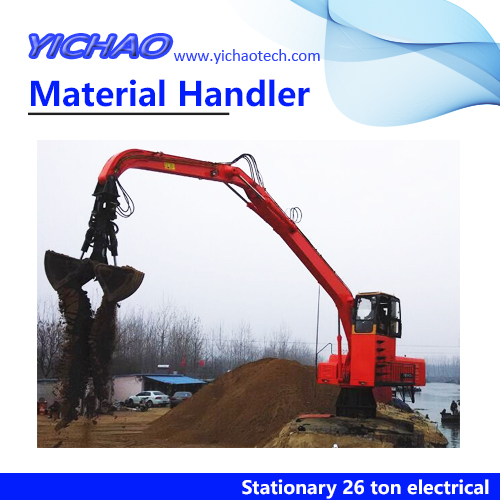

26 ton Crawler Excavator Rotating Solid Stone Stationary Material Handler YGSZ260

26 ton Crawler Excavator Rotating Solid Stone Stationary Material Handler YGSZ260
  • Enquiry Now!

    1.Product Introduction

    1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation;
    2. The electrical system has protection functions such as overcurrent, overload and leakage;
    3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power;
    4. Double pump combined flow and multi-action compound to improve work efficiency;
    5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect;
    6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep;

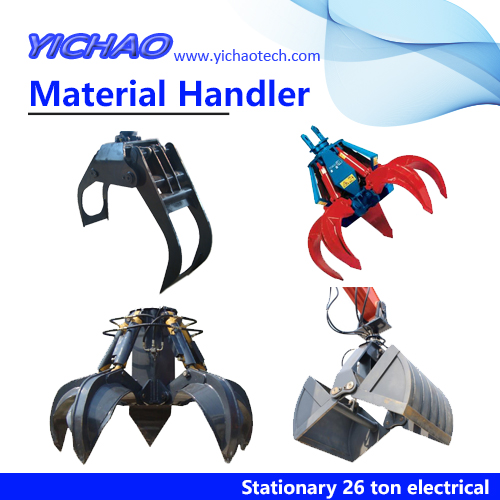

    7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers;
    8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure;
    9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms;
    10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system;
    11. Fixedly increased streamlined appearance driver’s cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment;
    12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.


    Item UnitYGSZ260
    Work weightkg23200
     fuel consumptiong/kw.h≤215
    Hydraulic tank capacityL180
    Hydraulic system Main pumpKawasakiK3V63DT
    Rated flowL/min2X120+30
    Working pressureMpa31.5
    Main valveParkerAV-170
    Hydraulic tank capacityL210
    Hydraulic motorTravelDoosanTM22
    SwingKorea SUNJINSDS140C
    Performance parameterSwing speedrpm0-12
    Max pulling forcekn113
    Travel speedKm/h0-4
    Max Gradient°26
    Ground pressurekpa39.4
    CabinOverall dimensionsmm1800x1000x1620
    swing supportOrbital diametermm1012
    Four Wheels and trackEX series
    CylinderZhucheng longyuan oil cylinder, the south Korean technology import seal


    Main dimensions(mm)YGSZ260
      Upper full width (not including body foot pedal)2490
      Cabin wide1000
      Cabin height2930
      Tail swing radius2200
    Balance weight height from the ground920
    Min.clearance to the ground440
    Distance from guide pulley to driven wheel2780
    Track length3800
    Track distance2000
    Track pads width600
    Track width with 600mm track2600
    Boom length5000
    Stick length3500
    Bucket Capacity0.45m³ Clamshell Scrap job
    1.3m³Multi-tine grab capacity ≤1.8tons
    Max. grabbing height6160
    Max. grabbing radius8250
    Grabbing radius at max grabbing height3830
    Max. grabbing depth6715
    Grabbing radius at max grabbing depth4665
