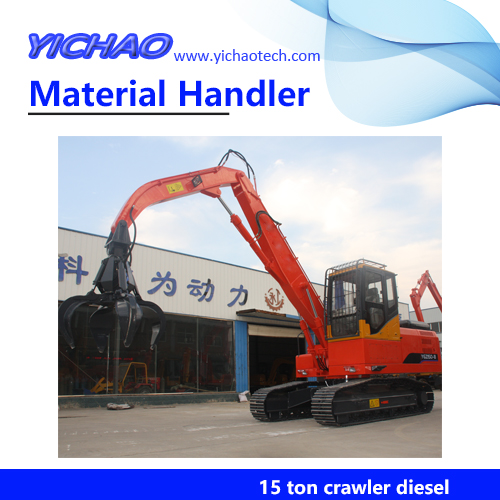

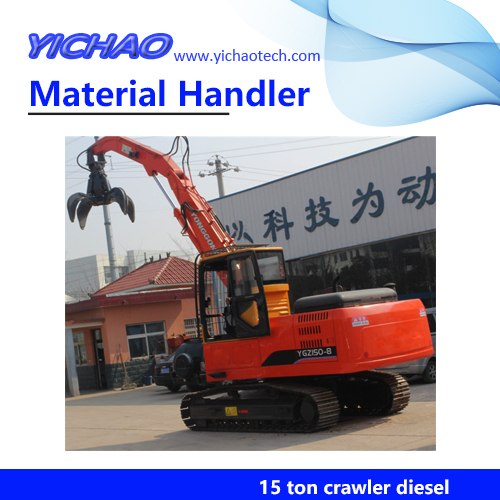

15 ton Crawler Excavator With Grap For Steel Grabber YGSZ150

15 ton Crawler Excavator With Grap For Steel Grabber YGSZ150
  • Enquiry Now!

    1.Product Introduction

    1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation;
    2. The electrical system has protection functions such as overcurrent, overload and leakage;
    3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power;
    4. Double pump combined flow and multi-action compound to improve work efficiency;
    5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect;
    6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep;
    7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers;
    8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure;
    9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms;
    10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system;
    11. Fixedly increased streamlined appearance driver’s cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment;
    12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.


    Operating weightkg14400
         Fuel consumptiong/kw.h≤205
    Fuel tank capacityL160
    Hydraulic system Main pumpKawasakiK3V63DT
    Rated flowL/min2X120+30
    Working pressureMpa31.5
    Main valvePARKERAV-170
    Hydraulic tank capacityL190
    Hydraulic motorTravelDOOSANTM18
    Performance parameterSwing speedrpm0-12
    Max. pulling forcekn105
    Travel speedKm/h0-4
    Max Gradient°28
    Ground pressurekpa41.6
    CabinOverall dimensionsmm1430x960x1620
    swing supportingOrbital diametermm1000
    Four-wheel and trackAdopt  PC100 series
    CylinderZhucheng longyuan oil cylinder, the south Korean technology import seal


    Main dimensions(mm)YGSZ150
      Upper full width (not including body foot pedal)2480
     Cabin width960
      Cabin height3230
      Tail swing radius2200
    Balance weight distance from the ground920
    Min.clearance to the ground440
    Guide pulley distance from driving2600
    Track length3640
    Track inner distance1900
    Track pads width500
    Track outer distance with 500mm track2400
    Boom length4500
    Stick length2900
    Bucket Capacity0.4m³
    Max. grabbing height5710
    Max. grabbing radius6820
    Grabbing radius at max grabbing height2030
    Max. grabbing depth4490
    Grabbing radius at maximum grabbing depth4045
