XCMG XZ3000 300ton horizontal directional drilling machine

XCMG XZ3000 300ton horizontal directional drilling machine
  • Enquiry Now!

    XZ3000 Horizontal Directional Drill(HDD)
    Technical Specification
    XCMG Foundation Construction Machinery Co.; Ltd.

    Technical Specification
    XZ3000 Horizontal Directional Drill Technical Specification
    Product Model:XZ3000 Horizontal Directional Drill
    Manufacturer:Xuzhou Xugong Foundation Construction Machinery Co.; Ltd.

    XZ3000 HDD structure adopts crawl chassis, control house is available. It uses the power saving closed hydraulic system, equipped with electro-hydraulic proportion control, efficient advanced load sensitivity and XCMG’s patent technical. The main technical specifications reach the advanced level in international. The main components of hydraulic system, transmission, electric system and gearbox are made of world first-class brand products, good performance, good reliability.

    1. Features Introduction

    1.1 Equipped with closed energy-saving circuit, load sensing control, electro-hydraulic proportional control and other advanced technology, Using the international famous brand components, reliable quality。

    1.2 Rack and pinion sliding, ensure the stability and drive operational reliability of the Rotation box. Rotation box floating can greatly protect the drill pipe threads, improving the service life of drill pipe.

    1.3 Independent control room, configuration of the heating and air conditioning.Instrument and operating handle layout.

    1.4 Dual power system. Any engine start can complete all the action of the vehicle. Cummins Engine, powerful, ample power reserves to meet drill construction in different working conditions.

    1.5 Full floating vise, shackles torque, clamping and reliable.

    1.6 Drill rotation and push and pull all adopt digital pressure adjustment technology. Convenient adjustment and reliable and can be preset.

    2.Technology Introduction

    2.1 Chassis

    XZ3000 HDD adopts crawl chassis. It can fitted to more kind of ground and has high reliability. The travel gearbox producing by world first-class brand make it possible of good performance, good reliability.



    Distance between wheel’s axis                         4027 mm
    Width between two tracks outside                    3050 mm
    Width of track                                                   600 mm
    Length between two tracks                              2450 mm
    Number of track roller                                      9×2
    Gearbox of travelling                                       German Rexroth GFT60×2
    Drive force                                                       322kN
    Gradient                                                          30%
    Travelling speed                                             2km/h
    Ground pressure                                            105kPa
    Weight                                                             55t

    2.2 Engine

    The powerful engine has the turbine torque increment characteristic. It meets for the request of China Stage I.

    Model of engine                                              NTA855-C400
    Rated power                                                   298kW×2
    Max torque of engine                                      1627 N.m /(1400r/min)
    Model of transfer case                                    Stiebel 4380
    Transfer case speed ratio                               1.1481(speed up)
    Rated speed of engine                                   2100 r/min
    Emission of engine                                         China Stage I
    Capacity of fuel                                              1050L

    2.3 Hydraulic System

    Rotation adopts the closed hydraulic system. The movements of push or pull adopt load sensitivity technology. World first-class brand’s components can provide good performance and good reliability.

    Rotation system

    Pump                                          Sauer H1P-130×2
    Rate of flow                                615L/min
    Pressure                                     350bar
    Motor                                          Sauer H1B-110×4

    Push and pull system

    Pump                                                    Sauer H1P-100×4
    Rate of flow                                          950L/min
    Pressure                                              350bar
    Motor                                                    Sauer H1B-110×6
    Capacity of Hydraulic oil tank               700L

    2.4 Electronic system

    The HDD adopts intelligent and CAN bus control technology. The meter shows clearly and easy to see.

    The HDD shows the actual torque and push or pull force immediacy in the large and high showing size monitor automatic.

    PLC control technology can detect the engine speed, the temperature of cooling water, the pressure of lubrication, the temperature of hydraulic oil, the pressure or stoppage of filter element, the position of carriage etc. It can also alarm to the operator in wrong condition.

    The HDD travel safety at stepless speed regulation and controlled by wire cable.

    The multi-speed control of rotation and push or pull make HDD be suitable to the complex geology.

    Voltage of electronic                     DC24V
    Controller                                    PALFIN TTC60
    Handle                                        Sauer MCH22

    2.5 Drill frame

    The entry angel is changed by adopting the link weldment and cylinder. It has the advantage of simple and safety.

    The drill frame is made by high tension steel. The pipe support is used in adding or take off the pipe. It is easy to operation and clip. It is convenient for the reason of the drill frame slide by the cylinder.

    The distance of the drill frame slide                 3000 mm
    Entry angle adjust by drill frame                       8~18°

    2.6 Carriage

    Push or pull is executed by rack and pinion. The HDD also use the floating axis to protect the pipe’s thread. The rapid speed is carried out by the variable motor. The speed of carriage and the force of push or pull can be executed steplessly.

    Push/pull force                                              3000kN
    Carriage speed                                             25m/min
    Torque                                                         110000N·m
    Spindle speed                                              76r/min
    Distance of carriage moving                         11600mm
    Gearbox of rotation                                       Bonfiglioli 314L3

    2.7 Clamp

    The HDD is fitted with the clamp so that the pipe can be gripped tightly. The clamp can move from the end of drill frame to another end of the drill frame. And it can do great good to operation in cathead condition. The fixed wise and rotation wise can separate or integrate. It has a good sight of clamp and is good to change the tooth.

    Torque of clamp                                    181400N·m
    Rotation angle                                      22°
    Distance of clamp separation                210mm

    2.8Control room (optional)

    Independent control room, with air condition can lift and go down by cylinder. It is also fitted with light, windscreen wiper, sunshade curtain, damping seat and suit for operation. All these increase comfortable while operating the HDD.

    Length of control room                3500
    Width of control room                  2430
    Hight of control room                   259
    Model of air condition                  Gree

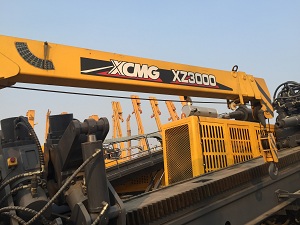

    2.9 Loader Crane(optional)

    The HDD is assembled XCMG’s 3.2T loader crane. It was controlled by hand and It operate vey convenience.
    Weight of lift                                   3.2t
    Max distance of lift                        6.32m
    Torque of Loader Crane               6t·m

    2.10 Pipe and tools (optional)

    Petrol pipe and No-dig pipe is available. water wing back reamer, expander back reamer,compact fluted backreamer or the others special tools is available. The diameter is 300 to 1500, The max distance which can deal with is 2500m. The customer should determine what kind of tools, joint, swivel will be used depend on the geology at the operation site.

    Diameter of pipe                                  φ140mm
    Length of pipe                                      9600mm
    Joint of pipe                                          5 -1/2FH

    Note. The force and torque on the pipe can’t reach to max at the same time. Please to obey the rules of the pipe. This can avoid the thread cement of the pipe.

    3. Main technical parameters

    Engine
    Manufacturers                                  Cummins
    Model                                                 NTA-855
    Power rating                                     2×298/2100 kW/ r/min

    Thrust-Pull
    Max pull/thrust force                      3000/3000 kN
    Max pull/thrust speed                     0~25m/min

    Rotation
    Torque                                             110000 N.m
    Max spindle speed                          76 r/min

    Pipe
    Diameter ×Length                          φ140 mm×9.6m

    Max inclination angle                      16°

    Loader crane
    Lifting weight                                         3.2 t
    Loading torque                                      6.4 t•m

    Travel driving
    Style                                                  Steel crawler self-propelled
    Traveling speed                               2 km/h

    Mud pump
    Style                                              Hydraulic drive (external drive)

    Weight                                           55t

    Dimension
    L×W×H                                        17500 ×3300×3600 mm

    4. Core parts subsidiary

    Name Manufacturer

    Engine                                                  Cummins
    Transfer case                                      Stiebel
    Rotary pump                                       SAUER
    Push pump                                          SAUER
    Clamp pump                                        SAUER
    Rotary Motor                                      SAUER
    Rotary reducer                                   BONFIGLIOLI
    Push Motor                                         SAUER
    Push reducer                                      BONFIGLIOLI
    Controller                                            PALFIN
    Main valve                                          SAUER
    Handle                                                 SAUER
    Walking speed reducer                     REXROTH
    Hydraulic cylinders                           XCMG
    Lorry crane                                        XCMG
    Hydraulic tubing                                XCMG

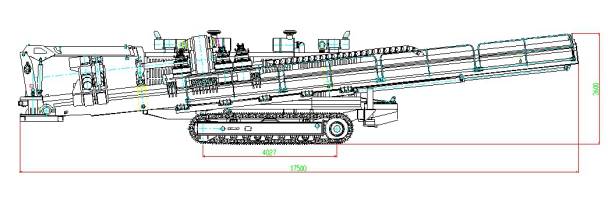

    5. The Machine Appearance and Transportation

    The machine transportation Dimension                                          17500×3300×3600mm
    Shiping weight(free of Drill and Drilling Tools)                                 55t

    6.Accompanied Attached Documents

    XZ3000 HDD machine start when accompanied by the packing list, include the following technical documents.

    Product certificate
    Product Manual
    Engine Specification
    Mud Pump Instruction Manual(Special grade Configuration)
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)

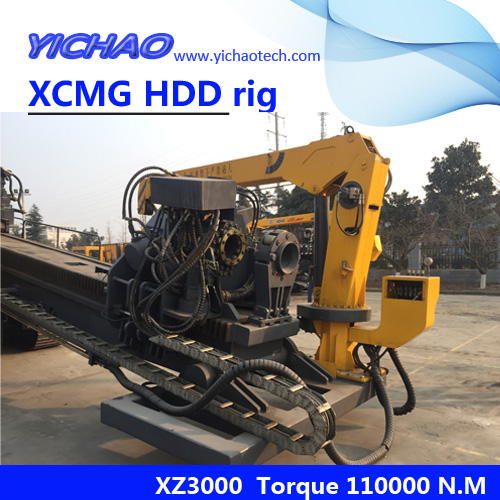

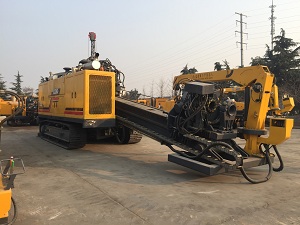

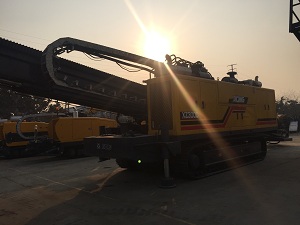

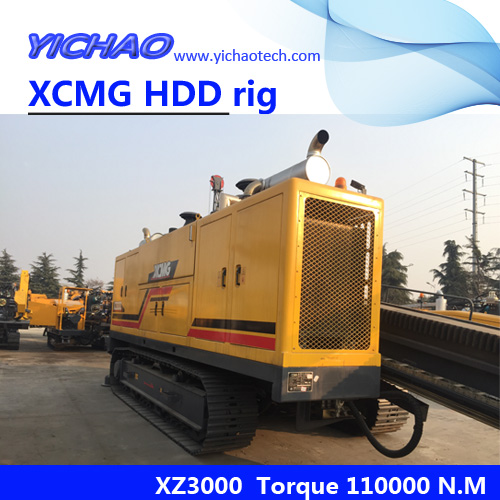

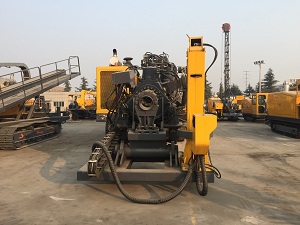

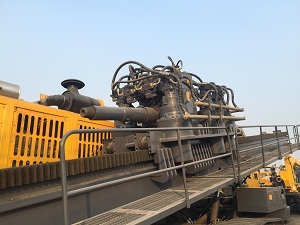

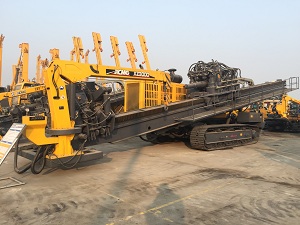

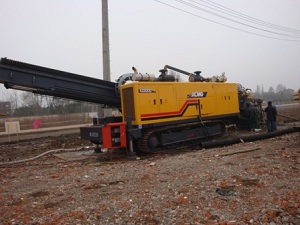

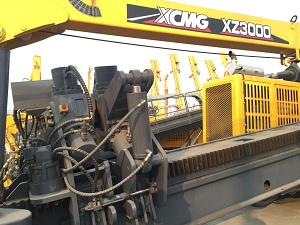

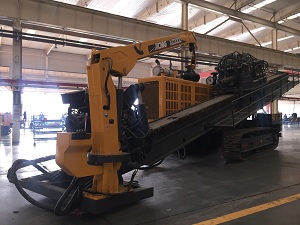

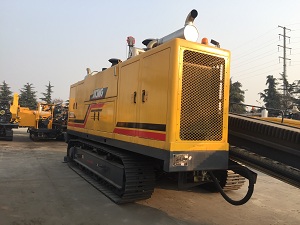

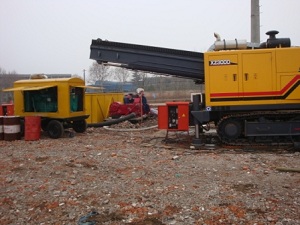

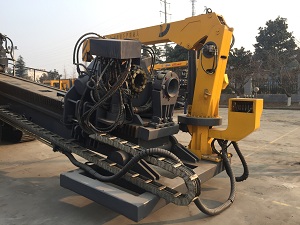

    7.More photos.



    Advances in technology design, we can not change the product effective notice to you, please forgive me!
