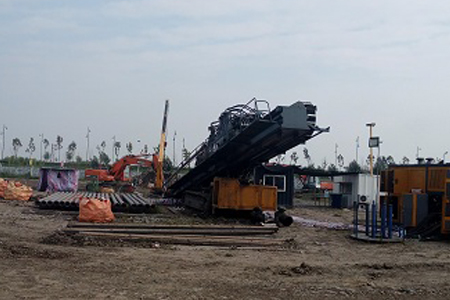

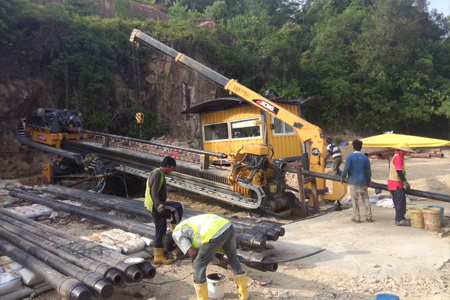

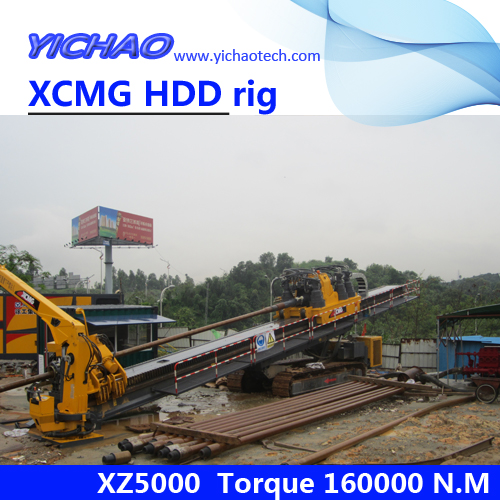

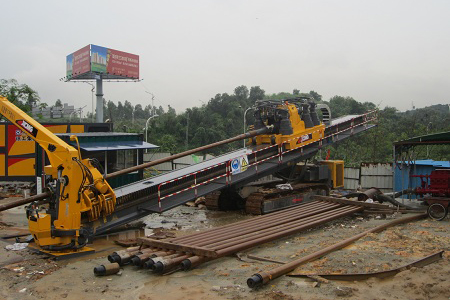

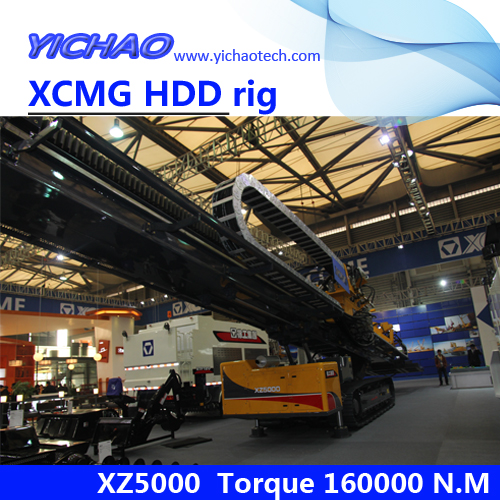

    XZ5000 XCMG horizontal directional drilling rig Technical Specification
    Product Model:XZ5000 Horizontal Directional Drill
    Manufacturer:Xuzhou Construction Machinery Group Co.; Ltd.

    XZ5000 XCMG horizontal directional drilling rig structure adopts crawl chassis, control house is available. It uses the power saving closed hydraulic system, equipped with electro-hydraulic proportion control, efficient advanced load sensitivity and XCMG’s patent technical. The main technical specifications reach the advanced level in international. The main components of hydraulic system, transmission, electric system and gearbox are made of world first-class brand products, good performance, good reliability.

    1.Features Introduction of XZ5000 XCMG horizontal directional drilling rig

    1.1 Equipped with closed energy-saving circuit, load sensing control, electro-hydraulic proportional control and other advanced technology, Using the international famous brand components, reliable quality.

    1.2 Rack and pinion sliding, ensure the stability and drive operational reliability of the Carriage. Carriage floating can greatly protect the drill pipe threads, improving the service life of drill pipe.

    1.3 Volvo high horsepower engine is adopted to ensure that the drilling rig can complicated geological conditions.

    1.4 Dual power system. Any engine start can complete all the action of the vehicle. Cummins Engine, powerful, ample power reserves to meet drill construction in different working conditions.

    1.5 The clamp has three cylinder clamping so that drill pipe clamping reliable and shackle torque is enough. Full floating clamp, shackles torque, clamping and reliable.

    1.6 Drill rotation and push and pull all adopt digital pressure adjustment technology. Convenient adjustment and reliable and can be preset.

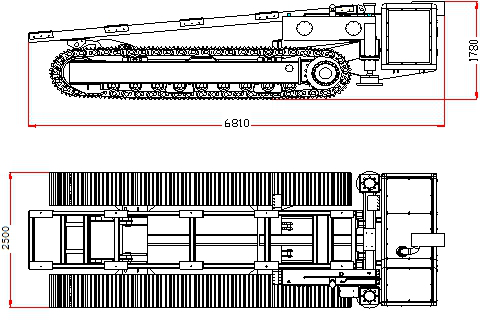

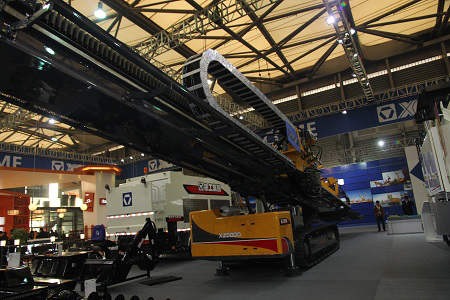

    2.1 XZ5000 XCMG horizontal directional drilling rig adopts crawl chassis. It can fitted to more kind of ground and has high reliability. The travel gearbox producing by world first-class brand make it possible of good performance, good reliability.

    Length of track 4930 mm
    Width between two tracks outside 2500 mm
    Width of track 600 mm
    Distance between wheel’s axis 4027 mm
    Number of track roller 9×2
    Gearbox of traveling German Rexroth GFT60×2
    Drive force 333kN
    Gradient 30%
    Travelling speed 0.9km/h
    Ground pressure 105kPa
    Weight 55t

    2.2 Engine

    Power unit:The powerful engine has the turbine torque increment characteristic is made by Volvo.It meets for the request of China Stage II

    Model of engine TAD1345VE
    Rated power 394kW/(1800r/min) ×2
    Max torque of engine 2325 N·m /(1260r/min)
    Rated speed of engine China Stage II
    Capacity of fuel 1950L

    Engine on chassis.The powerful engine has the turbine torque increment characteristic is made by Cummins. It meets for the request of China Stage II

    Model of engine 6BTAA5.9-C180
    Rated power 132kW/(2200r/min)
    Max torque of engine 770 N·m /(1500r/min)
    Rated speed of engine 2200 r/min
    Emission of engine China Stage II
    Capacity of fuel 170L

    2.3 Hydraulic System

    Rotation adopts the open hydraulic system. The movements of push or pull adopt load sensitivity technology. World first-class brand’s components can provide good performance and good reliability.

    Rotation system

    Pump Rexroth A11L ×3/2/1
    Rate of flow 520L/min
    Pressure 320bar
    Motor Rexroth A6V ×6

    Push and pull system

    Pump Rexroth A11L 3/2/1
    Rate of flow 520L/min
    Pressure 320bar
    Motor Rexroth A6V ×6
    Manual reset relay AMCA PR-3211-B05
    Capacity of Power unit Hydraulic oil tank 2050L
    Capacity of chassis Hydraulic oil tank 210L

    2.4 Electronic system

    Electronic system equipped with electric start button,fuse box and power master switch.

    The XZ5000 XCMG horizontal directional drilling rig adopts intelligent and CAN bus control technology. The meter shows clearly and easy to see.

    The HDD shows the actual torque and push or pull force immediacy in the large and high showing size monitor automatic.

    PLC control technology can detect the engine speed, the temperature of cooling water, the pressure of lubrication, the temperature of hydraulic oil, the pressure or stoppage of filter element, the position of carriage etc. It can also alarm to the operator in wrong condition.
    The HDD travel safety at stepless speed regulation and controlled by wire cable.

    The multi-speed control of rotation and push or pull make HDD be suitable to the complex

    Voltage of electronic DC24V
    Handle Sauer MCH22

    2.5 Drill frame

    The entry angel is changed by adopting the link weldment and cylinder. It has the advantage of simple and safety.

    The drill frame is made by high tension steel. The pipe support is used in adding or take off the pipe. It is easy to operation and clip. It is convenient for the reason of the drill frame slide by the cylinder.

    The distance of the drill frame slide 2500 mm
    Entry angle adjust by drill frame 8~16°

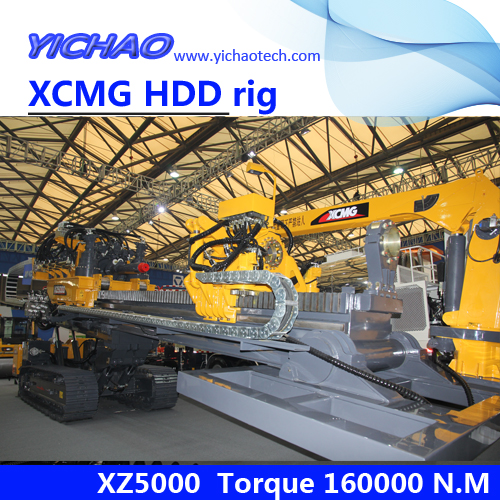

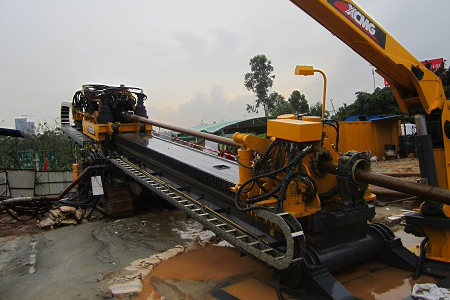

    2.6 Carriage

    Push or pull is executed by rack and pinion. The HDD also use the floating axis to protect the pipe’s thread. The rapid speed is carried out by the variable motor. The speed of carriage and the force of push or pull can be executed steplessly.

    Push/pull force 5000kN
    Carriage speed 28m/min
    Torque 160000N·m
    Spindle speed 90r/min
    Distance of carriage moving 11000mm
    Gearbox of rotation Bonfiglioli 309L
    Bonfiglioli 315 L3

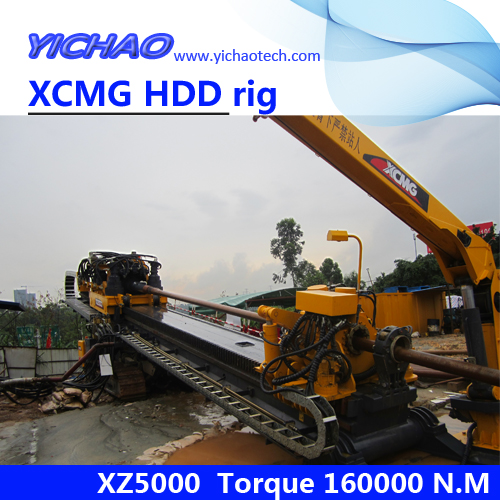

    2.7 Clamp

    The XZ5000 XCMG horizontal directional drilling rig is fitted with the clamp so that the pipe can be gripped tightly. The clamp can move
    from the end of drill frame to another end of the drill frame. And it can do great good to operation in cathead condition. The fixed wise and rotation wise can separate or integrate. It has a good sight of clamp and is good to change the tooth.

    Torque of clamp 337800N·m
    Rotation angle 22°
    Distance of clamp separation 300mm

    2.8 Control room (optional)

    Independent control room, with air condition can lift and go down by cylinder. It is also fitted
    with light, windscreen wiper, sunshade curtain, damping seat and suit for operation. All these increase comfortable while operating the HDD.

    Import Voltage AC 220V
    Length of control room 3500mm
    Width of control room 2438mm
    Hight of control room 2591mm
    Model of air condition Gree KFR-35W/KN(A)

    2.9 Loader Crane(optional)

    The XZ5000 XCMG horizontal directional drilling rig is assembled XCMG’s 5t Loader Crane. It was controlled by hand and It operate very

    Weight of lift 5t
    Max distance of lift 8.5m
    Torque of Loader Crane 12.5t·m

    2.10 Pipe and tools (optional)

    Petrol pipe and No-dig pipe is available. water wing backreamer, expander backreamer, compact

    fluted backreamer or the others special tools is available. The diameter is 300 to 1500, The max distance which can deal with is 2500m. The customer should determine what kind of tools, joint, swivel will be used depend on the geology at the operation site.

    Diameter of pipe φ168/φ194mm
    Length of pipe 9600mm
    Joint of pipe 6 -5/8FH

    Note. The force and torque on the pipe can’t reach to max at the same time. Please to obey the rules of the pipe. This can avoid the thread cement of the pipe.2、Main technical parameters

    3 Main technical parameters

    Power house
    Manufacturers Volvo
    Type TAD1345VE
    Rated power kW/( r/min) 394×2/1800

    Manufacturers Cummins
    Model 6BTAA5.9-C180
    Rated power kW/(r/min) 132/2200

    Max thrust-pull force( kN) 5000
    Max spindle speed(m/min) 28

    Torque N·m 160000
    Max spindle speed r/min 90

    Diameter ×Length(mm) φ168×9600
    Max inclination angle (°) 16

    Loader Crane
    Lifting weight (t) 5
    Loading capacity(t•m) 12.5

    Travel driving
    Type Steel crawel self-propelled
    Traveling speed (km/h) 0.9
    Gradeability(%) 30

    Mainframe dimension(mm) 18240×3000×3600

    Power house dimension(mm) 7500×2300×2400

    Handling room(option) (mm) 3500×2438×2591mm

    Weight (t) 55

    4 . Core parts subsidiary

    Name Manufacturer
    Engine(Power house) Volvo
    Engine(Mainframe) Cummins
    Pump Rexroth
    Rotary Motor Rexroth
    Push Motor Rexroth
    Rotary reducer Bonfiglioli
    Push reducer Bonfiglioli
    Main valve AMCA
    Handle SAUER
    Walking speed reducer Rexroth
    Loader Crane XCMG
    Hydraulic tubing XCMG

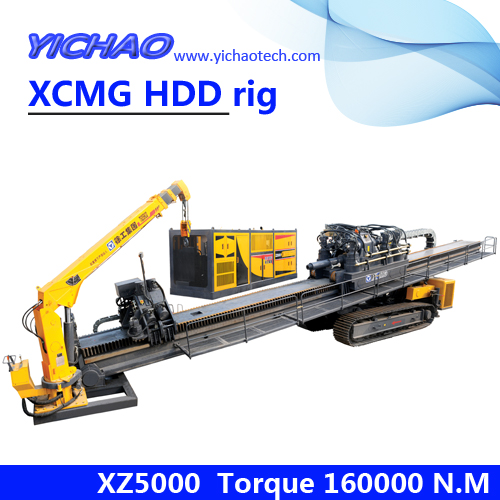

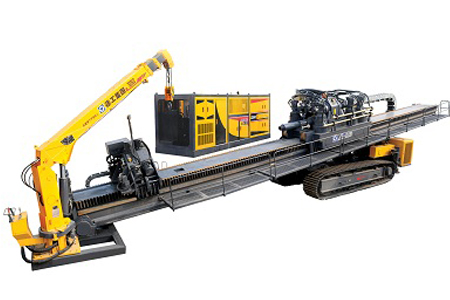

    5. The Machine Appearance and Transportation

    The machine transportation Dimension 18240×3000×3600
    Shiping weight(free of Drill and Drilling Tools) 55t
    Power house weight 16t
    Handling room weight 2t

    6. Transport program

    To meet the requirements of highway transportation, apart for the transport of two parts: upper part of the truck and Chassis. Chassis includes Engine, Hood, Cab, link weldment, Fuel Tank, Carriage. Upper part of the truck includes Drill Frame, Carriage, Clamp, Anchor, Loader Crane etc.

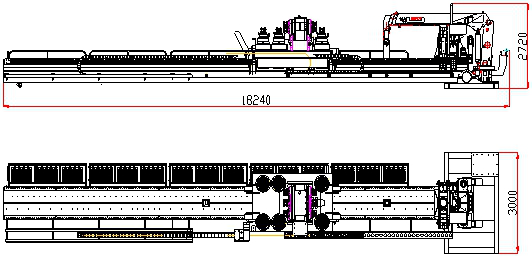

    Dimension of the upper part of the truck(L×W×H):18240×3000×2720
    Weight: about 38t

    Dimension of the Chassis(L×W×H): 6810×2500×1780
    Weight: about 17t

    7.Accompanied Attached Documents

    XZ5000 XCMG horizontal directional drilling rig start when accompanied by the packing list, include the following technical documents

    Product certificate
    Product Manual
    Engine Specification
    Operation and Maintenance Manual of Loader Crane
    Mud Pump Instruction Manual(Special grade Configuration)
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
