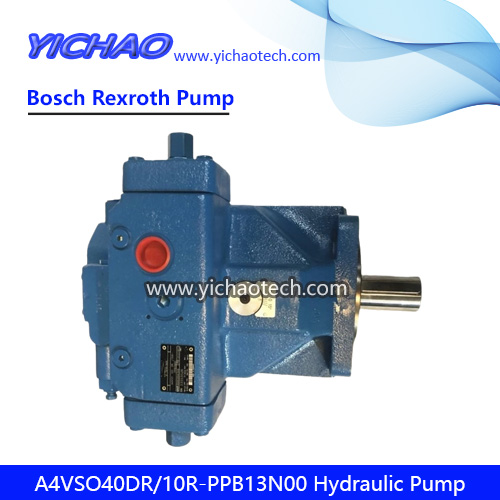

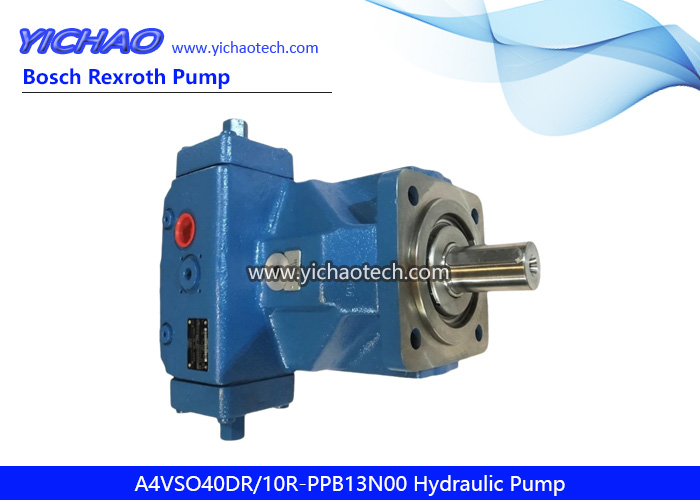

Rexroth A4VSO40DR/10R-PPB13N00,R902418820 Hydraulic Axial Plunger Variable Piston Pump
Rexroth Hydraulic Pump A4VSO40DR/10R-PPB13N00 is a high-performance axial piston variable displacement pump produced by Bosch Rexroth. It adopts a swash plate design and is suitable for open-circuit hydrostatic drive systems. The flow rate of the pump is proportional to the drive speed and displacement, and the flow rate can be adjusted steplessly by adjusting the swash plate angle. It is rugged, low-noise, has a short response time, and has excellent oil suction performance.
In terms of technical parameters, the maximum displacement of A4VSO40DR/10R-PPB13N00 is 40 cm³/rev, the nominal pressure is 350 bar, and the maximum pressure can reach 400 bar. Its maximum speed is 2600 rpm, and the maximum power is 61 kW at the maximum displacement and nominal pressure.
Application Areas
Industrial machinery: such as injection molding machines, die-casting machines, etc., used to accurately control the pressure and flow of hydraulic systems to ensure the stable operation of the machinery.
Construction machinery: such as excavators, loaders, etc., provide power for the hydraulic system to support the complex movements of the equipment.
Mining machinery: During the mining process, it provides reliable hydraulic power for crushers, loaders and other equipment.
Marine machinery: Used in the hydraulic system of ships, such as steering gear, anchor winch, etc., to ensure the control performance of the ship.
Engineering machinery: such as cranes, forklifts, etc., provide efficient power support for the hydraulic system of the equipment.
Machine tool control: In CNC machine tools, it is used to control the pressure and flow of the hydraulic system and improve the processing accuracy.
In addition, the pump can also be used in water treatment, industrial automation and other fields to provide power support for various equipment that requires precise hydraulic control.
