XCMG XZ120E HDD Trenchless Horizontal Directional Drill Rig Machine Drilling Equipment

XCMG XZ120E HDD Trenchless Horizontal Directional Drill Rig Machine Drilling Equipment
  • Enquiry Now!

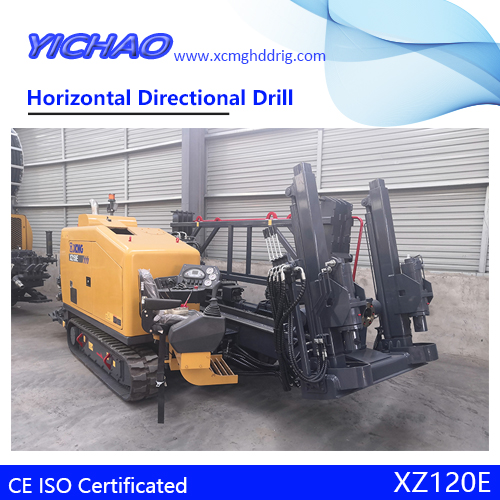

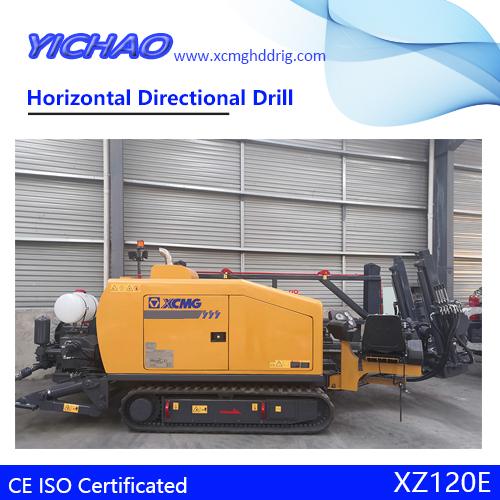

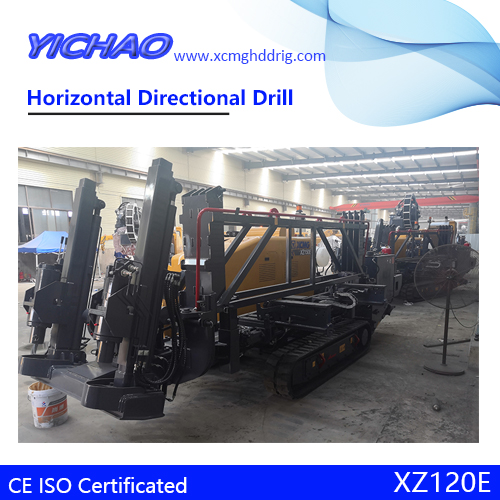

    XCMG XZ120E HDD Horizontal Directional Drill Trenchless Drilling Rig
    Product Model:XZ120E Horizontal Directional Drill (HDD)
    XCMG XZ120E HDD Drilling Rig structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, running system, and the main components are made of domestic first-class brand products, good performance, good reliability

    1.Features Introduction

    1.Hydraulic pilot control, with comfortable handling and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the whole hydraulic system
    2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive
    operational. Carriage floating, patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
    3.High-speed sliding systems, variable motor to achieve high and low carriage sliding
    change, increasing the ability to adapt the drilling rig working conditions, improve the
    efficiency of the drilling rig construction.
    4.Stable chassis support, using the classic H-beam structure, high quality rubber track,
    provide a strong guarantee for the stability of the whole construction.
    5.Machine with small inclination angle and low output shaft of carriage meet with
    construction requirements ofsmall angle and short distance.

    2.Technology Introduction

    1.Hydraulic System

    Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability.
    Hydraulic system pressure 21MPa;
    Fuel tank volume 140L;

    2.Engine System

    Dongfeng Cummins turbocharged engine is selected, with strong power and efficient construction.

    Engine type 4BTA3.9-C100
    Rated power 74kW
    Rated speed 2200 r/min
    Maximum engine torque 410N·m /(1500r/min)
    Emission standards China II
    Fuel tank capcity 120L

    3.Chassis

    XZ120E HDD use classic H-beam structure, high quality rubber track, site adaptability, high
    reliability, walking gear, stable performance, walking speed can reach 2km / h.

    4.Carriage

    The drilling rig completed by rack and pinion sliding action, carriage floating device can
    effectively protect the drill thread, variable-speed motor to achieve sliding.

    Max Thrusting /pulling force 130kN
    Max. Thrusting /pulling speed 37/21/10m/min
    Max spindle torque 3000/1500N·m
    Max. Rotation speed 220/110r/min

    5.Mud Systerm

    100L mud pump system according to the construction, to provide powerful construction, large flow, ensure the smooth construction.
    Max. Mud pump flow 100L/min
    Max. Mud pump pressure 40bar

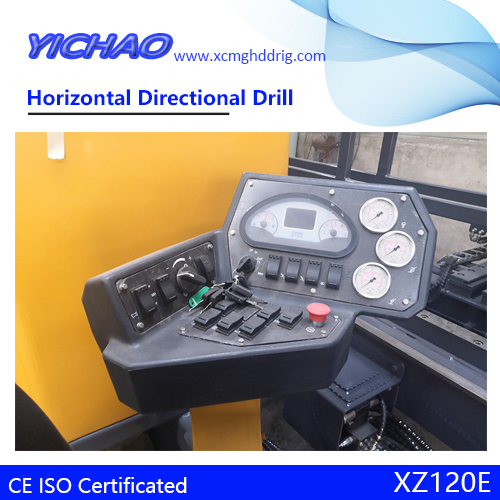

    6.Console

    Collaboration with professional bodies, Cab, console ergonomics analysis and research,
    fully considered during the operation operator comfort and instrument layout is reasonable.

    7.Pipe Loader(Optional)

    Machine can option automatic full-automatic pipe loader, to achieve handling drill
    automation. Optional Full-automatic pipeloader, Drilling box can accommodate 48 piece of Φ52×1800 welded drill pipes, this system can add pipe capacity for long distance
    construction Efficient automation construction, reduce construction costs and labor
    intensity.
    Note:This Full-automatic pipeloader use Φ52 welded drill pipes!

    8.Anchor(Optional)

    Main machine with normal anchor, also can option automatic anchor help push and
    drill, highly automated and great power, reduce labor intensity.

    9.Drill and Drilling Tools(Optional)

    Other accessories of XZ120E horizontal directional drill rig are configured as follows:

    Name Type Form Specification Remarks
    Drill Welded type 52mm×1.8m XCMG
    Drilling Tools Reamer Squeezed style 200mm XCMG
    300mm
    400mm
    500mm
    Runner type 200mm
    300mm
    400mm
    500mm
    Drill guide 52 XCMG
    Guide plate 52
    Male slider 52
    Female slider 52
    Splitter 10t
    Connect 52
    Mud system Mud Mixing 2m³ Shanghai
    Instrument Guide Instrument Navigator E/ET XCMG
    Detector 8100 Radiodetection

    3.Main Technical Parameters

    Item Parameter
    Engine Manufacturers Dongfeng Cummins
    Model 4BTA3.9-C100
    Rated Power 74kW / 2200 r/min
    Thrust-Pull Type Pinion and rack drive
    Max thrust-pull forcekN 130
    Max thrust-pull speedm/min 37/21/10
    Rotation Type Double motor
    TorqueN·m 3000/1500
    Max spindle speedr/min 220/110
    Pipe Diameter × Lengthmm×mm Φ52×1800
    Mud pump Max Flow rateL/min 100
    Max pressureMPa 4
    Weight / 4500kg
    Dimension L×W×H 4500 mm×1680 mm×2170mm

    4.Main Part Configuration

    Name Manufacture factory
    Engine Dongfeng Cummins
    Main Pump Permco
    Rotary Motor Eaton
    Thrust-pull Reduction Box XCMG
    Hand Shank Eaton
    Hydraulic tube XCMG
    Hydraulic cylinders XCMG
    Track XCMG

    5.Transport Program

    The machine transportation dimension 4500×1680×2170mm
    Shiping weight(free of drill and drilling tools) 4.5t

    6.Accompanied Attached Documents

    XZ120E HDD machine start when accompanied by the packing list, include the following technical documents:
    Product Certificate
    Instruction Manual
    Operation and Maintenance Manual of Engine
    Quality Assurance Manual of Engine
    Mud Pump Instruction Manual
    Packing List (including accompanied spare details, accompanied tools list)
