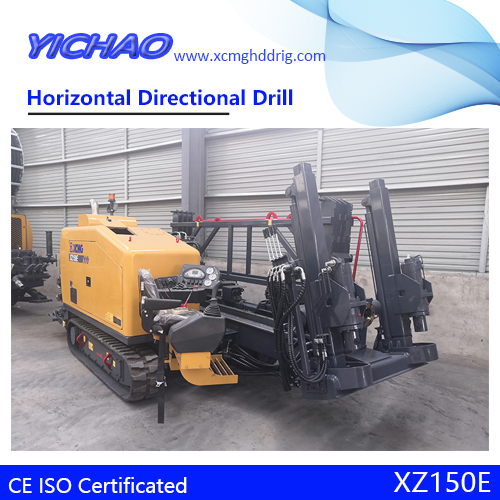

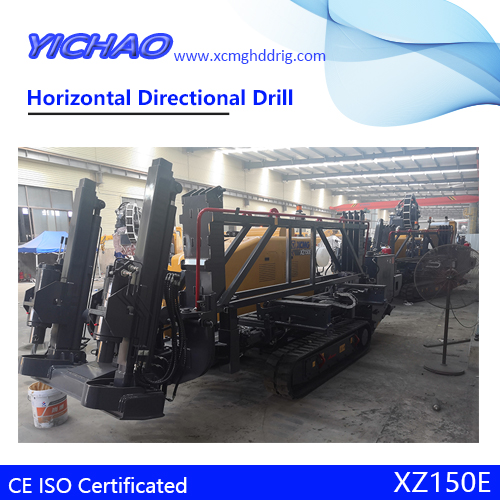

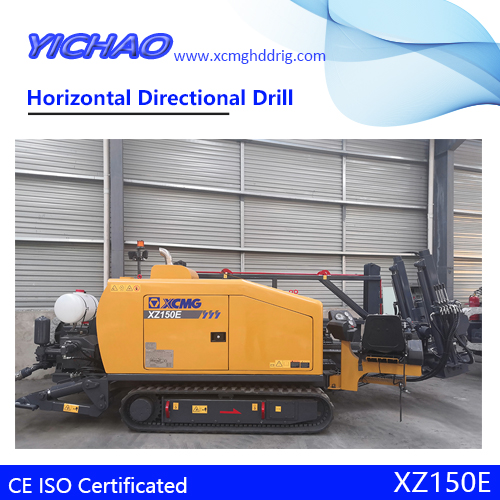

    XCMG XZ150E HDD Horizontal Directional Drill Trenchless Drilling Rig
    Product Model:XZ150E Horizontal Directional Drill (HDD)
    XCMG XZ150E HDD Drilling Rig structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, running system, and the main components are made of domestic first-class brand products, good performance, good reliability.

    1.Features Introduction

    1.Hydraulic pilot control, with comfortable handling and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the whole hydraulic system.
    2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating, floating vise patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
    3.High-speed sliding systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction
    4.Stable chassis support, using the classic H-beam structure, high quality rubber track, breaststroke leg structure, provide a strong guarantee for the stability of the whole construction.
    5.Support the diverse needs of customers, the machine can be increased with the automatic drill pipe handling device, automatic anchoring system, mud washing and other devices, can also optional more environmentally friendly.

    2.Technology Introduction

    1.Hydraulic System

    Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability.
    Hydraulic system pressure 21MPa;
    Fuel tank volume 170L;

    2.Engine System

    Dongfeng Cummins turbocharged engine is selected, with strong power and efficient construction.

    Engine type 4BTA3.9-C125
    Rated power 93kW
    Rated speed 2200 r/min
    Maximum engine torque 475N·m /(1500r/min)
    Emission standards China II
    Fuel tank capcity 180L

    3.Chassis

    XZ150E use classic H-beam structure, high quality rubber track, site adaptability, high reliability, breaststroke leg structure, large cylinder support, good stability, Eaton walking gear,stable performance, walking speed can reach 2.2km / h.

    Track width 1850 mm
    Rubber Track Width 320 mm
    Tread 1910 mm
    Supporting wheels Quantity 2×6
    Driving force 68000N
    Gradeability 30%
    Walking speed 2.2km/h
    Grounding pressure 63kPa
    Overall working weight 7.5t

    4.Carriage

    The drilling rig completed by rack and pinion sliding action, carriage floating device can effectively protect the drill thread, variable-speed motor to achieve sliding.

    Max Thrusting /pulling force 165kN
    Max. Thrusting /pulling speed 7.5/23/40m/min
    Max spindle torque 5400N·m
    Max. Walking distance of carriage 3800mm
    Max. Rotation speed 800/160r/min

    5.Mud Systerm

    200L mud pump system according to the construction, to provide powerful construction, large flow, ensure the smooth construction.
    Max. Mud pump flow    200L/min
    Max. Mud pump pressure    80bar

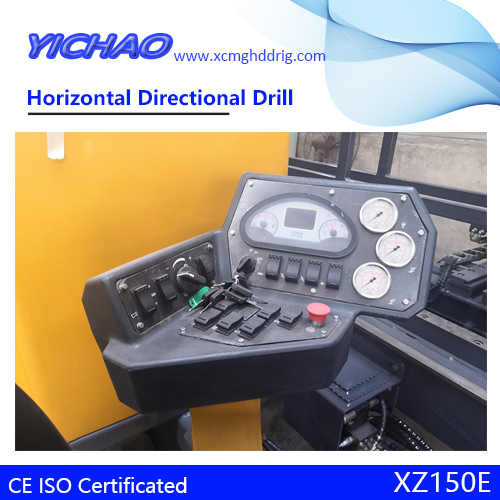

    6.Console

    Collaboration with professional bodies, Cab, console ergonomics analysis and research,fully considered during the operation operator comfort and instrument layout is reasonable.

    7.Pipe Loader(Optional)

    Machine can option configuration with the full-automatic pipe loader, to achieve handling drill automation. Optional Full-automatic pipeloader, Drilling box can accommodate39 piece of φ60×3000 drill pipes, this system can add pipe capacity for long distance construction Efficient automation construction, reduce construction costs and labor intensity.
    Note:This Full-automatic pipeloader use φ60×3000 drill pipes!

    8.Drill and Drilling Tools

    Other accessories of XZ150E horizontal directional drill rig are configured as follows:

    Name Type Form Specification Remarks
    Drill Monolithic 60mm×3m XCMG
    Welded type
    Drilling Tools Reamer Squeezed style 200mm XCMG
    300mm
    400mm
    500mm
    Runner type 200mm
    300mm
    400mm
    500mm
    Accessories Drill guide 60
    Starting lever 60
    Guide plate 60
    Torques 60
    L-nut 60
    Male slider 60
    Female slider 60
    Splitter 15t
    Connect 60
    Mud system Mud Mixing System 2m³ Shanghai
    Instrument Guide Instrument Pilot-E XCMG

    3.Main Technical Parameters

    Item Parameter
    Engine Manufacturer Dongfeng Cummins
    Model 4BTA3.9-C125
    Rated Power 93kW / 2200 r/min
    Thrust-Pull Type Pinion and rack drive
    Max thrust-pull forcekN 165
    Max thrust-pull speedm/min 7.5/23/40
    Rotation Type two motor
    TorqueN·m 5400
    Max spindle speedr/min 80/160
    Pipe Diameter × Lengthmm×mm Φ60×3000
    Mud pump Max Flow rateL/min 200
    Max pressureMPa 8
    Weight / 7500kg
    Dimension L×W×H 5900 mm×1850 mm×2100mm

    4.Main Part Configuration

    Name Manufacture factory
    Engine Dongfeng Cummins
    Main Pump Permco
    Rotary Motor Eaton
    Reduction Box XCMG
    Hand Shank Eaton
    Hydraulic tube XCMG
    Hydraulic cylinders XCMG
    Track XCMG

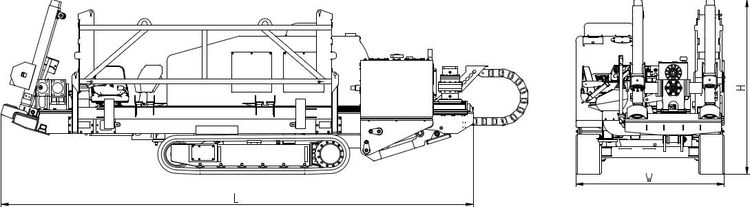

    5.Transport Program

    xcmg hdd XZ150 Transport Program
    The machine transportation dimension     5900×1850×2100mm
    Shiping weight(free of drill and drilling tools     7.5t
    Cab configuration, automatic anchoring, automatic
    Overall dimensions (standard)     5900×1850×2100mm
    Handling drill equipment (including 39drill), Weight     8.8t

    6.Accompanied Attached Documents

    XCMG XZ150E HDD machine start when accompanied by the packing list, include the following technical documents
    Product Certificate
    Product Manual
    Engine Specification
    Engine Warranty
    Mud Pump Instruction Manual
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
