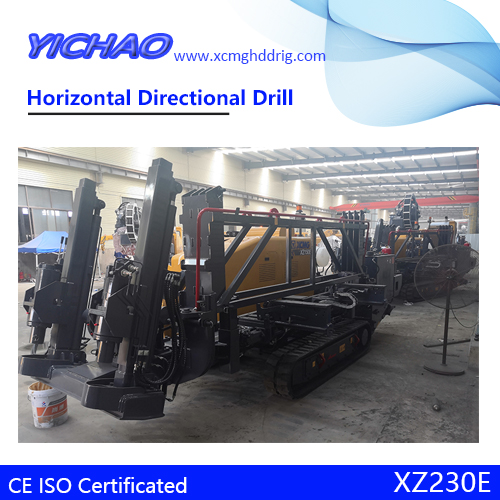

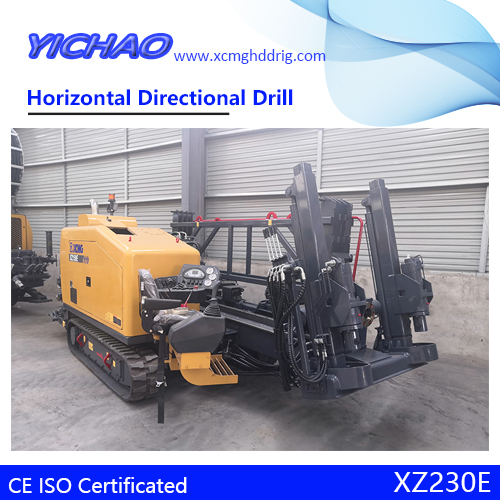

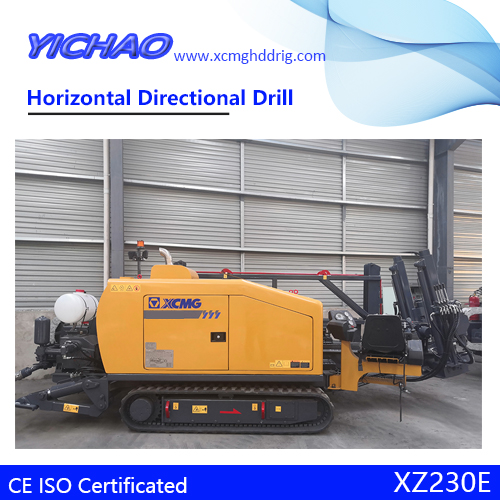

XCMG XZ230E HDD Trenchless Horizontal Directional Drill Rig Machine Drilling Equipment
Enquiry Now!XCMG XZ230E HDD Horizontal Directional Drill Trenchless Drilling Rig
Product Model:XZ230E Horizontal Directional Drill (HDD)
XCMG XZ230E HDD Drilling Rig series horizontal directional drilling rig is a new product integrating advanced technology, user experience and construction efficiency. It pays more attention to construction requirements, operating habits, and system energy saving. It is suitable for small-tonnage models of urban pipeline construction such as electric power, communication, and cable TV.
1.Features Introduction
1. The height of the ground entry point of the whole machine is low, the adjustment range of the drilling frame angle is large: 10 ~ 24°, and the adaptability to working conditions is good;
2. The mud flow is large, and the mud flow adjustment cab operation is convenient and fast;
3. Multi-speed output technology is adopted for push-pull and rotation. The clamping speed of the vise is fast, the system is energy-saving, the construction is efficient, and the construction efficiency is increased by 30%;

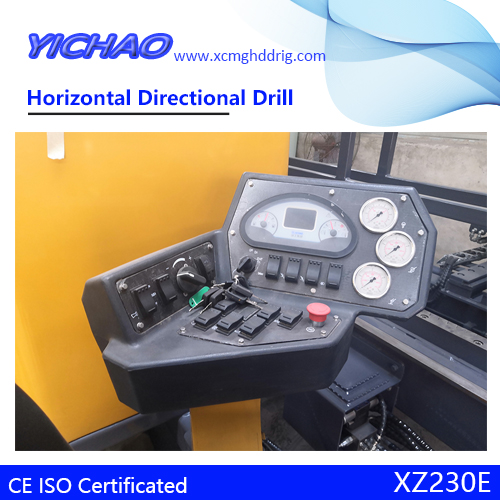

4. The single-handle hydraulic pilot system provides comfortable operation performance and flexible adjustment performance for the whole machine, and first-class brand hydraulic components are selected to ensure the reliable operation of the hydraulic system of the whole machine;
5. The rack and pinion push-pull ensures the stability of the power head operation and the reliability of the transmission. The power head floating technology can greatly protect the drill pipe thread, and the service life of the drill pipe is increased by 30%;
6. The high and low speed push-pull system, the plunger variable motor realizes the high and low speed of the power head push-pull, and the one-key boost function increases the push-pull force to 27 tons, which increases the adaptability of the drilling rig to working conditions and improves the construction efficiency of the drilling rig;
7. The whole machine adopts innovative technologies such as seat switch, logic interlock, wireless proportional wire-controlled walking, optional electric shock protection, remote car locking and other innovative technologies, and its safety meets the requirements of EU CE certification;
8. To support the diversified needs of customers, it can be equipped with functions such as large space cab, heating and cooling air conditioning, cold start, mud antifreeze, automatic pole installation, anti-electric shock alarm, automatic spraying of thread oil, etc., to reduce work intensity and improve construction efficiency.
2.Main Technical Parameters
Item | Parameter | |
Engine | Manufacturer | Dongfeng Cummins |
Model | QSB5.9-C150 | |
Rated Power | 113kW / 2200 r/min | |
Thrust-Pull | Type | Pinion and rack drive |
Max thrust-pull force(kN) | 230/270 | |
Max thrust-pull speed(m/min) | 55 | |
Rotation | Type | two motor |
Torque(N·m) | 6500 | |
Max spindle speed(r/min) | 175 | |
Pipe | Diameter × Length(mm×mm) | Φ60×3000 |
Mud pump | Max Flow rate(L/min) | 250 |
Max pressure(MPa) | 8 | |
Weight | / | 8500kg |
3.Main Part Configuration
Name | Manufacture factory |
Engine | Dongfeng Cummins |
Rotation Pump | Permco |
Thrust-Pull Pump | Permco |
Auxiliary Pump | Permco |
Rotary Motor | Eaton |
Thrust-Pull Motor | Liyuan |
Reduction Box | XCMG |
Hydraulic tubo | XCMG |
Hydraulic oil cylinder | XCMG |
Hand Shank | Eaton |
Walking speed reducer | XCMG |
4.Attached Equipment
Items | Optional | XZ230E | Optional |
Engine | Engine ChinaⅢ QSB5.9-C150 | √ | / |
Cold start | √ | / | |
Mud system | 250L Mud pump | √ | / |
Mud antifreeze | / | □ | |
Mud cleaning | √ | / | |
Mud flow operated | √ | / | |
Pipe Loader | Full-automatic pipeloader | / | □ |
Automatic thread oil daub | / | □ | |
Cab | Simple machine tent | √ | / |
Cab and air conditioner | / | □ | |
Walking | Proportional wire-controlled walking | / | □ |
Anchor | Simple anchor | √ | |
Double automatic anchor | / | □ |
√-Normal □-Optional /-No-assembled
