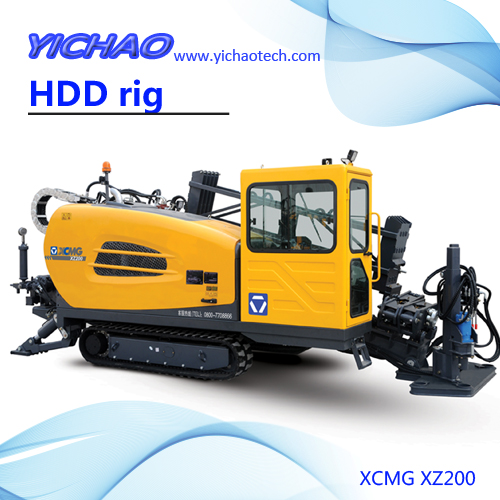

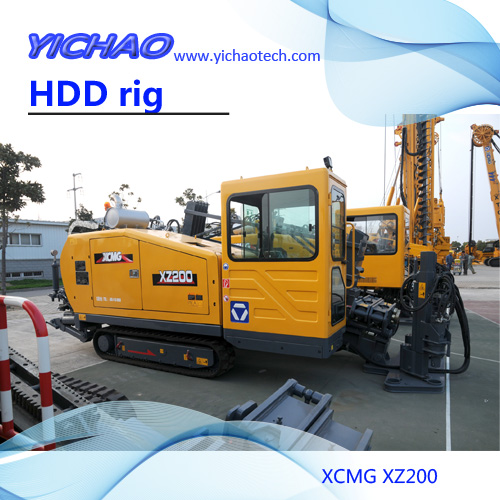

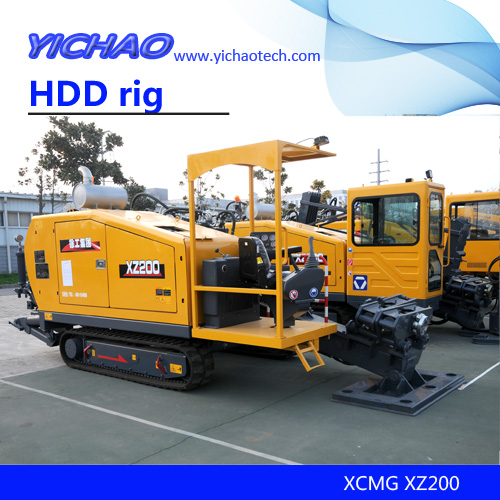

XZ200 directional horizontal drill machine

XZ200 directional horizontal drill machine
  • Enquiry Now!

    Why choose XCMG XZ200(Advantage)

    1.The manufacturer of XCMG is the top 1 brand of construction machinery brand in China.It has more strict quality control system.

    2.The XZ200 horizontal directional drill has more strong structure.

    XZ200 operating weight is 10500kg

    Drillto ZT20 is only 7500kg.

    XCMG XZ200 max torque(N.m) is 6350

    Drillto ZT20 max torque(N.m) is 6000

    Engine power XCMG XZ200 is 112kw

    Engine power drillto ZT20 is 110kw

    3.The XZ200 is very suitable for fiber telecom pipe laying.The experience digital is

    If the land hardness is normal,and just use 200mm,300mm back reamer,the one-gun-distance is 150 meter and it’s very easily.

    If the land harness is normal,and the back reamer size reach 400mm,the one-gun-distance can be 150 meter but the operator need to pay high attention to the rig to see all the digital such as the rotation pressure and other.

    If the back reamer size reach 500mm,600mm,the one-gun-distance can only be 90 meter.

    Remark:One-gun-distance means the distance of drill bit go from one side and come out from the other size.Please see below explanation.

    XZ200  Horizontal  Directional Drilling  Machine

    Technical specification

    Product model: XZ200 horizontal directional drilling machine

    Manufacturer: XCMG GROUP

    XZ200 horizontal directional drilling machine has the compact structure and excellent performance. The function is all ready. Adopting hydraulic pilot control and gear and rack push-pull. The main performance parameters and control technology reached the international advanced level. Hydraulic system, power system, walking system and other main parts are picked from the first-class brand products at home and abroad with the good performance and reliability.

    1.The highlights

    1)hydraulic pilot control has the comfort and flexible adjustment ability. The first-class brand hydraulic components can guarantee the machine hydraulic system reliable.

    2)The gear and rack push and pull, which ensure the stability and the reliability of the transmission of power head operation. XCMG proprietary patented power head floating technology can greatly protect the drill pipe thread and increase 30% of the service life of the drill pipe.

    3)High-speed push-pull system, variable motor power head can adjust the high and low speed. The drill increase adaptability and promote the efficiency of drilling rig construction.

    4)It has the stable chassis support. Using the classic H beam structure. The high quality rubber tracks and the frog leg structure can provide the strong guarantee for the whole construction stability.

    5)Option: the machine can be equipped with automatic loading and unloading drill pipe. Drill pipe box can accommodate 48 drill pipe, which can guarantee the construction of about 150 meters. There is automate and efficient construction. It can effectively reduce the construction cost and labor intensity.

    6)Meeting the customer various needs. The machine can do automatic or semi-automatic loading and unloading drill rod device. Automatic anchoring system, cabin, air conditioning, mud antifreeze, mud cleaning and mud throttling device can also be equipped with environmental protection. The high efficiency of Dongfeng cummins meeting the three electronic-controlled engine emissions.

    2.The introduction of technology

    1).The hydraulic system

    Adopting hydraulic pilot control. The hydraulic components are chosen from the domestic and international first-class brand. Five pump can complete the whole machine movement and reasonably distribute the engine power.

    Pressure 21Mpa
    The hydraulic oil tank volume 230L

    2) The engine system

    Choosing Dongfeng Cummins turbo engine, which is powerful. Its emissions meet China’s second stage standards.

    Engine type 6BTAA5.9-C150
    Rated power 112kW
    Max. torque 670 N•m /(1400r/min)
    Rated speed 2200 r/min
    Standard Second stage
    Main engine fuel tank volume 250L

    Option: High Dongfeng cummins turbocharged engine emissions standards, emissions can meet the three stages in China and EU Stage IIIA.

    Engine type QSB4.5-C160
    Rated power 119kW
    Max. torque 624 N•m /(1400r/min)
    Rated speed 2200 r/min
    Standard Third stage, EU Stage IIIA

    3) Chassis

    XZ200 takes the classical H beam structure, the high quality rubber tracks and venue with strong adaptability and high reliability. The frog leg structure and oil cylinder support have the great stability. Eaton walking speed reducer has the stable performance and walking speed can be up to 2.2 km/h.

    Track outside width 2090 mm
    Track width 320 mm
    Wheel base 1910 mm
    Gradability 30%
    Walking speed 2.2 km/h
    Tractive effort 68000N

    4)Power head

    The power head can finish the action of the push and pull through the gear and rack. Power head floating device can effectively protect drill pipe thread. Variable motor achieve the high-speed push and pull. The set of drill pipe is φ60 x 3000.

    Max. push and pull speed 0~26m/min
    Max. rotating torque 6350N.m
    Power head distance 4000mm

    5)The slurry pump system

    Host is equipped with 250 l/min flow slurry pump, which provide strong mud supply for construction, ensuring the security of the construction smoothly. Option: winter construction with mud anti-freezing device, daily maintenance with mud cleaning device, which can improve the convenience of the construction.

    Maximum rate of flow 250L/min
    Maximum pressure 80bar

    6)Operation desk, cabin(Option)

    The host operating system can fully consider the construction process of the operator comfort and the instrument layout rationality combining hydraulic control pilot operation, control system, the operating system for the comfort and convenience, high efficiency and energy saving. Option: cabin, air conditioning. They can ensure that the host can regularly work in winter and summer. They can provide the comfortable and safe operating environment for operators and improve working efficiency.

    Cabin dimension 1200 X 1050 X 1600mm

    7)Drill pipe unloading system (Option)

    The host is equipped with the semi-automatic loading and unloading device. Through the ratating mechanism, the auxiliary drill pipe can assist loading and unloading drill rod. It can also be equipped with automatic drill pipe unloading system. Through the mechanical device, it can realize the automatic loading and unloading drill pipe. Drill pipe box can accommodate 48 root φ60 drill pipe. Drill pipe has the high efficiency and good reliability, which can effectively reduce the labor intensity.

    8)Anchor device (Option)Drill pipe(Option)

    XZ200 horizontal directional drilling tools configuration are as follows:

    Name Type Specification Remarks
    Drill pipe Overall/welding φ60mm×3m 60
    Drilling tools Back reamer Squeeze expanding φ200mm
    φ300mm
    φ400mm
    φ500mm
    φ600mm
    φ700mm
    Channel impeller φ200mm
    φ300mm
    φ400mm XCMG
    φ500mm
    φ600mm
    φ700mm
    Accessories Pilot guide bit 60
    Guide plate 60
    Male pull head 60
    Female pull head 60
    Transfer case 20T
    Source nipple 60
    Slurry system Slurry mixing

    system

    2/3 m3 Shanghai
    Apparatus Exploratory

    apparatus

    F2/F5/SE DCI
    GL300/GL350/GL600 Gemdale
    Detecting

    instrument

    8000 Reddi

    3.The main technical parameters

    XZ200  Horizontal  Directional Drilling  Machine
    Engine Item Unit Quality
    Producer Dongfeng Cummins
    Type 6BTAA5.9-C150,
    QSB4.5-C160
    Push and pull Rated power kW/ rpm 112 / 2200, 119/2200
    Type Gear and rack drive
    Biggest drag/feed force kN 200/200
    Power head speed m/min 0~26
    Type Double motor
    Rotary Power head maximum torque N.m 6350
    Power head rotation speed r/min 0~160
    Drill stand Diameter mm φ60mm X 3000
    Adjustable angle ° 10~22
    Walking drive Type Self-propelled rubber tracks
    Walking speed km/h 2.2
    Slurry pump The rate of flow L/min 250
    Overall weight kg Standard:8500
    High Configuration:10000

    4.The main component configuration

    Item Producer
    Engine Dongfeng cummins
    Main pump Permco
    Auxiliary pump Permco
    Rotary motor Eaton
    Push and pull motor/reducer Dagang
    Hand shank Eaton
    Hydraulic tubing XCMG
    Hydraulic oil cylinder XCMG
    Walking reducer Eaton/Dagang

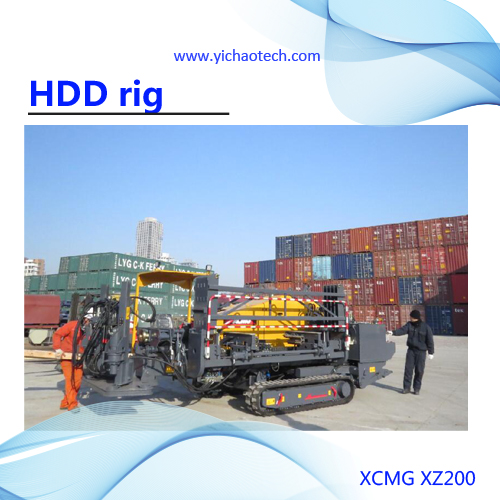

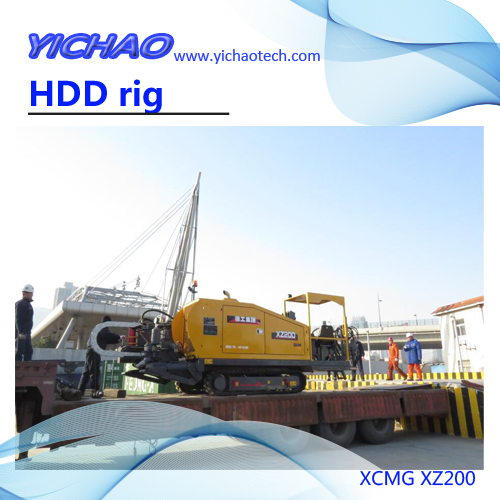

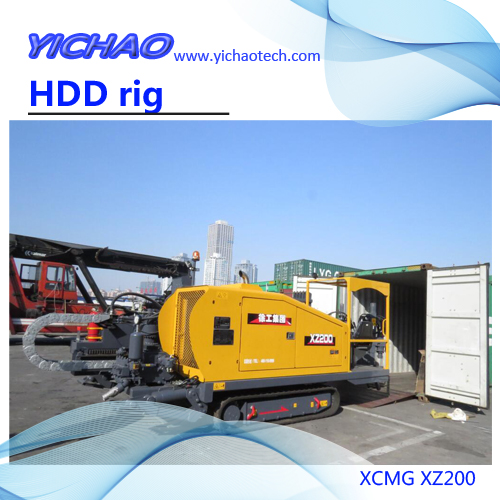

    5.The machine appearance and transportation

    Standard dismension:

    Item Code Parameters
    Total length L 5900 mm
    Total width W 2210 mm
    Total height H 2400 mm
    Weight 8500kg

    Equipped  with  cabin,  drill pipe  handling  equipment,  automatic anchorage, dimension  size as shown in the figure below:

    Item Code Parameters
    Total length L 6200 mm
    Total width W 2270 mm
    Total height H 2400 mm
    Weight 10000kg

    6.The documents

    XZ200 horizontal directional drilling machine technical documents as the following: Product certificate

    Product specification

    Product parts atlas

    The engine maintenance manual

    Mud pump maintenance manual (Option)

    Packing list (Including wearing parts and spare parts list, the accessory tools list)

    Note: the product with technical progress will continue to improve, the difference will be in when ordering.
