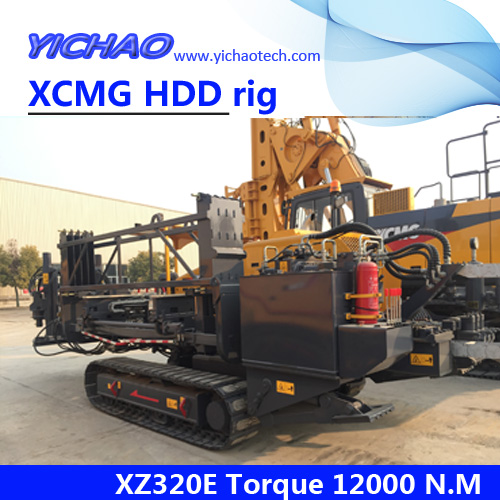

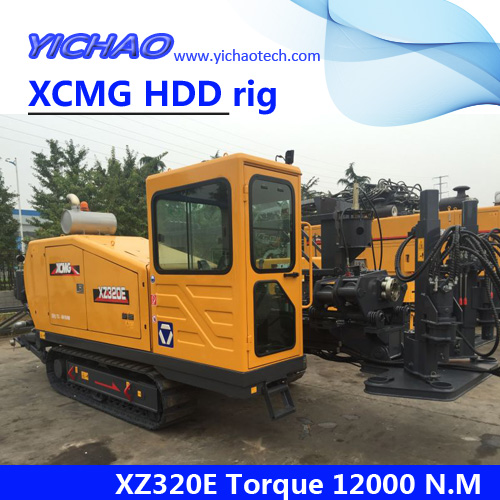

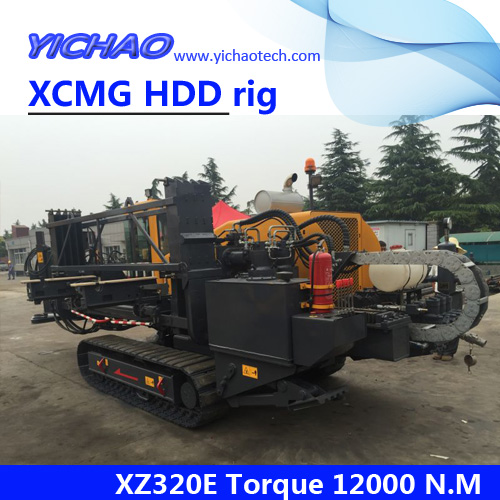

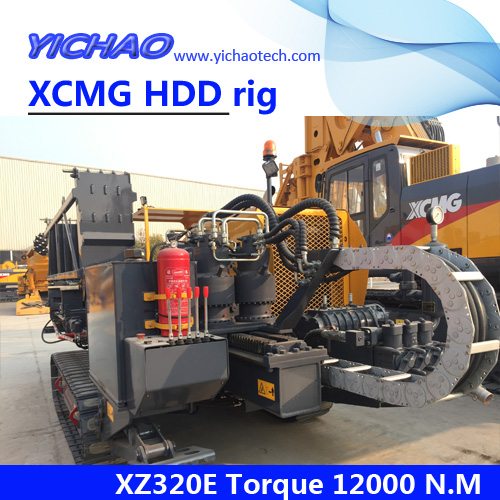

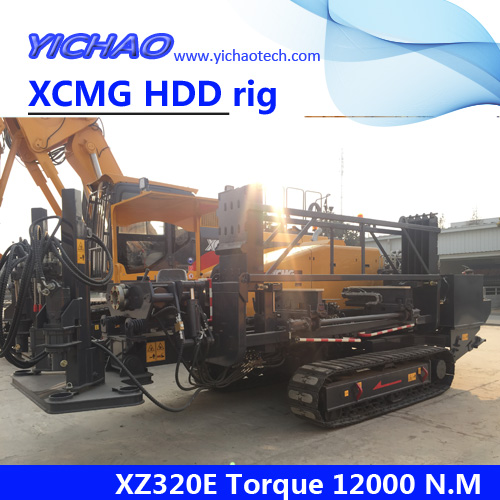

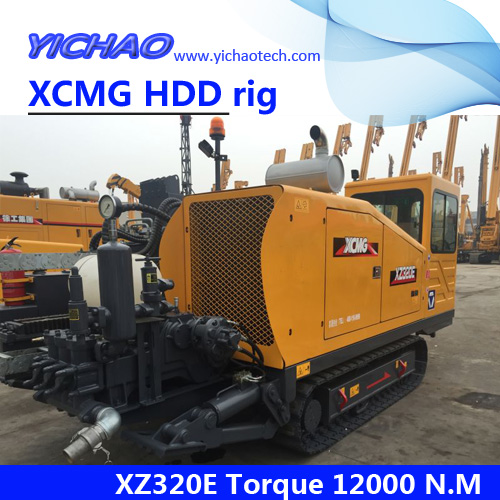

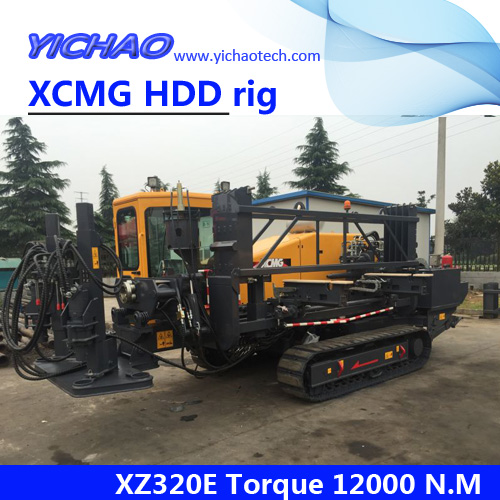

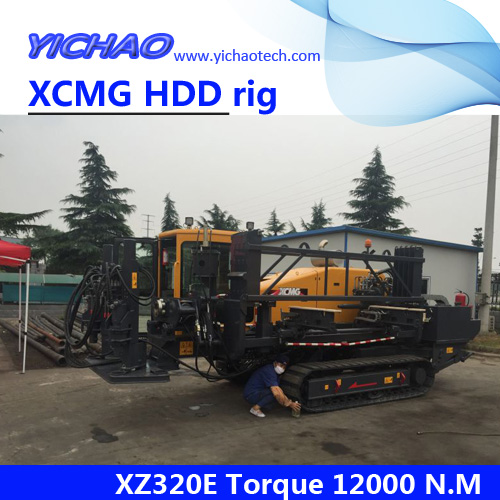

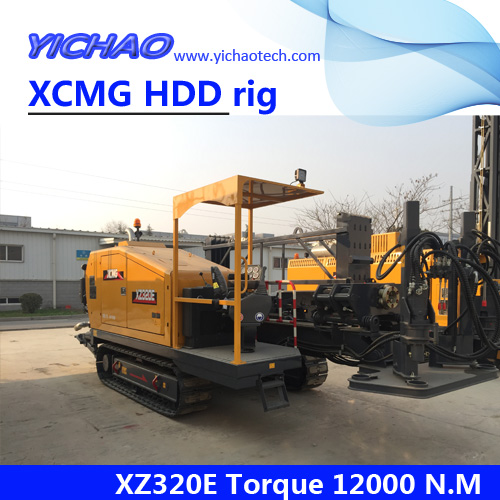

XZ320E Horizontal Directional Drill
XZ320E HDD Technical Specification
Product Model:XZ320E Horizontal Directional Drill(HDD)
Manufacturer:XCMG Foundation Construction Machinery Group Co.; Ltd.
XZ320E HDD structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, travel system, and the main components are made of leading domestic and foreign products, good performance, good reliability.
1.Features Introduction
1.1 Hydraulic pilot control, provide comfortable operating performance and flexible regulation,
first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
1.2 Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
1.3High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
1.4 Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes, ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
1.5 Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices, can also be optioned more eco saving Dongfeng Cummins with EU Stage ⅢA.
Technology Introduction
2.1 Engine System
Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet
China III emission standard.
Engine Type QSB5.9-C210
Rated Power 154kW
Max Torque 820N.m /(1400r/min)
Rated Speed 2200r/min
Emission Standard China III
Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet
China II emission standard.
Engine Type 6BTAA5.9-C205
Rated Power 153kW
Max Torque 870N.m /(1400r/min)
Rated Speed 2200r/min
Emission Standard China II
Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet
China III,EU Stage IIIA emission standard.
Engine Type | QSB6.7-C220 |
Rated Power | 164kW |
Max Torque | 949N.m /(1500r/min) |
Rated Speed | 2200r/min |
Emission Standard | EU Stage IIIA |
2.2Carriage
The drilling rig completed by rack and pinion sliding action, power head floating device can effectively protect the drill thread, variable-speed motor to achieve sliding.
Travelling speed | 36m/min |
Spindle torque (max) | 12600N·m |
The maximum stroke | 3800mm |
2.3 Hydraulic System
Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability. Five pumps coordinated action to complete the working, a reasonable allocation of engine power.
2.4 Chassis
XZ320E use classic H-beam structure, high quality rubber track, site adaptability, high
reliability, breaststroke leg structure, large cylinder support, good stability, Eaton walking gear, stable performance, walking speed can reach 2.2km /h.
Track width | 2240 mm |
Rubber Track Width | 400 mm |
Tread | 2140mm |
Supporting wheels Quantity | 2×6 units |
Gradeability | 30% |
Walking speed | 2.6km/h |
Ground pressure | 63kPa |

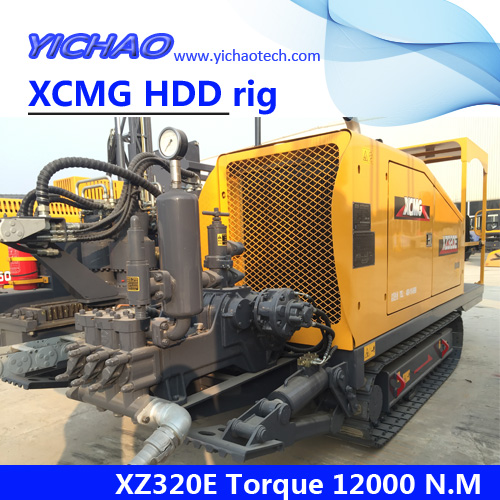

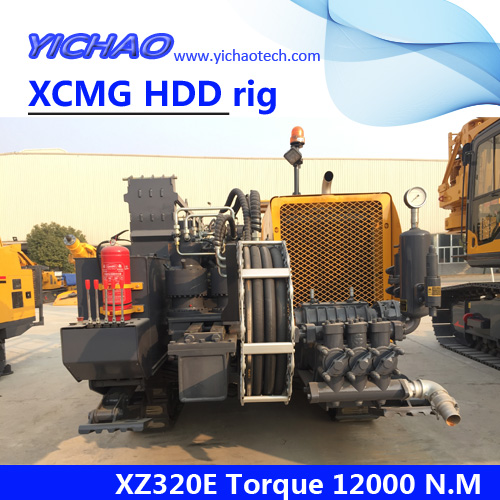

2.5 Mud Systerm
320L mud pump with a large flow, can meet most of the construction needs, winter
construction can be increased with antifreeze systems with mud and mud cleaning system for the whole routine maintenance.
Mud maximum flow 320L/min
Mud maximum pressure 80bar
2.6 Console and Cab(Optional)Collaboration with professional bodies, Cab, console ergonomics analysis and research, fully considered during the operation operator comfort and instrument layout is reasonable, can be increased with the cab, air conditioner, reduce labor intensity, improve the efficiency of the operator.
2.7 Pipe Loader(Optional)
Machine can option configuration with the automatic semi-automatic pipe loader, used rotating structure to achieve handling drill semi-automatization, also can option automatic
Full-automatic pipe loader, to achieve handling drill automation. Optional Full-automatic pipeloader, Drilling box can accommodate 40 piece of φ73×3000 drill pipes, this system can add pipe capacity for long distance construction Efficient automation construction, reduce construction costs and labor intensity.
Note:This Full-automatic pipeloader use φ73×3000 drill pipes!

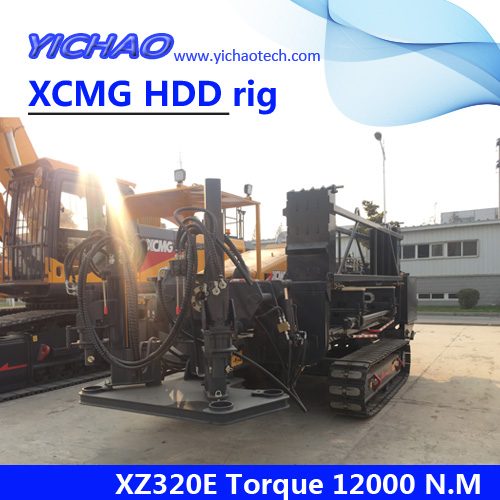

2.8 Anchor(Optional)
Main machine with normal anchor, also can option automatic anchor help push and drill, highly automated and great power, reduce labor intensity. 9、钻杆、钻具Drill and Drilling Tools(Optional)
Main machine with Drill and Drilling Tools have Good performance and stable quality to make sure construction successfully.Other accessories of XZ320E horizontal directional drill rig are configured as follows
Name | Type | Form | Specification | Remarks |
Drill | Monolithic | ¢73mm×3m | XCMG | |
Welded type | ||||
Drilling tools | Reamer | Squeezed style | ¢300mm | |
¢400mm | ||||
¢500mm | ||||
¢700mm | ||||
¢800mm | ||||
¢900mm | ||||
Drilling tools | Reamer | Runner type | ¢300mm | |
¢400mm | ||||
¢500mm | ||||
¢600mm | ||||
¢700mm | ||||
¢800mm | ||||
¢900mm | ||||
Accessories | Drill guide | 73 | ||
Starting lever | 73 | |||
Guide plate | 73 | |||
Torques | 73 | |||
L-nut | 73 | |||
Male slider | 73 | |||
Female slider | 73 | |||
Splitter | 32T | |||
Connect | 73 | |||
Mud Mixing System | 2 m3 | |||
Mud system | 3 m3 | |||
Instrument | Guide Instrument | Navigator E | XCMG | |
Detector | 8100 | Radiodetection |
3.Main technical parameters
Item | Parameter | ||
Engine | Manufacturers | Dongfeng Cummins | |
China III | Model | QSB5.9-C210 | |
Rated Power | 154 kW/2200 r/min | ||
China II | Model | 6BTAA5.9-C205 | |
Rated Power | 153 kW/2200 r/min | ||
China III,EU Stage IIIA | QSB6.7-C220 | ||
Model | |||
Rated Power | 164 kW/2200r/min | ||
Thrust-Pull | Type | Pinion and rack drive | |
Max thrust-pull force(kN) | 345/345 | ||
Max thrust-pull speed(m/min) | 36 | ||
Rotation | Type | four motors | |
Torque(N·m) | 12600 | ||
Max spindle speed(r/min) | 140 | ||
Pipe | Diameter ×Length(mm×mm) | φ73×3000 | |
Mud pump | Max Flow rate(L/min) | 320 | |
Max pressure(MPa) | 8 | ||
Weight | / | 10500kg |
4.Main part configuration
Name | Manufacture factory |
Engine | Dongfeng Cummins |
Main Pump | Permco |
Auxiliary Pump | Permco |
Rotary Motor | Eaton |
Hand Shank | Eaton |
5.Transport Program
The machine transportation Dimension 6200×2280×2450mm
Shiping weight(Simple,Free of Drill and Drilling Tools) 10.5t
Shiping weight(Optional Cab,Pipe Loader,Free of Drill and Drilling Tools) 11.5t
6.Accompanied Attached Documents
XZ320E HDD machine start when accompanied by the packing list, include the following technical documents
Product Certificate
Product Manual
Engine Specification
Engine Warranty
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
7.Attached Equipment
Items | Optional | Configure |
Engine | QSB5.9-C210 | R |
6BTAA5.9-C205 | □ | |
Engine China II | ||
QSB6.7-C220 | □ | |
Engine ChinaⅢ, EU Stage IIIA | ||
Cold start | R | |
Anchor | Simple anchor | R |
Double automatic anchor | □ | |
Mud system | Mud antifreeze | □ |
Mud cleaning | □ | |
Pipeloader | Semi-automatic pipeloader | □ |
Full-automatic pipeloader | □ | |
Cab | Simple machine tent | R |
Cab and air conditioner | □ | |
Automatic thread oil daub | □ | |
Walking | Proportional wire-controlled walking | □ |
Short time Plus 20% force | □ | |
Electrical shock protection | □ |
Remark □√-Normal,□-Optional
Advances in technology design, we can not change the product effective notice to you, please forgive me!
