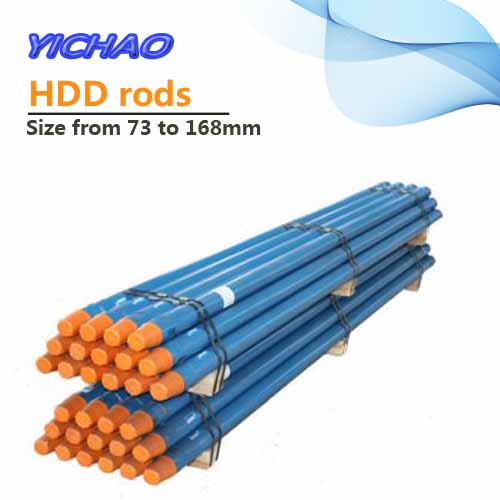

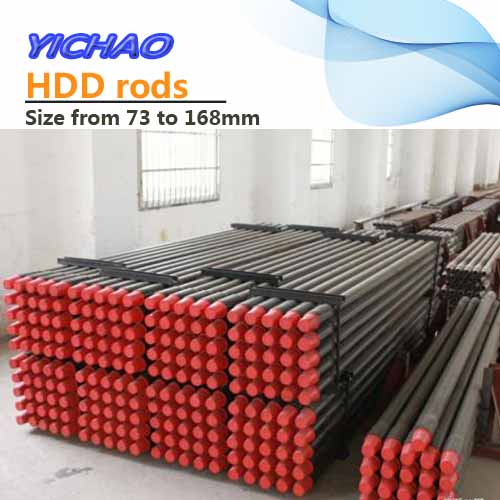

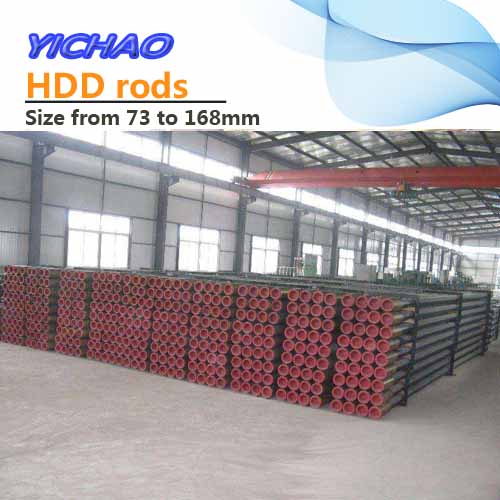

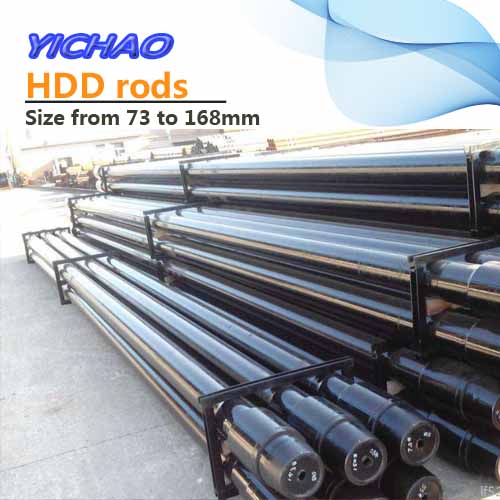

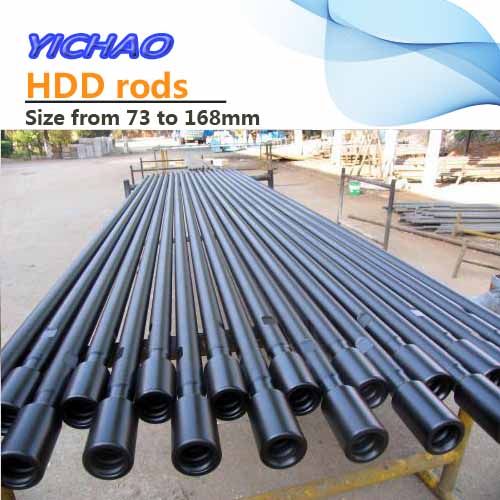

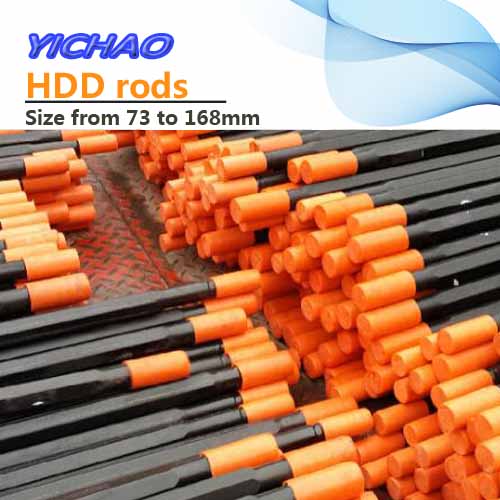

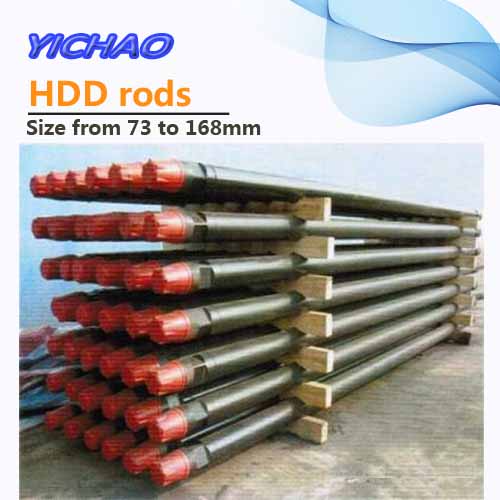

HDD rig drilling rods

HDD rig drilling rods
  • Enquiry Now!

    All sizes of HDD rig drilling rods and pipes for all brand of horizontal directional drilling machine such as XCMG,Vermeer,Gudeng ects

    Forged drill pipe

    Size(mm) φ60*7.1*3000

    Steel stage S135

    Style Intergral

    Thread type ZX60

    Pipe outer diameter(inch/mm) 2.375/60

    Wall thickness(inch/mm) 0.279/7.1

    Connection outer diameter(inch/mm) 2.68/68

    Rods effective length(ft/mm) 9.844/3000

    Weight(kg) 32

    Torque(N.m) 6500

    Minimum radius of curvature(M) 33

    Angle bending length(M) 52

    Max bending angle(degree) 5.2

    Max tile angle(%) 9

    ============================================================

    Forged drill pipe

    Size(mm)  φ73*8.1*3000

    Steel stage S135

    Style Intergral

    Thread type  NC23

    Pipe outer diameter(inch/mm)    8.875/73

    Wall thickness(inch/mm)  0.315/8

    Connection outer diameter(inch/mm)  3.17/82.5

    Rods effective length(ft/mm)  9.844/3000

    Weight(kg) 46

    Torque(N.m)  13000

    Minimum radius of curvature(M) 45

    Angle bending length(M)   71

    Max bending angle(degree)  3.8

    Max tile angle(%)  6

    ========================================================

    Forged drill pipe

    Size(mm) φ73*10*3000

    Steel stage S135

    Style Intergral

    Thread type NC26

    Pipe outer diameter(inch/mm) 2.875/73

    Wall thickness(inch/mm)  0.355/9

    Connection outer diameter(inch/mm) 3.45/88

    Rods effective length(ft/mm) 9.844/3000

    Weight(kg)  56

    Torque(N.m)  16000

    Minimum radius of curvature(M)  62

    Angle bending length(M)  97

    Max bending angle(degree)  2.8

    Max tile angle(%)  5

    ===========================================================
