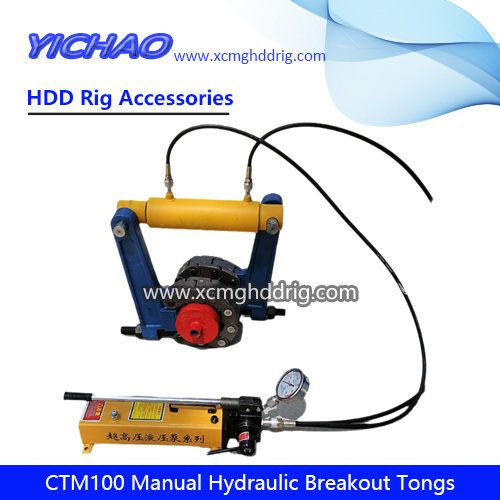

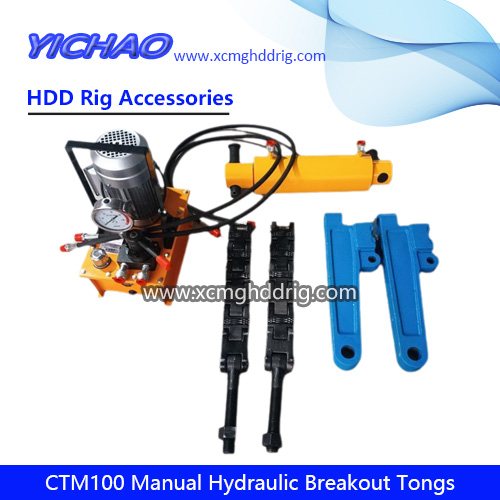

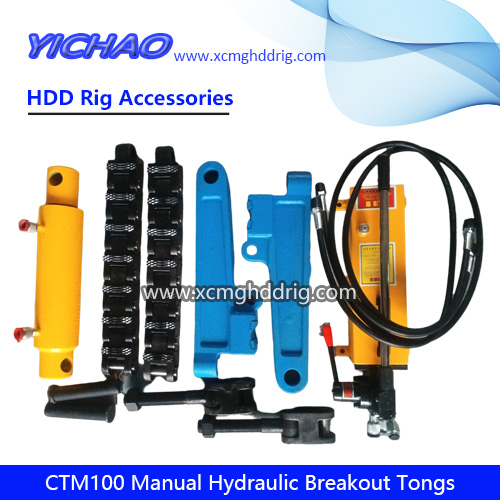

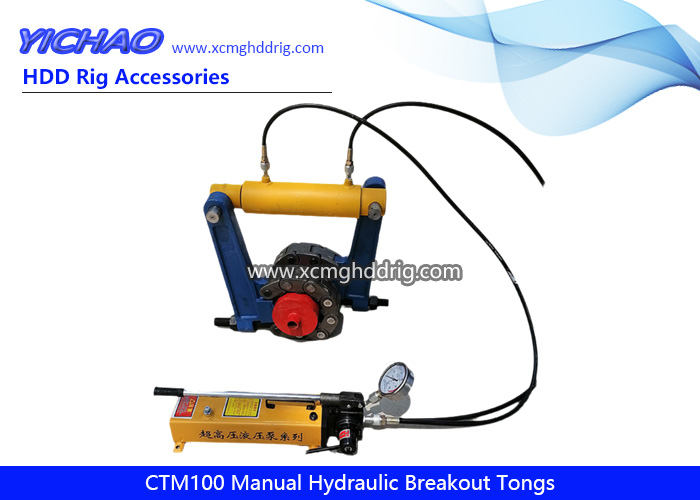

CTM100 Portable HDD Drill Pipe/Rods Manual Hydraulic Wrench Kit Breakout Tongs
SCT100 Manual Hydraulic Breakout Tongs Parameters:
1. The chain clamp holding diameter: 25.4 x (number of chain links – 0.5) mm
2. Maximum torque for loading and unloading shackles: 100 kN.m
3. Basic configuration clamping diameter: 70 – 200 mm
4. If the clamping diameter increases, just add more links.
5. Chain link weight: 2.5KG per link
6. Weight of the handle: 23KG per piece.
7. Dimensions of the pliers handle: 560x180x80mm
8. The maximum pressure of the hand pump is 63 MPa.
9. Weight of hand pump: 15KG
10. Hand pump oil tank capacity: 3L
11. Hand pump dimensions: 180x200x650mm
12. Maximum thrust of the oil cylinder: 300 kN
13. Maximum pressure of the oil cylinder: 63 MPa
14. Cylinder stroke: 200mm
15. Weight of the oil cylinder: 28KG
16. Cylinder dimensions: 105 x 180 x 540 mm
17. Oil pipe length: 2000mm x 2
18. Working dimensions of the chain wrench: 750x600x300mm
