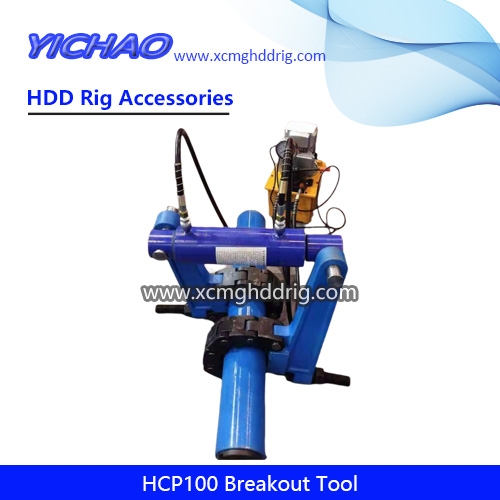

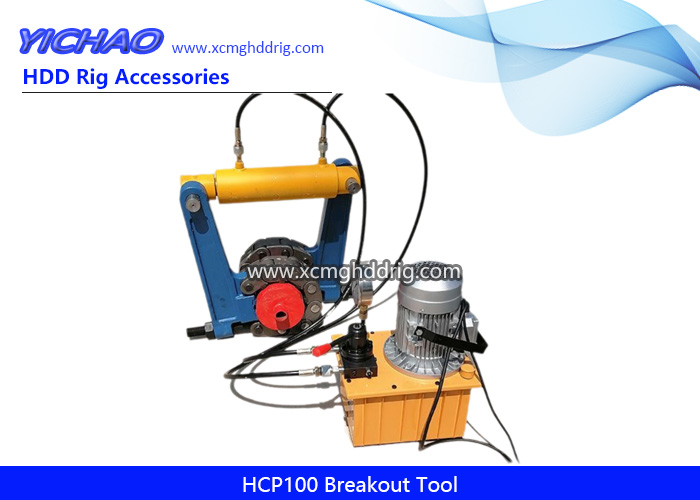

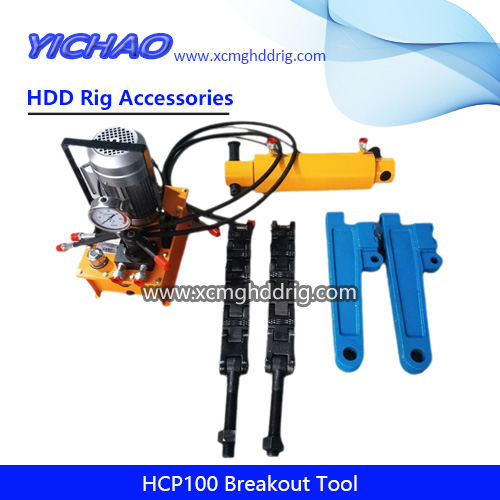

HCP100 Electric Hydraulic Chain Tong Wrench Kit Drilling Rig/Rods Breakout Tool
HCP100 Electric Hydraulic Chain Tong Main Technical Data
1. Chain tong clamping diameter: 25.4 x (number of chain links – 0.5) mm
2. Maximum shackle and unshackle torque: 100KN.M
3. Clamping diameter: 70-200mm, (with the addition of a chain for clamping larger diameters)
4. Link weight: 2.5KG/link
5. Weight of pliers handle: 23KG/handle,
6. Overall dimensions of the pliers handle: 560x180x80mm
7. Maximum pressure of electric hydraulic pump: 63MPa
8. Weight of hydraulic pump: 30KG
9. Electric pump oil tank capacity: 16L
10. Power supply/power: 220 (380V)/1500W (750W)
11. Maximum thrust of oil cylinder: 300KN
12. Maximum pressure of oil cylinder: 63MPa
13. Cylinder stroke: 200mm
14. Weight of oil cylinder: 28KG
15. Oil cylinder dimensions: 105x180x540mm
16. Oil tube length: 2000mm x 2
17. Working dimensions of chain tongs: 750x600x300mm
