HDD Drill Pipe Hydraulic Breakout Tong Electric Drill Rod Shackler
HDT200 hydraulic Shackler is mainly composed of the following components: a base frame, three clamping cylinders to form a backup tong, three clamping cylinders and a torque cylinder to form a power tong, an electric motor, a high-pressure plunger pump, oil pipes and quick connectors And so on to form the hydraulic system. Applied to quick release of drill pipe for horizontal directional drilling.
Main Technical Parameters
| Max clamp rods(thread) dia | 10inch |
| Main cylinder clamp force | 500KN |
| Back cylinder clamp force | 500KN |
| Torque cylinder max force | 450KN |
| Breakout torque | 200KN.m |
| Pump station: | 380V,7.5kw |
| Flow | 37L/min |
| Pressure | 20MPa |
| Weight | 1500kg |

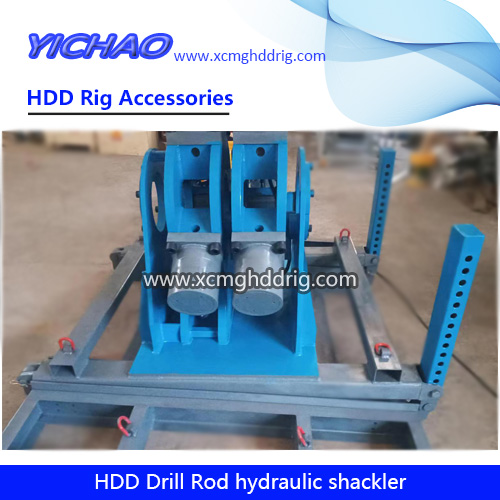

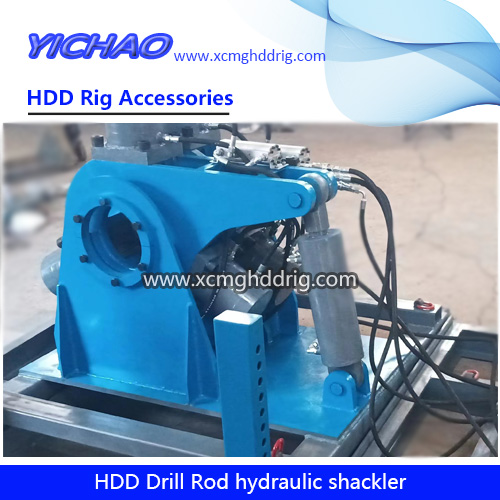

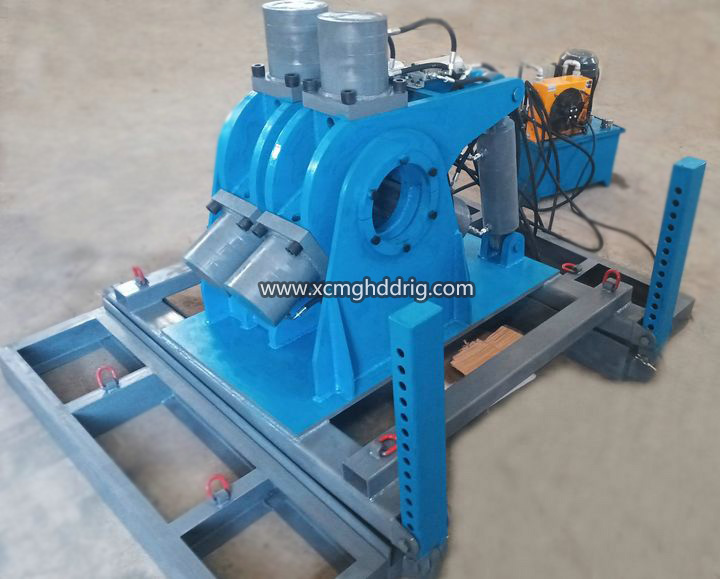

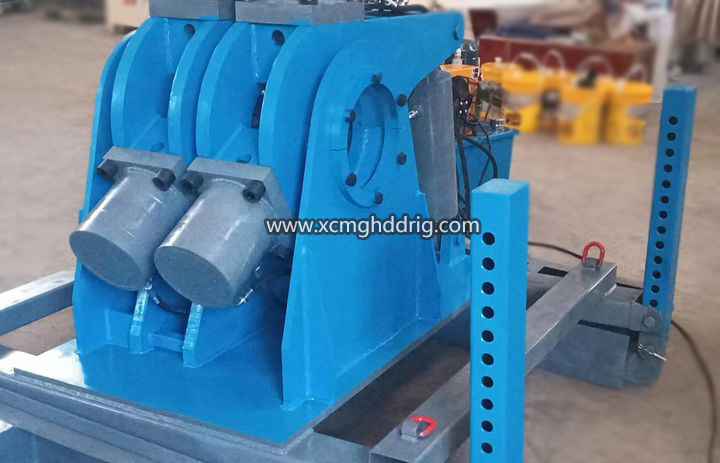

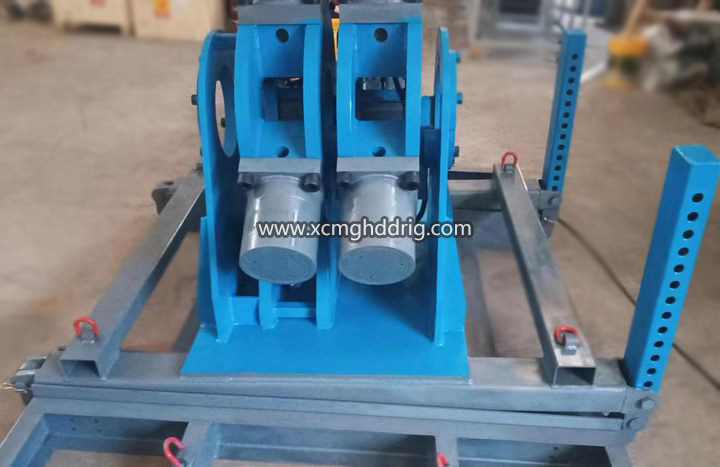

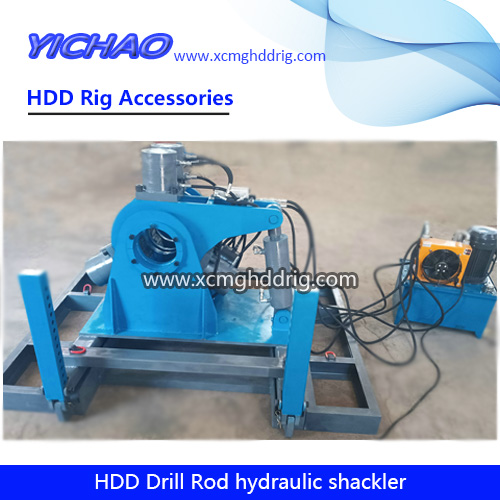

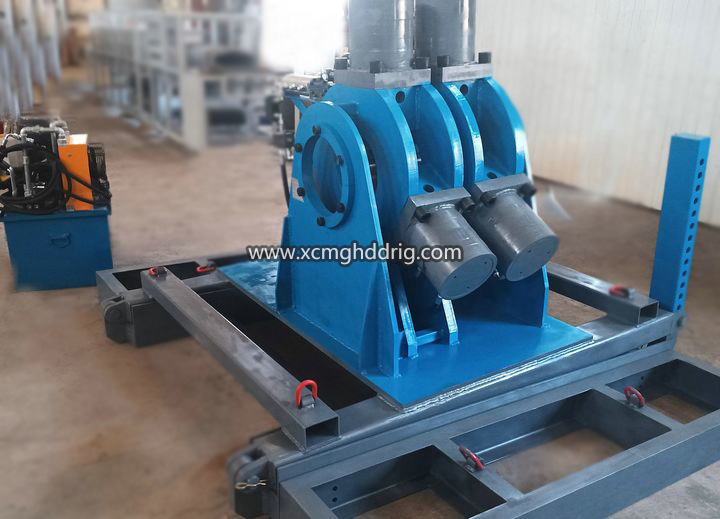

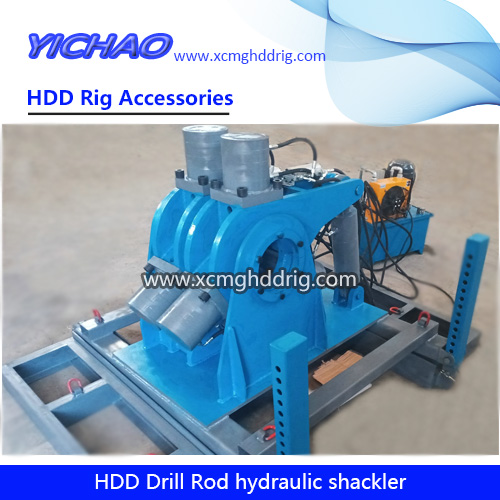

Product Photos
