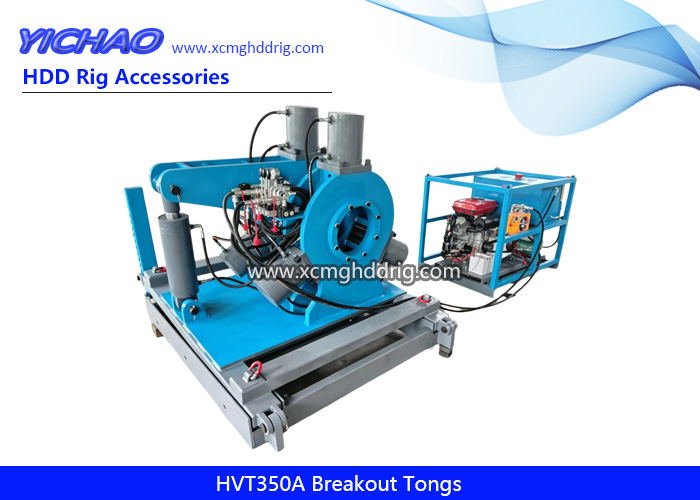

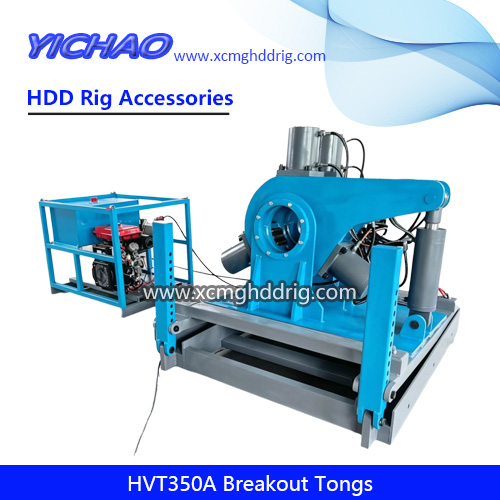

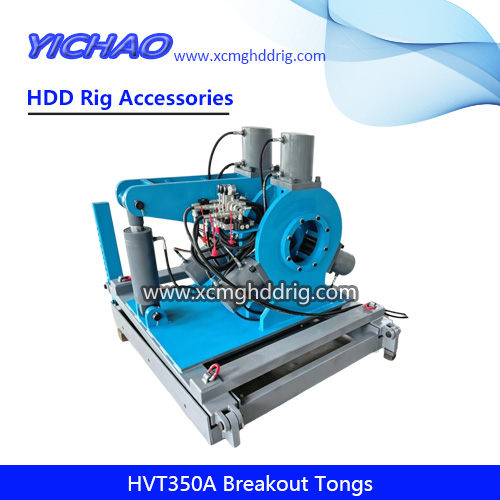

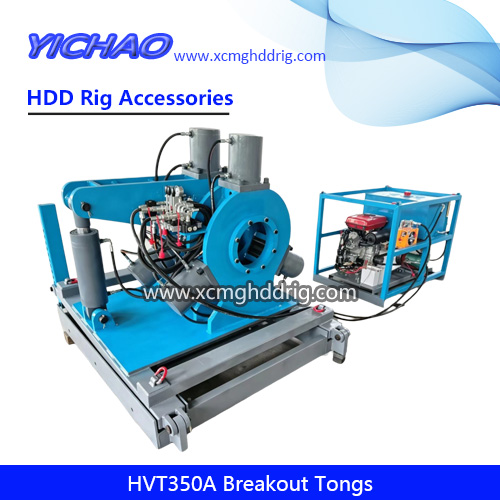

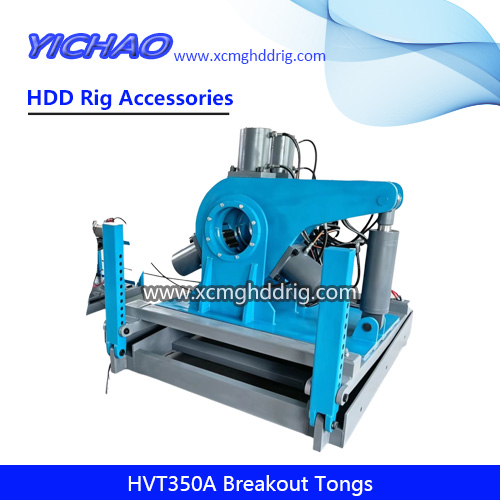

HVT350A Breakout Tong Horizontal Drill Pipe/Rods Hydraulic Shackle Tool
HVT350A Hydraulic Breakout Tong,Drill Pipe/Rods Shackle System for Horizontal Directional Drilling.
HVT350A Main Technical Parameters
1. Through hole: 13 inches
2. Diameter of clamping tube: 6~12in
3. Suitable drill pipes: 5in; 5 1/2in; 6 5/8in; 7 5/8in
4. Shackle torque: 350KN.m
5. Tightening torque: 240KN.m
6. Inclination angle: 5°~15°
7. Spacer between support heads: 13 inches
8. Main clamping cylinder: 500KN
9. Rear clamping cylinder: 500KN
10. Torque cylinder: 400KN
11. Diesel engine pump station: 20HP
12. Pump flow rate: 35L/min (air-cooled)
13. Pressure: 30MPa
14. Fuel tank: 150L
15. Weight: approximately 3000kg
16. Dimensions: 2300x2000x1800mm
