HDD Drill Rigs Use Hydraulic Release Tongs Shackle Trolley for XZ2000 XZ2200 XZ2860 XZ3000 XZ5000 XZ5060 XZ6600 XZ13600 Horizontal Directional Drilling Machine

Hydraulic shackle tongs developed for drilling rigs over 200 tons
XCMG XZ2000 XZ2200 XZ2860 XZ3000 XZ5000 XZ5060 XZ6600 XZ13600
Multi-directional shackle, easy to operate, practical and stable.

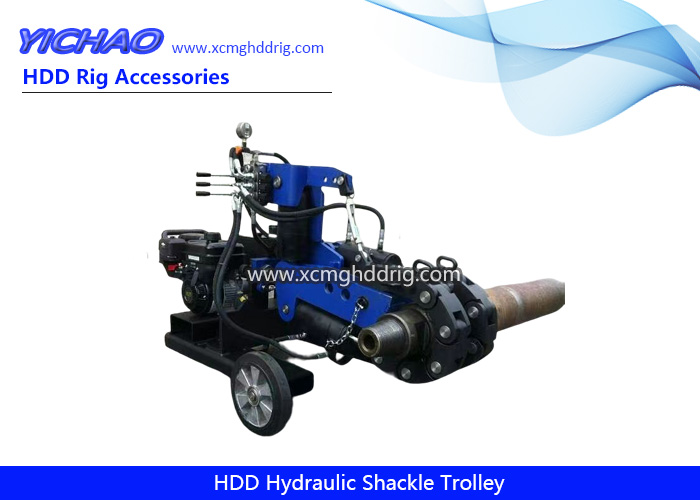

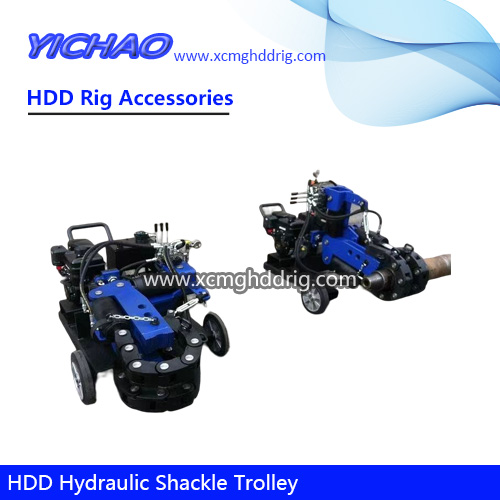

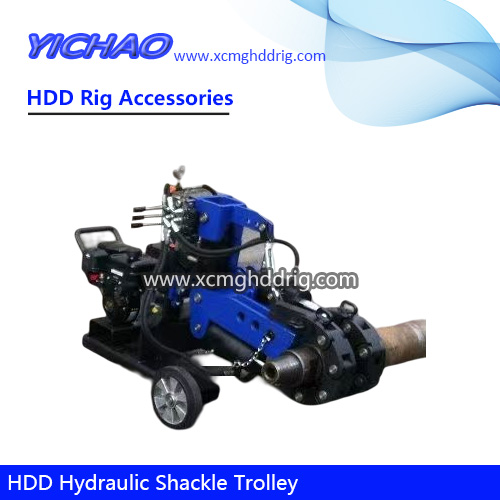

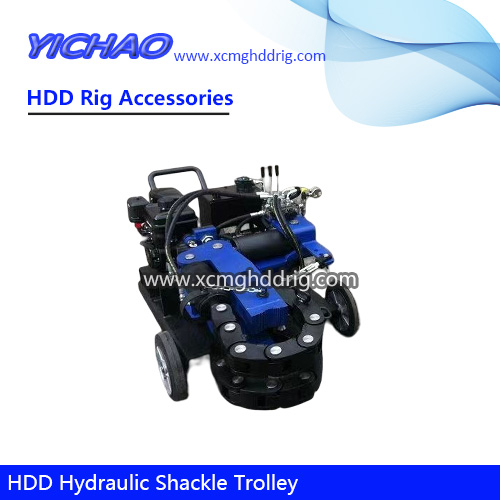

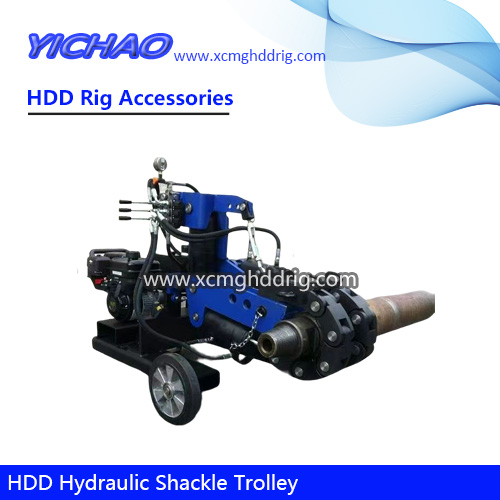

60-300MM large clamping range, high torque hydraulic shackle trolley, suitable for non-excavation horizontal directional drilling rig, drilling machinery, oil well drilling rig shackle. It is designed for the difficult shackle of drill pipe, practical and easy to operate.
Main performance parameters,
1. Applicable drilling tool diameter, 80-200MM
2. Chain links, 8 sections X2
3. Hydraulic pump flow rate, 10-15L/min
4. Working pressure, 25-31.5MP
5. Motor power, 2KW
6. Three-phase power supply: 380V
7. Gasoline engine, 5HP
8. Shackle torque, 80KN.m
9. Weight, 500Kg
