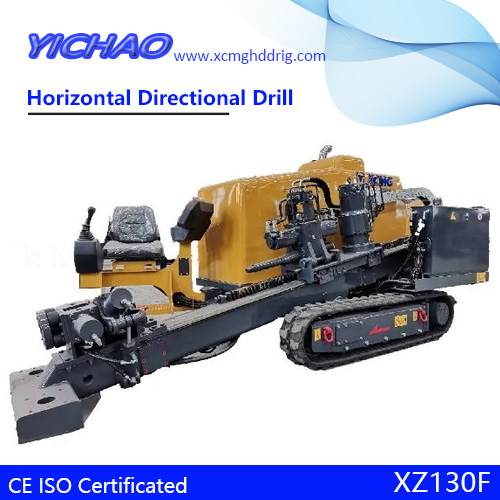

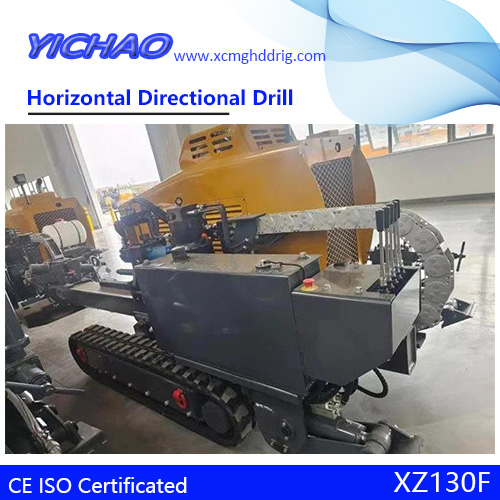

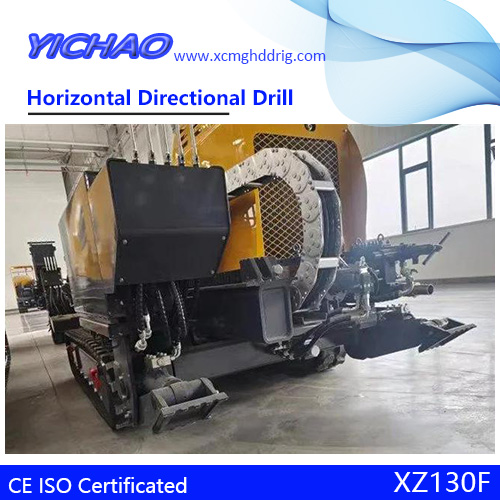

XCMG XZ130F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

XCMG XZ130F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
  • Enquiry Now!

    Product Model:XZ130F Horizontal Directional Drill (HDD)
    Manufacturer:XCMG Foundation Construction Machinery Group Co.; Ltd. XZ130F
    XZ130F HDD structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, running system, and the main components are made of domestic first-class brand products, good performance, good reliability.

    1.Features Introduction

    1.Hydraulic pilot control, with comfortable handling and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the whole hydraulic system.
    2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive
    operational. Carriage floating, patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
    3.High-speed sliding systems, variable motor to achieve high and low carriage sliding
    change, increasing the ability to adapt the drilling rig working conditions, improve the
    efficiency of the drilling rig construction
    4.Stable chassis support, using the classic H-beam structure, high quality rubber track, provide a strong guarantee for the stability of the whole construction. \
    5.Machine with small inclination angle and low output shaft of carriage meet with
    construction requirements ofsmall angle and short distance.

    2.Technology Introduction

    1.Hydraulic System

    Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most
    important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability.
    Hydraulic system pressure 21MPa;
    Fuel tank volume 140L;

    2.Engine System

    Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet China IV
    emission standard.
    Engine type B3.9CS4-110C
    Rated power 81kW
    Rated speed 2200 r/min
    Maximum engine torque 480N·m /(1600r/min)
    Emission standards China IV


    XZ130F use classic H-beam structure, high quality rubber track, site adaptability, high reliability, walking gear, stable performance, walking speed can reach 2.1km / h.


    The drilling rig completed by rack and pinion sliding action, carriage floating device can
    effectively protect the drill thread, variable-speed motor to achieve sliding; equipped with φ52/60×1800 drill pipes.
    Max Thrusting /pulling force 135kN
    Max. Thrusting /pulling speed m/min
    Max spindle torque 3200N·m
    Max. Rotation speed 230r/min

    5.Mud Systerm

    100L mud pump system according to the construction, to provide powerful construction, large flow, ensure the smooth construction.
    Max. Mud pump flow 100L/min
    Max. Mud pump pressure 40bar

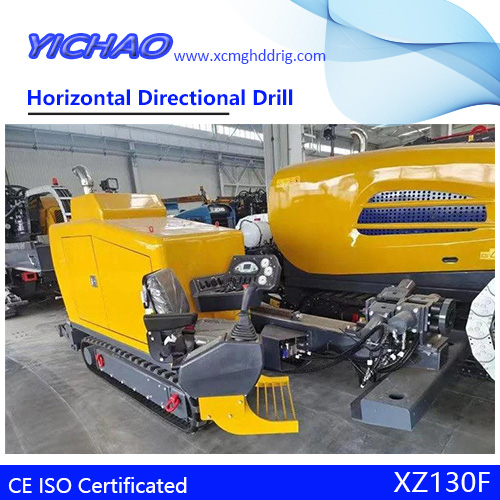

    Collaboration with professional bodies, Cab, console ergonomics analysis and research, fully considered during the operation operator comfort and instrument layout is reasonable.

    7.Pipe Loader(Optional)

    Machine can option automatic full-automatic pipe loader, to achieve handling drill
    automation. Optional Full-automatic pipeloader, Drilling box can accommodate 48 piece of φ52/60×1800 drill pipes, this system can add pipe capacity for long distance construction Efficient automation construction, reduce construction costs and labor intensity.
    Note:This Full-automatic pipeloader use φ52/60 drill pipes!


    Main machine with normal anchor, also can option automatic anchor help push and drill, highly automated and great power, reduce labor intensity.

    9.Drill and Drilling Tools

    Name Type Form Specification Remarks
    Drill Monolithic 52/60mm × 1.8m XCMG
    Drilling Tools Reamer Squeezed style 200mm XCMG
    Runner type 200mm
    Accessories Drill guide 52/60
    Starting lever 52/60 XCMG
    Drilling Tools Accessories Guide plate 52/60
    Torques 52/60
    L-nut 52/60
    Male slider 52/60
    Female slider 52/60
    Splitter 12t
    Connect 52/60
    Mud system Mud Mixing 2m3 Shanghai
    Instrument Guide 领航者E XCMG
    Detector 8100 Radiodetection

    3.Main technical parameters

    Item Parameter
    Engine Manufacturers Dongfeng Cummins
    Model B3.9CS4- 110C
    Rated Power 81kW / 2200 r/min
    Thrust-Pull Type Pinion and rack drive
    Max thrust-pull force(kN) 135
    Max thrust-pull speed(m/min) 40
    Rotation Type Double motor
    Torque(N ·m) 3200
    Max spindle speed(r/min) 230
    Pipe Diameter × Length(mm×mm) Φ52/60× 1800
    Mud pump Max Flow rate(L/min) 100
    Max pressure(MPa) 4
    Weight / 5000kg
    Dimension L× W× H 4200 mm×1680 mm×2170mm

    4.Main part configuration

    Name Manufacture factory
    Engine Dongfeng Cummins
    Main Pump Permco
    Rotary Motor Eaton
    Thrust-pull Reduction Box  XCMG
    Hand Shank Eaton
     Hydraulic tube XCMG
    Hydraulic cylinders XCMG
    Track XCMG

    5.Transport Program

    The machine transportation dimension 4200× 1680×2170mm
    Shiping weight(free of drill and drilling tools) 5.0t

    6.Accompanied Attached Documents

    XZ130F HDD machine start when accompanied by the packing list, include the following
    technical documents
    Product Certificate
    Instruction Manual
    Operation and Maintenance Manual of Engine
    Quality Assurance Manual of Engine
    Mud Pump Instruction Manual
    Packing List (including accompanied spare details, accompanied tools list)
