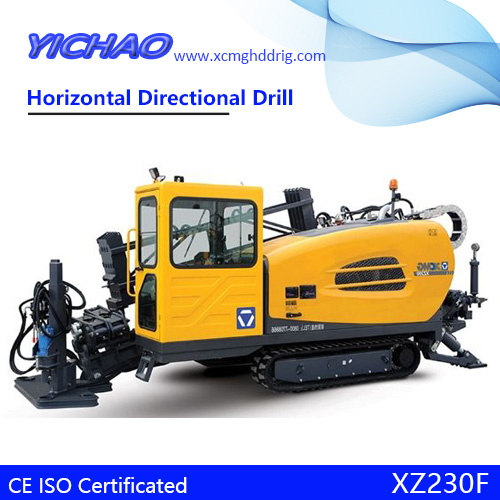

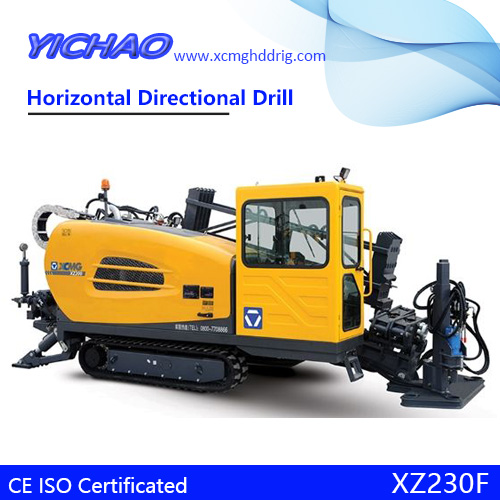

XCMG XZ230F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

XCMG XZ230F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
  • Enquiry Now!

    Product Model:XZ230F Horizontal Directional Drill(HDD)
    Manufacturer:XCMG Foundation Construction Machinery Group Co.; Ltd.
    XZ230F HDD is the new products which set advanced technology, user experience, efficiency of construction as a whole, and pay more attention to construction requirements, operation habit, system energy saving, and could be widely used in urban pipeline construction such as electric power, communication, cable TV and so on.

    1.Features Introduction

    1.The height of the whole machine´s entry point is low, and the adjustment range of the
    drill frame angle large enlarged: 10~22 °, owing good adaptable ability;
    2.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system;
    3.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. The floating technology of drilling head can greatly protect the drill pipe thread, the service life of the drill pipe 30% increase.
    4.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, instantaneous increase ,increasing the ability to adapt the machine working
    conditions, promote construction efficiency.
    5.Mud flow can be operated in cab, convenient and swift.
    6.The whole machine adopts protection technology such as seat switch, logic interlock, proportional wire-controlled walking, electrical shock protection and so on, meet the
    CE safety certification requirements.
    7.Sliding, rotating system multiple output, quick clamping speed ofvice,system energy
    saving, high efficiency of construction, efficiency increased by 30%.
    8.Support the diverse needs of customers, the machine can be increased with cab, air conditioner, cold start, mud antifreeze, automatic loading rod, electrical shock protection automatic thread oil daub etc, reduce the working strength, improve the construction efficiency.

    2.Drill and Drilling Tools

    Other accessories of XZ230F horizontal directional drill rig are configured as follows:

    Name Type Form Specification Remarks
    Drill Monolithic 60mm×3m XCMG
    Welded type
    Drilling Tools Reamer Squeezed style 200mm
    300mm
    400mm
    500mm XCMG
    600mm
    700mm
    Runner type 200mm
    300mm
    400mm
    500mm
    600mm
    700mm
    Accessories Drill guide 60
    Starting lever 60
    Drilling Tools Accessories Guide plate 60
    Torques 60
    L-nut 60
    Male slider 60
    Female slider 60
    Splitter 20t
    Connect 60
    Mud system Mud Mixing System 3立方 XCMG
    Instrument Guide Instrument Navigator E XCMG
    Detector 8100 Radiodetection

    3.Main Technical Parameters

    Item Parameter
    Engine Manufacturers Dongfeng Cummins
    Model B5.9CS4 160C
    Rated Power 118 kW / 2200 r/min
    Thrust-Pull Type Pinion and rack drive
    Max thrust-pull forcekN 230/270
    Max thrust-pull speedm/min 55
    Rotation Type Two motor
    TorqueN ·m 7000
    Max spindle speedr/min 175
    Pipe Diameter × Lengthmm×mm Φ60×3000
    Mud pump Max Flow rateL/min 250
    Max pressureMPa 8
    Weight / 9000kg

    4.Main Part Configuration

    Name Manufacture factory
    Engine Dongfeng Cummins
    Rotation Pump Permco
    Thrust-Pull Pump Permco
    Auxiliary Pump Permco
    Rotary Motor Eaton
    Thrust-Pull Motor Liyuan
    Reduction Box XCMG
    Hand Shank XCMG
    Walking speed reducer

    5.Transport Program

    The machine transportation dimension 6100×2200×2300mm
    Shipping weight (free of drill and drilling tools) 9.0t
    Handling drill equipment (free of drill and drilling tools) 10.5t

    6.Accompanied Attached Documents

    XZ230F HDD machine start when accompanied by the packing list, include the following technical documents:
    Product Certificate
    Product Manual
    Engine Specification
    Engine Warranty
    Mud Pump Instruction Manual
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)


    Related Items
