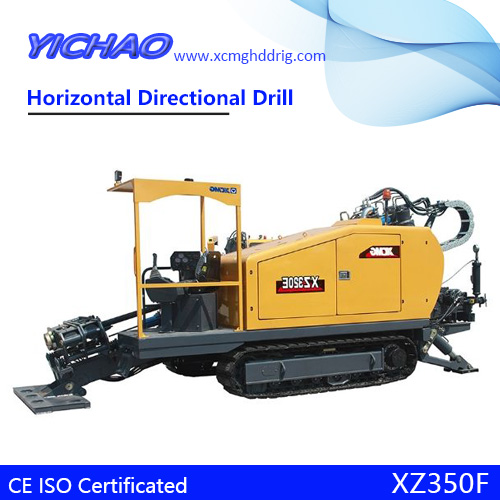

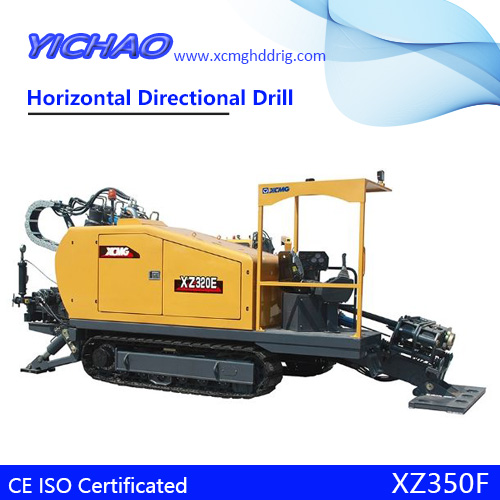

XCMG XZ350F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

XCMG XZ350F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
  • Enquiry Now!

    Product Model:XZ350F Horizontal Directional Drill(HDD)
    Manufacturer:XCMG Foundation Construction Machinery Group Co.; Ltd.
    XZ350F HDD structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, travel system, and the main components are made of leading domestic and foreign products, good performance, good

    1.Features Introduction

    1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation,first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
    2.Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
    3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage,increasing the ability to adapt the machine working conditions, promote construction efficiency.
    4.Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes,ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
    5.Support the diverse needs of customers, the machine can option configuration with the
    automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.

    2.Drill and Drilling Tools(Optional)

    Main machine with Drill and Drilling Tools have Good performance and stable
    quality to make sure construction successfully. Other accessories of XZ350F horizontal
    directional drill rig are configured as follows

    Name Type Form Specification Remarks
    Drill Monolithic 73mm×3m
    Welded type XCMG
    Drilling Tools Reamer Squeezed style 300mm
    700mm XCMG
    Drilling Tools Reamer Runner type 300mm
    900mm 徐工
    Pilot drill bit 73 XCMG
    Accessories starting rod 73
    guide plate 73
    Torque sleeve 73
    Left hand nut 73
    Gong Latou 73
    Female slider 73
    Splitter 32T
    Short 73
    Mud system Mud mixing system 2立方
    Mud Mixing System 3立方
    F5 US DCI
    Instrument Guide Instrument SE
    领航者E XCMG
    Detector 8000 英国雷迪

    3.Main technical parameters

    Item Parameter
    Engine China IV Model B5.9CS4-210C
    Rated Power 154 /2200 kW/r/min
    Thrust-Pull Type Pinion and rack drive
    Max thrust-pull forcekN 360
    Max thrust-pull speedm/min 40
    Rotation Type four motors
    TorqueN ·m 12600
    Max spindle speedr/min 140
    Pipe Diameter × Lengthmm×mm φ73×3000
    Max Flow rateL/min 320
    Mud pump Max pressureMPa 8
    Weight / 10000kg

    4.Main part configuration

    Name Manufacture factory
    Engine Dongfeng Cummins
    Main Pump Permco
    Auxiliary Pump Permco
    Rotary Motor Eaton
    Reduction Box XCMG
    Hand Shank XCMG

    5.Transport Program

    The machine transportation Dimension 6200×2280×2450mm
    Shiping weight(Simple ,Free of Drill and Drilling Tools) 10.0 t
    Shiping weight(Optional Cab ,Pipe Loader ,Free of Drill and Drilling Tools) 11.0t

    6.Accompanied Attached Documents

    XZ350F HDD machine start when accompanied by the packing list, include the following technical documents
    Product Certificate
    Product Manual
    Engine Specification
    Engine Warranty
    Mud Pump Instruction Manual
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
