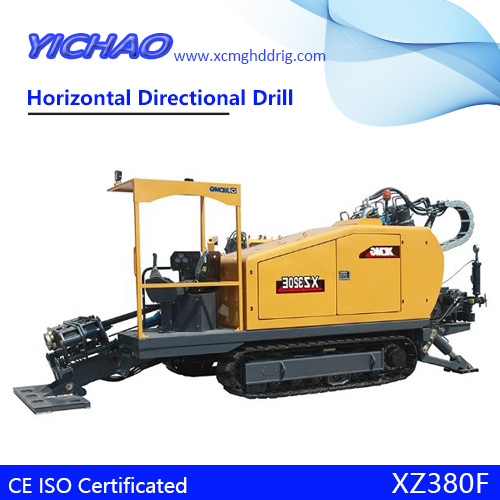

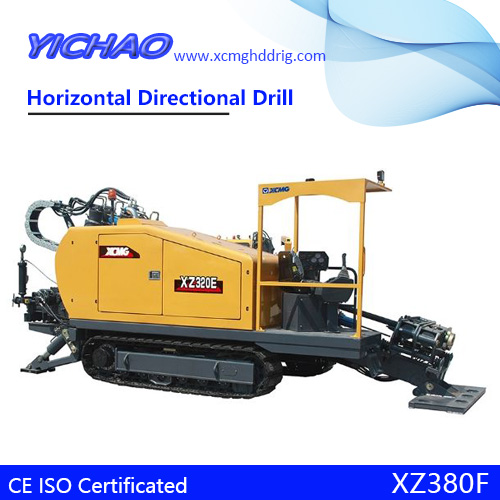

XCMG XZ380F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

XCMG XZ380F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
  • Enquiry Now!

    Product Model:XZ380F Horizontal Directional Drill(HDD)
    Manufacturer:XCMG Foundation Construction Machinery Group Co.; Ltd.
    XZ380F HDD structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, travel system, and the main components are made of leading domestic and foreign products, good performance, good reliability.

    1.Features Introduction

    1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation,first-class brand of hydraulic components to ensure the reliability of the machine hydraulic
    2.Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
    3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage,increasing the ability to adapt the machine working conditions, promote construction efficiency.
    4.Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes (φ73), or 36 piece of drill pipes (φ76/83) ensure one time reached, efficient automation construction, reduce construction costs and labor intensity.
    5.Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices.

    2.Drill and Drilling Tools(Optional)

    XZ380F HDD with Drill and Drilling Tools have good performance and stable quality to make sure construction successfully. Other accessories of XZ380F HDD are configured
    as follows:

    Name Type Form Specification Remarks
    Drill Monolithic 73/76/83mm×3m XCMG
    Welded type
    Drilling Tools Reamer Squeezed style 300mm XCMG
    Reamer Runner type 300mm
    Drill guide 73/76/83
    Starting lever 73/76/83
    Guide plate 73/76/83
    Torques 73/76/83
    L-nut 73/76/83
    Male slider 73/76/83
    Female slider 73/76/83
    Splitter 40t
    Connect 73/76/83
    Mud system Mud Mixing System 2立方
    Instrument Guide Instrument F2 US DCI
    领航者E XCMG
    Detector 8000 RadioDetection

    3.Main Technical Parameters

    Item Parameter
    Engine China IV Model B5.9CS4-210C
    Rated Power 154 /2200 kW/r/min
    Thrust-Pull Type Pinion and Rack drive
    Max thrust-pull force 385 kN
    Max thrust-pull speed 45 m/min
    Rotation Type Four Motor
    Torque 14300 N ·m
    Max spindle speed 135 r/min
    Pipe Diameter × Length φ73/76/83×3000 mm×mm
    Mud pump Max Flow rate 400 L/min
    Max pressure 8 MPa
    Weight / 10500 kg

    4.Main Part Configuration

    Name Manufacture factory
    Engine Dongfeng Cummins
    Main Pump Permco
    Auxiliary Pump Permco
    Rotary Motor Eaton
    Reduction Box XCMG
    Hand Shank XCMG

    5.Transport Program

    The machine transportation Dimension 6400×2280×2450mm
    Shiping weight(Simple ,Free of Drill and Drilling Tools) 10.5t
    Shiping weight(Optional Cab ,Pipe Loader ,Free of Drill and Drilling Tools) 12t

    6.Accompanied Attached Documents

    XZ380F HDD machine start when accompanied by the packing list, include the following technical documents
    Product Certificate
    Product Manual
    Engine Specification
    Engine Warranty
    Mud Pump Instruction Manual
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
