XCMG XZ1000E HDD Horizontal Directional Drilling Rig Machine for Sale

XCMG XZ1000E HDD Horizontal Directional Drilling Rig Machine for Sale
  • Enquiry Now!

    XCMG XZ1000E HDD Horizontal Directional Drilling Rig Machine Technical Specification
    Product Model:XZ1000E HDD Horizontal Directional Drill
    Manufacturer: XCMG Foundation Construction Machinery Co.,LTD.
    XCMG XZ1000E HDD Horizontal Directional Drilling Rig structure adopts crawl chassis, it uses the power saving closed hydraulic system, equipped with electro-hydraulic proportion control, efficient advanced load sensitivity and XCMG’s patent technical. The main technical specifications reach the advanced level in international. The main components of hydraulic system, transmission, electric system and gearbox are made of world first-class brand products, good performance, good reliability.

    1.XZ1000E HDD Features Introduction

    1.Numerical meter display the working torque, push or pull force and so on parametric in working conditions. Electronic sensor has rapid reaction and can show overload immediately. It also endures accuracy and delay of the traditional hydraulic meter’s indication. It solve the matter to depend the operator to calculate the torque and force by the equipment’s switch directive.
    2.Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.
    3.The HDD adopt the patent of rotation tooth. It is easy to achieve in clipping the pipe. It is reliable in clamping.
    4.The HDD’s rotation adopt closed hydraulic system and it’s push or pull adopt load sensitivity technology. The main part of hydraulic and electric and transmission are made of world first-class brand products, good performance, good reliability.
    5.Cab’s 45°rotation enhances comfortable operation.

    2.Technology Introduction

    1.Chassis

    XZ1000E HDD adopts crawl chassis. It can fitted to more kind of ground and has high reliability. The travel gearbox producing by world first-class brand make it possible of good performance, good reliability.

    Distance between wheel’s axis 3335 mm
    Width between two tracks outside 2475 mm
    Width of track 450 mm
    Length between two tracks 2025 mm
    Number of track roller 8×2
    Gradient 30%
    Max travelling speed 1.7km/h
    Ground pressure 69.1kPa
    Weight 24t

    2.Engine

    The powerful engine of XZ1000E HDD has the turbine torque increment characteristic. It meets for the request of Chian Stage II and EU Stage ⅢA.

    Model of engine QSL8.9-C360
    Rated power 264kW
    Max torque of engine 1500N·m /(1500r/min)
    Rated speed of engine 2100 r/min
    Emission of engine China Stage III and EU Stage ⅢA
    Capacity of fuel 425L

    3.Hydraulic System

    XE1000E Rotation adopts the closed hydraulic system. The movements of push or pull adopt load sensitivity technology. World first-class brand’s components can provide good performance and good reliability.
    Rotation System

    Pump H1P-147 ×1
    Pressure 350bar
    Motor A6VM107 ×2
    Gear Box XCMG

    Push or Pull System

    Pump ERR100×1
    Pressure 350bar
    Motor A6VM107 ×6/8
    Gear Box XCMG
    Capacity of Hydraulic oil tank 490L
    Hydraulic oil Caltex HD46(-15℃~40℃,)
    Caltex HDZ46(-30℃~40℃)

    4.Electronic System

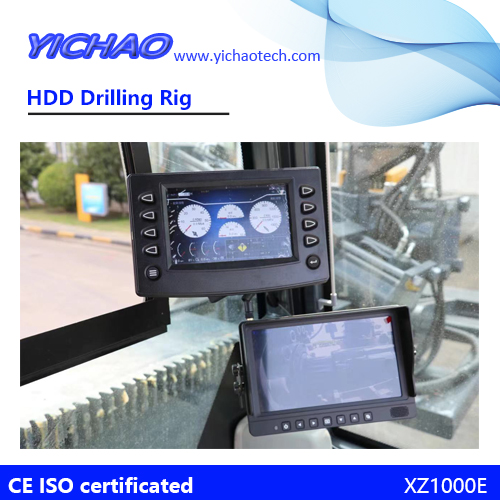

    The HDD adopts intelligent and CAN bus control technology. The meter shows clearly and easy to see.
    The HDD shows the actual torque and push or pull force immediacy in the large and high showing size monitor automatic.
    PLC control technology can detect the engine speed, the temperature of cooling water, the pressure of lubrication, the temperature of hydraulic oil, the pressure or stoppage of filter element, the position of carriage etc. It can also alarm to the operator in wrong condition.
    The HDD travel safety at stepless speed regulation and controlled by wire cable.
    The multi-speed control of rotation and push or pull make HDD be suitable to the complex geology.

    Voltage of electronic DC24V
    Battery 6-QW-120B ×2
    Controller RexrothRC28
    Monitor MURPHY 7 inches
    Handle of rotation C25-K11-L/R
    Switch of sensor Honeywell
    Switch of route Honeywell
    Sensor of temperature Danfoss
    Sensor of pressure Danfoss

    5.Drill Frame

    The entry angel is changed by adopting the link weldment and cylinder. It has the advantage of simple and safety.
    Entry angle adjust by drill frame 10°~18°

    6.Carriage

    Push or pull is executed by rack and pinion. The HDD also use the floating axis to protect the pipe’s thread. The rapid speed is carried out by the variable motor. The speed of carriage and the force of push or pull can be executed steplessly.

    Push/pull force 1010/1350kN
    Max thrust-pull speed 45m/min
    Torque 40500 N·m
    Spindle speed 115r/min
    Distance of carriage moving 7480mm
    Gearbox of rotation XCMG×2
    Gearbox of push or pull XCMG×6/8

    7.Clamp

    The HDD is fitted with the clamp so that the pipe can be gripped tightly. The fixed wise and rotation wise can separate or integrate. It has a good sight of clamp and is good to change the tooth.

    Torque of clamp 110000N·m
    Rotation angle 25°
    Distance of clamp separation 300mm

    8.Loader Crane

    The HDD is assembled XCMG’s 2t loader crane. It was controlled by hand and It operate vey convenience.

    Weight of lift 2t
    Max distance of lift 5.6m
    Max torque of crane 4t·m

    9.Cab

    Cab with anti-noise function and air condition can rotate by cylinder. It is also fitted with light, windscreen wiper, sunshade curtain, damping seat and suit for operation. All these increase comfortable while operating the HDD.

    Width of cab 1000mm
    Length of cab 1800mm
    Air conditioning and refrigeration capacity 4600W
    Air conditioning heating capacity 5000W(Engine coolant above 85℃)

    10.Pipe and Tools (optional)

    Petrol pipe and No-dig pipe is available. water wing backreamer, expander backreamer, compact fluted backreamer or the others special tools is available. The diameter isΦ300mm to Φ1000 mm, the max distance which can deal with is 1000m. The customer should determine what kind of tools, joint, swivel will be used depend on the geology at the operation site.

    Parameter Specification
    Diameter of pipe φ114/φ127mm
    Length of pipe 6000mm
    Joint of pipe API NC46/API NC50

    Note:The force and torque on the pipe can’t reach to max at the same time. Please to obey the rules of the pipe. This can avoid the thread cement of the pipe.

    3.Main Technical Parameters

    Item Parameter
    Engine Manufacturers Cummins
    Model QSL8.9-C360
    Power rating 264 kW/(2100 r/min)
    Thrust-Pull Max pull/thrust force 1010/1350 kN
    Max pull/thrust speed 45m/min
    Rotation Torque 40500N·m
    Max spindle speed 115 r/min
    Pipe Diameter × Length φ114/φ127mm×6m
    Max inclination angle 17°
    Loader Crane Lifting weight 2 t
    Loading capacity 4 t•m
    Travel driving Style Steel crawler self-propelled
    Traveling speed 2.2 km/h
    Mud Pump Max flow rate 950L
    Weight 24t
    Dimension L×W×H 11650×2710×3300

    4.Core Parts Subsidiary

    Core parts Matching manufacturer
    Engine Cummins
    Rotary pump Sauer
    Push pump Sauer
    Rotary Motor XCMG
    Rotary reducer XCMG
    Push Motor XCMG
    Push reducer XCMG
    Controller Rexroth
    Main valve AMCA
    Handle P+G
    Walking reducer XCMG
    Hydraulic cylinders XCMG
    Lorry crane XCMG
    Hydraulic tubing XCMG

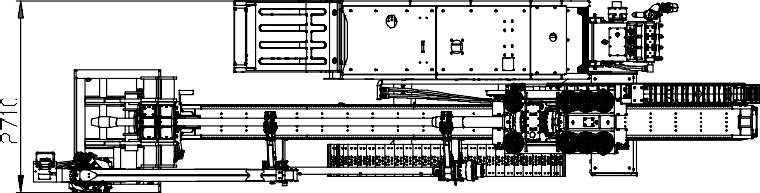

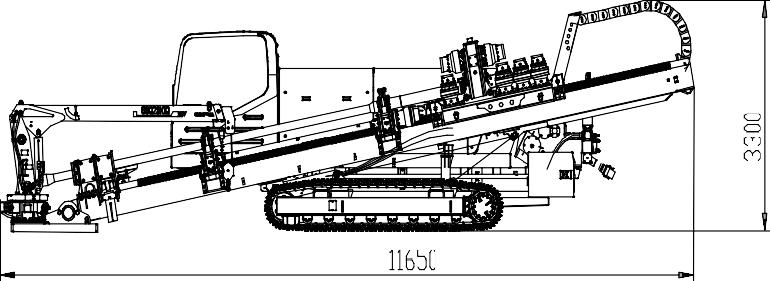

    5.The Machine Appearance and Transportation

    The Machine Appearance and TransportationThe Machine Appearance and TransportationThe Machine Appearance and Transportation

    The machine transportation Dimension 11650×2710×3300mm
    Shiping weight(free of Drill and Drilling Tools) 24t

    6.Accompanied Attached Documents

    XZ1000E HDD machine start when accompanied by the packing list, include the following technical documents:
    Product certificate
    Product Manual
    Engine Specification
    Air Conditioning of Construction Vehicle General Manual
    Operation and Maintenance Manual of Loader Crane
    Mud Pump Instruction Manual
    Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)

    7.XZ1000E HDD Machine Photos

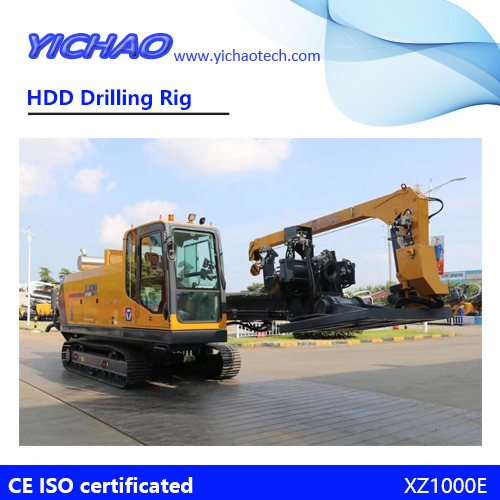

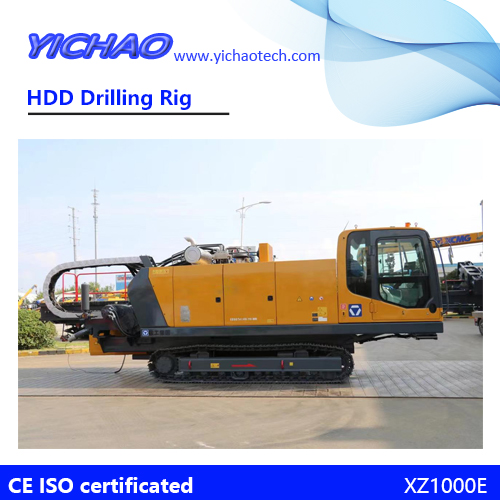

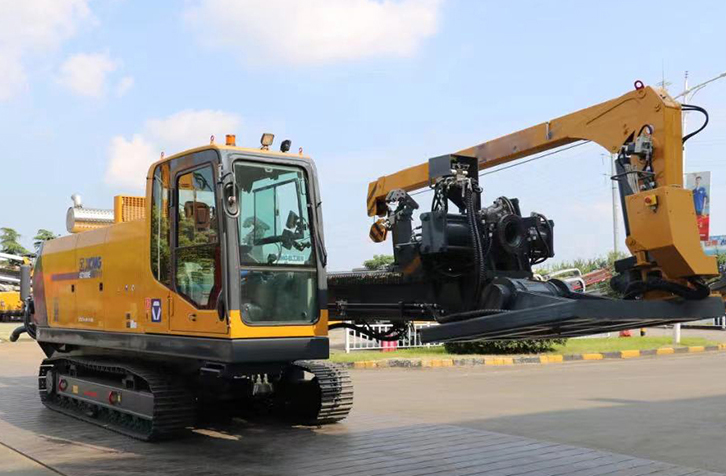

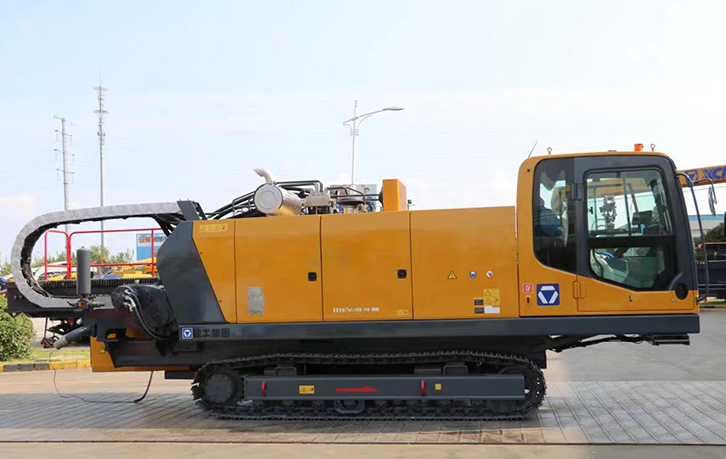

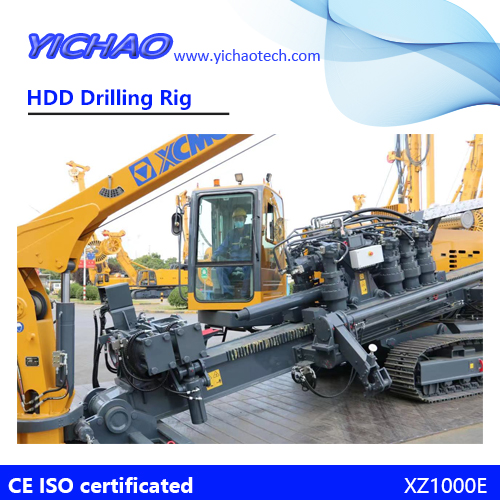

    XCMG XZ1000E HDD Horizontal Directional Drilling Rig Machine
    XCMG XZ1000E HDD Horizontal Directional Drilling Rig Machine
